41201-09340
for Toyota Hilux
| Availability: | |
|---|---|
| Quantity: | |
OE No. | 41201-09340 |
Condition | New |
Size | OEM Standard Size |
Brand Name | Aimiky |
Warranty | 12 Months |
Place of Origin | Zhejiang,China |
Quality | 100% Testing |
Certification | ISO9001 |
Delivery Time | 7-60days |
Single Package Size | 42X35X10cm |
Single Gross Weight | 10kg |
Supply Ability | 1000 Pieces per Week |
Who are we?
We are Wenzhou Ideer Auto Parts. Our company focus on Japnese, korea, Russian and Chinese 4x4 pick up trucks auto parts. Such as Hilux, Navara, Mitsubishi Triton (L200), Ford Ranger, Mazda BT50, Isuzu D-MAX, Kia Bongo Frontier K2700/K3000 Lada, UAZ, GAZ, Hino 300, 500, Isuzu NPR, Mitsubishi Canter Fuso and so on.
Do you have minimum order quantity(MOQ)requirement?
Yes, we have. Different products have different MOQ requirements. For first time order,the MOQ is flexible. We can Negotiate. If we have in stock, any quantity can be done.
What is your delivery lead time?
As usual 30-40days, if the products have in stock once we get the payment can be sent in 5-10 days. For products that need to make molds, the delivery time is generally 60-80 days.
How do you ensure product quality?
As usual we ensure 1 year guarantee for all products since the date of receipt of the order by the customer. We focus on suppling high quality products. If by chance there is a quality problem, we will issue new products for the next order. Of course, you need to provide clear photos and videos of the products that are experiencing quality problems.
How to pay?
Usually, our payment method is 30% deposit, 70% before shipment At the beginning of cooperation. You can use Credit/debit card, Apple Pay, Google Pay, T/T, Paypal. If we are cooperation well,we can negotiate another payment terms for the future business.

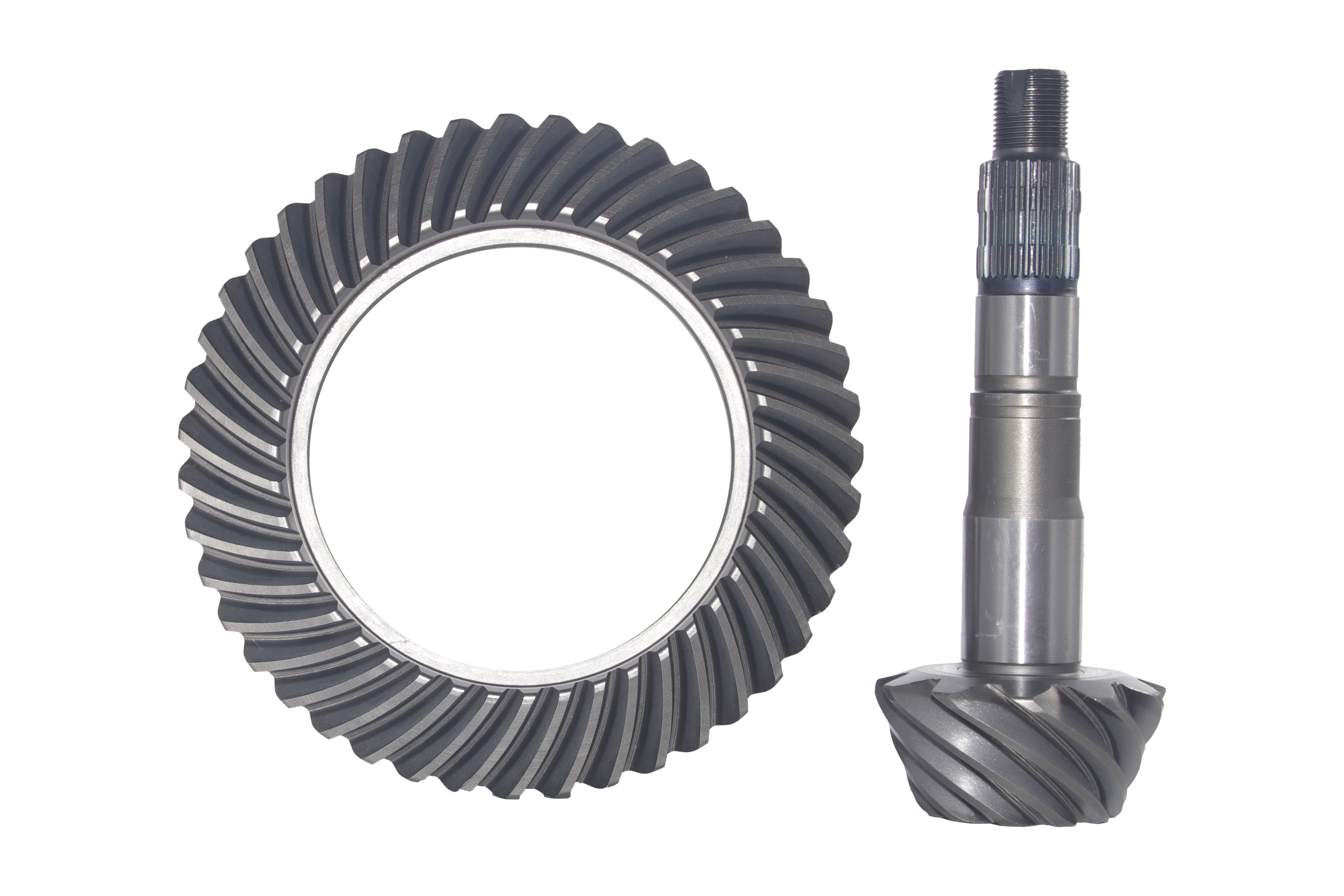

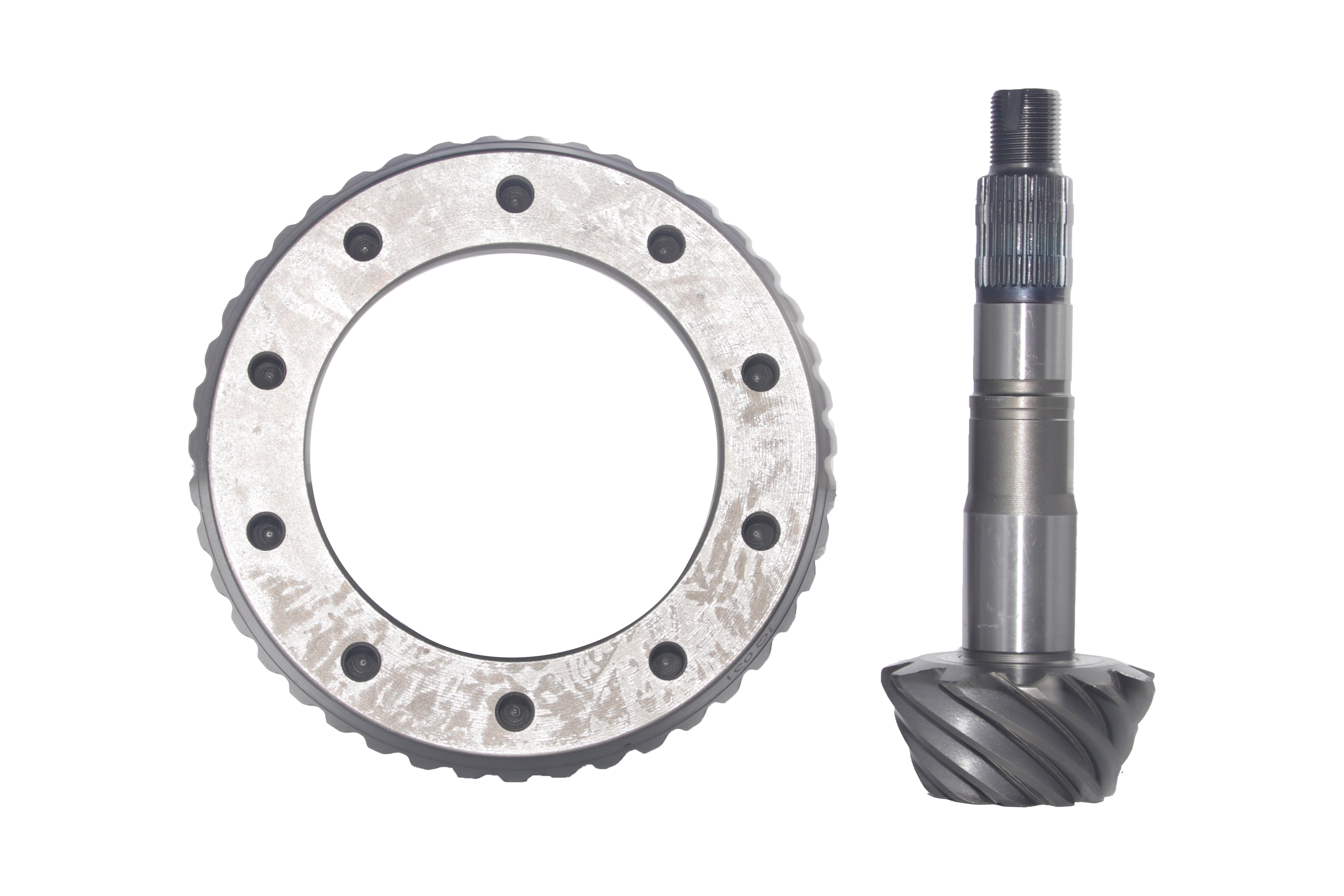

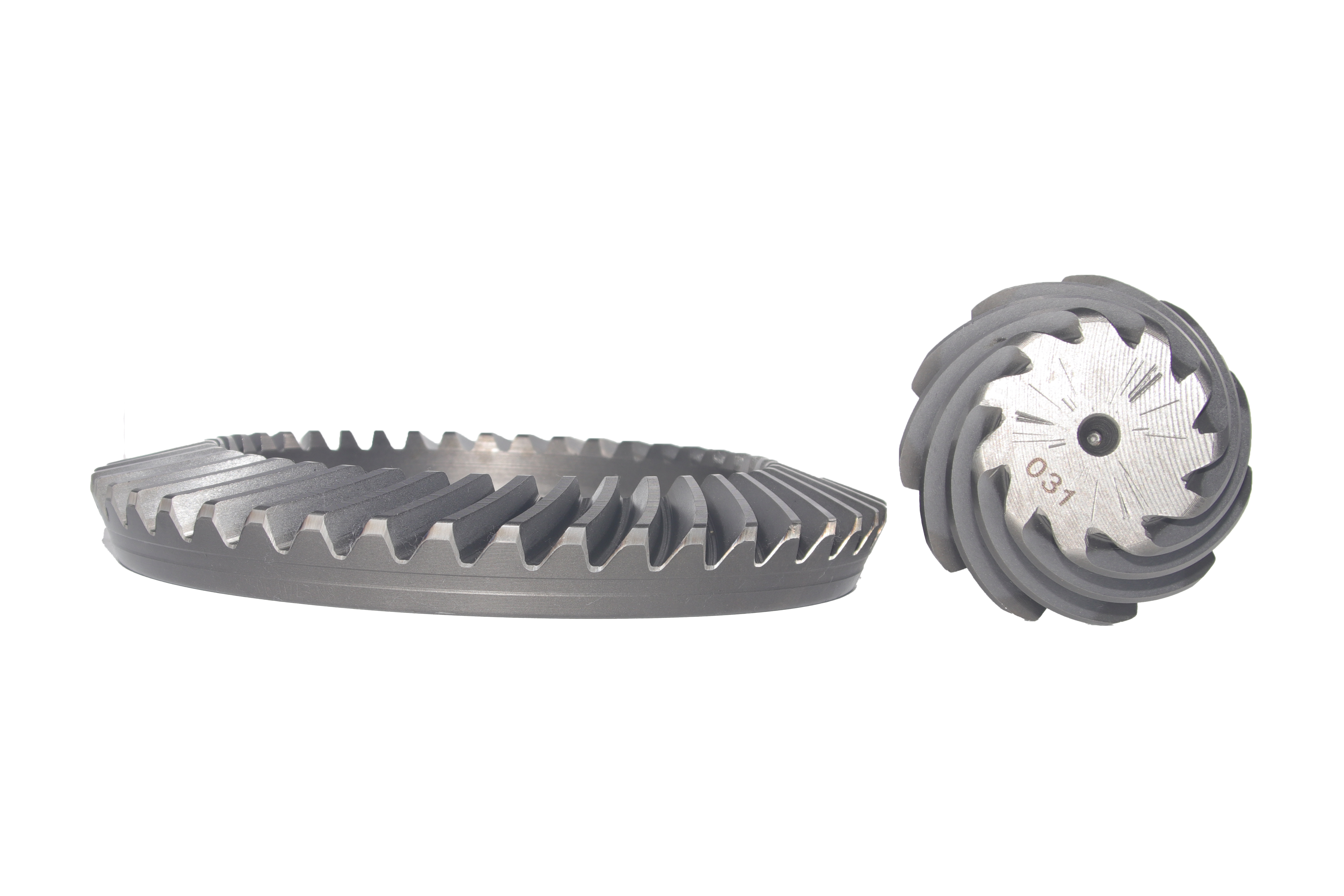

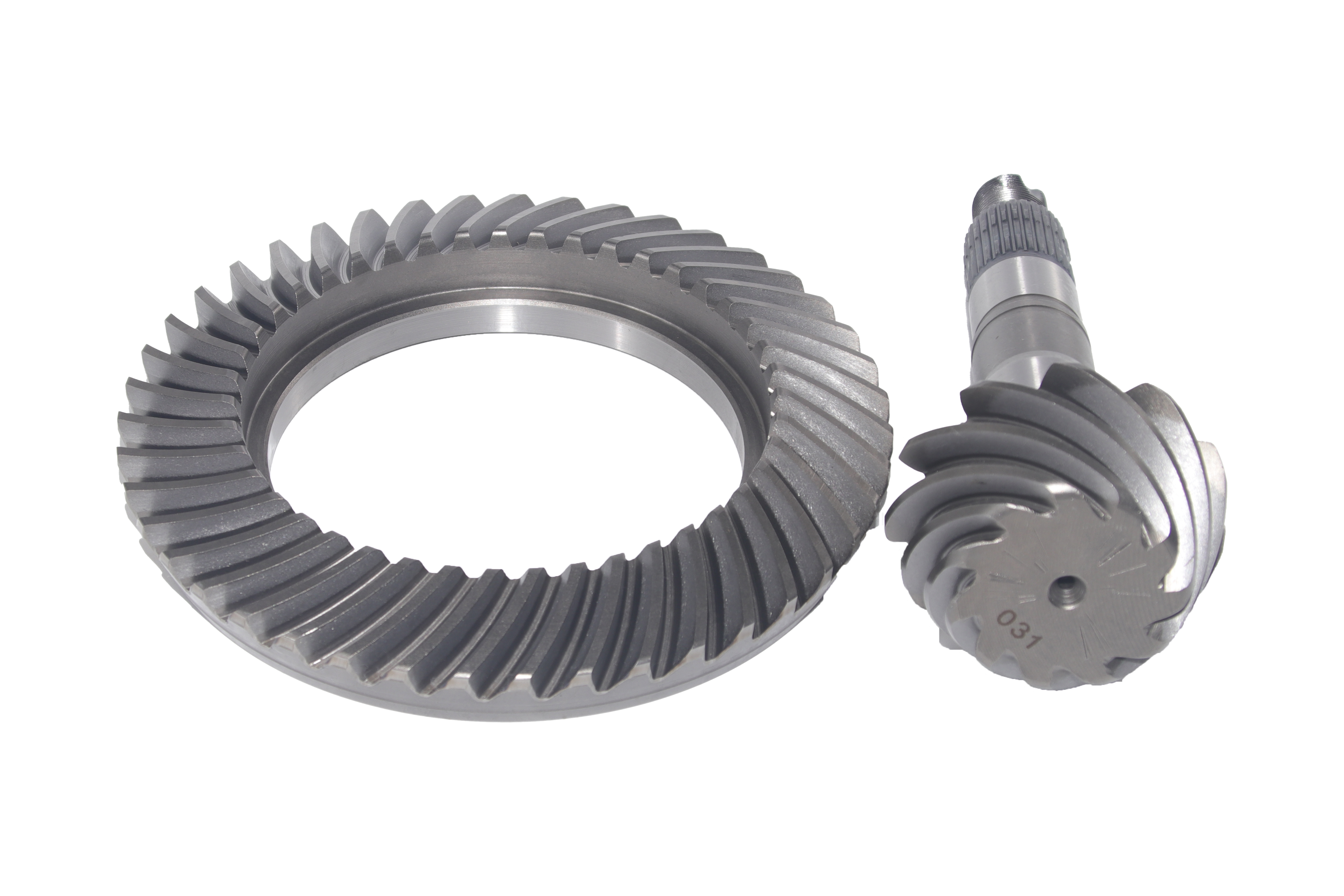

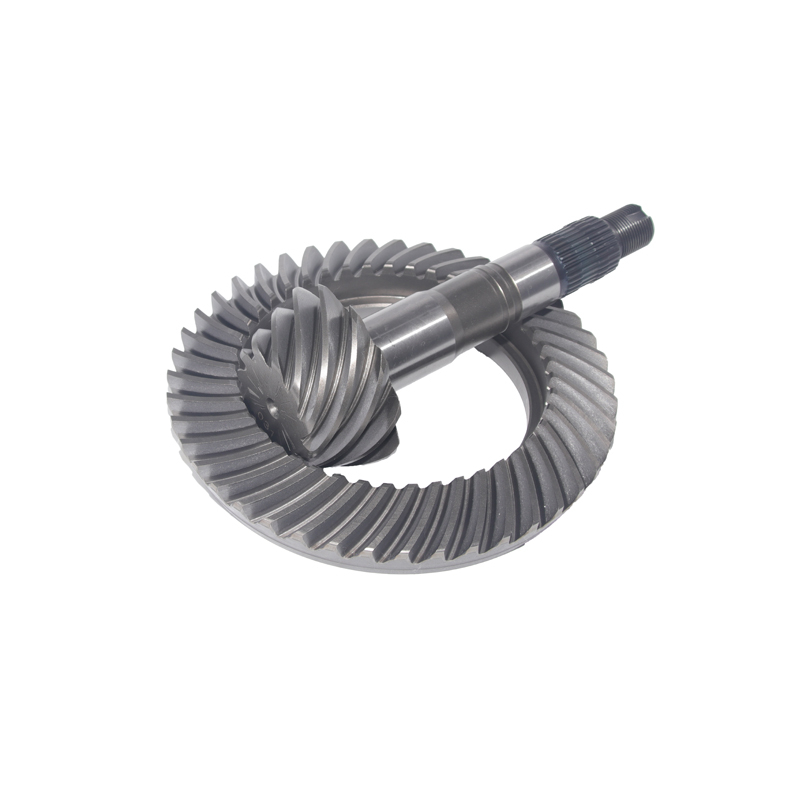

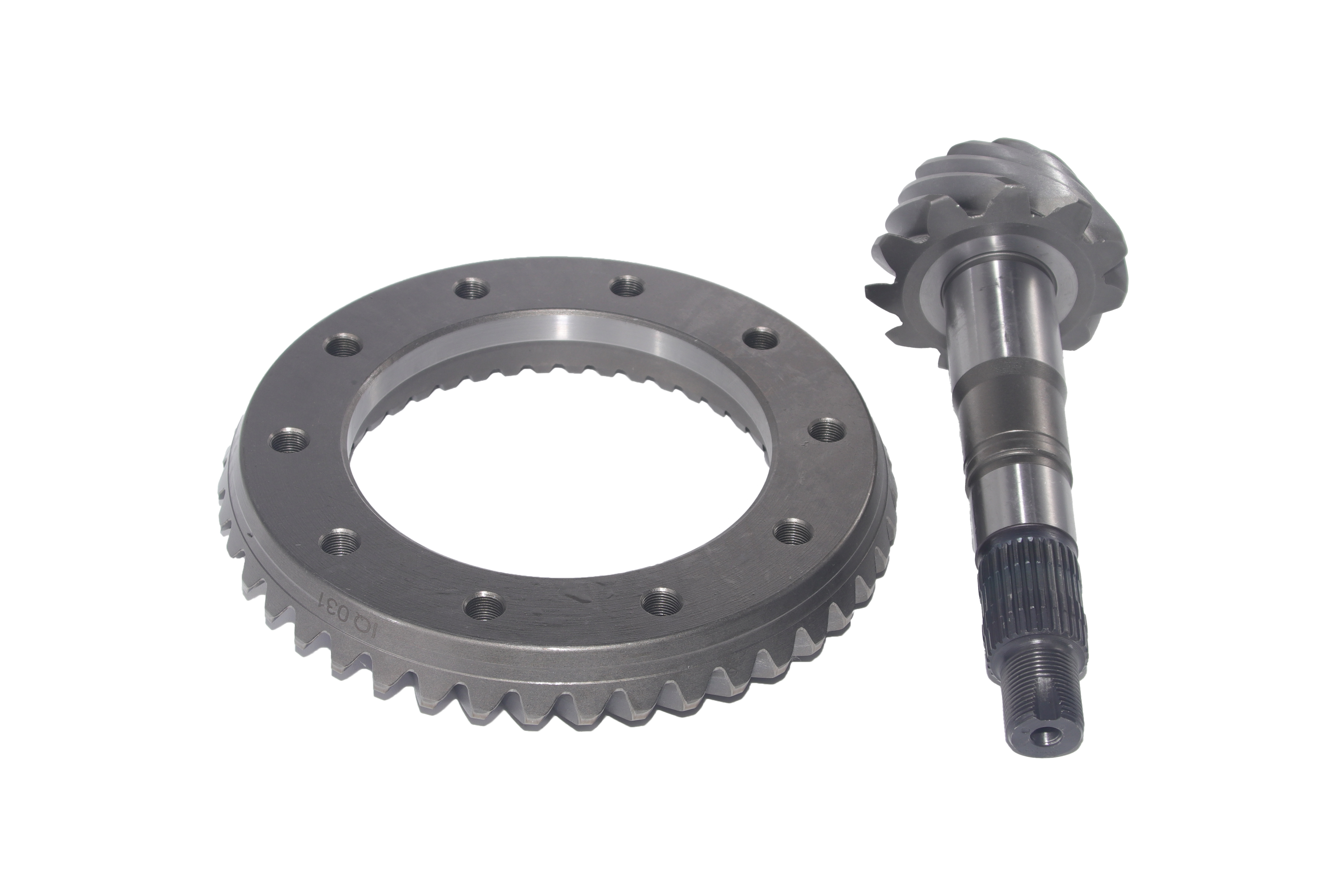

The Crown Wheel & Pinion OE 41201-09340 is a key component of the rear differential and final-drive system for compatible Toyota Hilux applications. The gear set consists of a small pinion gear and a larger crown wheel (ring gear). It transfers torque from the driveshaft to the differential carrier while changing the direction of power transmission and providing the specified final-drive ratio. Toyota parts references identify 41201-09340 as a rear differential final gear kit with a 43:11 tooth configuration and 3.909:1 final-drive ratio.
Core Advantages
1. Designed as a replacement solution for Toyota OE 41201-09340, making product identification easier for Toyota Hilux parts wholesalers and repair specialists.
2. Manufactured from automotive-grade gear steel and processed for strength and wear resistance to withstand repeated drivetrain loads.
3. Precision-machined tooth profiles help maintain consistent gear engagement when the final-drive assembly is correctly installed and adjusted.
Application Scenarios
Toyota Hilux rear differential repair
Toyota Hilux final-drive replacement
Crown wheel and pinion replacement
Rear axle overhaul
Differential rebuilding
4WD drivetrain maintenance
Pickup truck repair
Fleet vehicle maintenance
Used Hilux restoration
Commercial vehicle maintenance
Automotive aftermarket distribution
International wholesale supply
Usage & Installation Guide
Professional installation by a qualified differential or drivetrain technician is strongly recommended.
Step 1 – Verify Compatibility
Before ordering, confirm:
OE number: 41201-09340
Step 2 – Remove the Differential Assembly
Safely secure the vehicle, drain the differential lubricant and remove the rear differential assembly according to the applicable service procedure.
Step 3 – Inspect Related Components
Inspect:
Differential carrier
Pinion bearings
Carrier bearings
Pinion seal
Differential housing
Axle shafts
Ring gear mounting surface
Pinion flange
Related fasteners
Replace worn bearings, seals or damaged components where necessary.
Step 4 – Remove the Original Gear Set
Remove the original crown wheel and pinion using appropriate professional tools.
Step 5 – Install the New Gear Set
Install the 11T pinion and 43T crown wheel as a matched gear set.
Ensure that the ring gear is securely mounted to the differential carrier and that all fasteners are correctly tightened according to the applicable service specifications.
Step 6 – Set Pinion Depth
Adjust the pinion depth according to the specifications of the applicable Toyota rear axle.
Step 7 – Adjust Ring Gear Backlash
Measure and adjust the crown wheel-to-pinion backlash according to the manufacturer's specifications.
Step 8 – Check Gear Contact Pattern
Apply suitable gear-marking compound and rotate the assembly to verify the tooth-contact pattern.
Incorrect setup can result in:
Excessive gear noise
Tooth overheating
Accelerated wear
Premature gear failure
Step 9 – Check Bearing Preload
Adjust pinion and differential carrier bearing preload according to the applicable axle specifications.
Step 10 – Fill Differential Oil
Fill the rear differential with the recommended final-drive lubricant to the specified level.
Step 11 – Road Test
After installation, perform a controlled road test and check for:
Gear engagement
Whining noise
Acceleration noise
Deceleration noise
Abnormal vibration
Oil leakage
Excessive axle temperature
Important: Crown wheel and pinion installation requires professional setup. Correct pinion depth, backlash, bearing preload and tooth-contact pattern are essential for reliable operation.
After-Sales Service & Warranty
12-Month Warranty
We provide a 12-month warranty against verified manufacturing-related quality issues under normal operating conditions and professional installation.
Pre-Shipment Inspection
Before shipment, products can be inspected for:
OE number
Tooth count
Gear ratio
Tooth profile
Gear surface condition
Machining quality
Product appearance
Packaging integrity
Fitment Verification
Our technical team can assist with product matching before shipment.
Technical Support
We provide assistance with:
Crown wheel and pinion identification
Gear-ratio verification
Rear axle matching
Differential setup
Installation questions
Gear-noise troubleshooting
After-sales technical support
Global Wholesale Service
We support international:
Toyota parts wholesalers
Hilux parts distributors
4WD parts suppliers
Differential repair shops
Fleet maintenance companies
Automotive importers
Services include:
Bulk orders
Mixed orders
Export packaging
Pre-shipment inspection
Product matching
International shipping coordination
Warranty Claim Support
If a verified manufacturing-related quality issue occurs during the warranty period, customers can provide product photos, videos, installation information and vehicle details for assessment and further resolution.
Wenzhou Ideer Established in 2013, which is a professional manufacturer and exporter that is concerned with the design, development and production of auto parts. We are located in Wenzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We fucos on Japanese car model 4x4 and 4x2 transmission system spare parts. Such as Differential assembly, cronw wheel pinion, Gears, differential actuator, manual transmission, gearbox shaft, synchronizer, synchronizer rings,shift lever, transfer case, chains, transfer case actuator and so on. The car model is including Toyota Hilux, Landcruiser, Prado, Hiace, Nissan Navara, Nissan xtrail ,Isuzu D-MAX, Changan, JAC, Geely, Chery, Wuling,Great Wall, Lada, UAZ, GAZ and so on. Besides, we have received ISO9001 and CE.
If you are interested in any of our products or would like to discuss a customorder, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
1. Strong Sourcing Capacity:It covers parts for multiple car brands, with efficient parts allocation, solving the limitations of supply from a single factory;
2. Low MOQ & Sample Available:Lowering the barriers to cooperation allows customers to easily verify product quality;
3. Fast Delivery:Improve inventory management, respond quickly after an order is placed, and shorten the delivery cycle;
4 .Custom Development:A professional team supports new product customization to meet special needs;
5 .Reliable After-sales Support:We provide after-sales guidance in both text and video format, and offer rapid response to quality issues.
At the heart of our company is a team of seasoned automotive engineers, technical specialists, and dedicated customer service professionals. We understand that in the auto parts industry, technical precision and reliable support are just as important as the products themselves. Our team brings decades of collective experience to the table, providing expert guidance on product selection, technical specifications, and logistics. From the moment you inquire to the final delivery, our experts are committed to providing a seamless, efficient, and professional experience that ensures your business stays ahead of the curve.
