Toyota Differential Noise Issues: Diagnosis for Pickup & SUV Models

For many Toyota truck and SUV owners, particularly those driving 2016-2023 Tacoma and Tundra models, a persistent howling or whining noise from the rear end causes widespread frustration. Dealerships frequently dismiss these noises as normal gear resonance, torque echoing, or uneven tire wear. This leaves owners uncertain if they face a harmless acoustic quirk or a looming, expensive mechanical failure. Accurately diagnosing the sound dictates the necessary response. By understanding specific sound signatures, owners can navigate Toyota's Technical Service Bulletins effectively. This framework helps determine whether the vehicle requires fluid mitigation, a bearing rebuild, or a replacement. The following guide breaks down the diagnostic steps to identify the root cause of these drivetrain noises, separating harmless harmonics from catastrophic component destruction.

• Sound Signatures Dictate Action: A 50-60 mph "whine" is often normal ring-and-pinion resonance, whereas "grinding" indicates critical metal-on-metal failure caused by fluid loss or bearing collapse.

• TSB Limitations: Toyota's official fix (T-SB-0045-23) relies on acoustic dampening, not mechanical repair, as even brand-new replacement units often develop the same howl.

• Warranty Distinctions: Understand the critical difference between the 3-year/36,000-mile comprehensive warranty (covers acoustic dampening) and the 5-year/60,000-mile powertrain warranty (covers mechanical failure).

• Objective DIY Verification: Inspecting the magnetic drain plug for metal shavings is the definitive test to separate harmless noise from actual component destruction.

Sound Diagnostics: Decoding Toyota Differential Noises

Whining and Howling (45-65 mph)

The classic symptom for 3rd Gen Tacoma and Tundra owners is a distinct howl when lightly accelerating or lifting off the throttle between 45 and 65 mph. The mechanical reality is that this sound represents standard ring and pinion gear operation noise echoing through the cabin. Hypoid gears inherently produce a certain level of friction and vibration as the teeth mesh. This harmonic resonance can appear at extremely low mileage, sometimes as early as 10 to 3,000 miles. It does not necessarily indicate impending failure. The pitch often changes depending on whether you are applying throttle (loading the drive side of the gear teeth) or coasting (loading the coast side). Dealership service departments frequently blame the noise on aggressive tire treads, wind resistance, or normal driveline torque rather than a rear Toyota Differential issue. Understanding this baseline harmonic behavior prevents unnecessary panic and helps you push back against inaccurate service advisor assessments.

Grinding and Metal-on-Metal Sounds

Severe mechanical failure presents as harsh, grating noises at all speeds. This grinding sound links directly to compromised carrier bearings, collapsed pinion bearings, or destroyed gear teeth. When the hardened surface of the gear teeth wears away, a process known as spalling or pitting occurs, releasing metal debris into the fluid. Undetected axle seal leaks lead to fluid starvation, rapidly accelerating this catastrophic wear. Excessive driving stress from heavy towing, overloading the bed, or aggressive off-roading also contributes to premature bearing collapse. If you hear a constant grinding noise that worsens with speed, immediate mechanical intervention is required to prevent the axle from locking up entirely while driving.

Clunking or Popping on Acceleration

Differentiating internal gear issues from external driveline slop saves time and money. Clunking or popping sounds upon initial acceleration often point to worn U-joints, an unbalanced driveshaft, or a binding slip yoke. Sometimes, excessive backlash between the ring and pinion gears causes a noticeable clunk when shifting from reverse to drive. Factory specifications for gear backlash typically range from 0.005 to 0.008 inches. When bearings wear down, this tolerance increases, allowing the gears to slam against each other during torque transfer. A thorough physical inspection of the driveshaft and suspension components helps isolate the true source of the clunk before you tear into the axle housing.

Low-Pitch Humming (Wheel Bearing & Brake False Alarms)

A frequent misdiagnosis involves confusing a rear axle issue with a failing wheel bearing. This happens often on the passenger-side rear bearing of older models like the 1st Gen Tundra. Wheel bearing noise typically presents as a continuous, low-pitch "wha-wha-wha" growl. This sound increases in frequency with vehicle speed and remains constant regardless of throttle input. Another secondary false alarm is drum brake drag. When brake shoes are adjusted too tightly against the drum, they create a continuous friction hum that mimics internal gear drag.

The table below outlines the primary differences between these common drivetrain noises to assist in your initial diagnosis:

The Dealership Response: TSB-0045-23 and Warranty Realities

What TSB-0045-23 Actually Fixes

Toyota's official response to the 50-60 mph howl is outlined in Technical Service Bulletin T-SB-0045-23. The repair procedure specifies the installation of cab mount pads, leaf spring isolators, and Dynamic Dampers (Part #51229-04010) to isolate cabin noise. This TSB does not replace any internal gears or bearings; it merely masks the acoustic resonance from reaching the driver's ears. The factory ring and pinion gears remain untouched. Even in rare cases where dealerships agree to replace the entire third member under warranty, the community consensus shows that the exact same harmonic howl often returns within a few thousand miles. The noise stems from the inherent cut and design of the factory gears, not necessarily a manufacturing defect.

Navigating Warranty Coverage Tiers

Understanding the strict boundaries of factory warranty coverage prevents unexpected repair bills. The 3-year/36,000-mile Comprehensive Warranty typically covers the acoustic fixes outlined in the TSB. Dealerships willingly install the dynamic dampers under this bumper-to-bumper period because it requires minimal labor and cheap parts. In contrast, the 5-year/60,000-mile Powertrain Warranty operates under different rules. Dealerships will only authorize a powertrain claim if actual mechanical failure is proven. You must demonstrate that the internal components are actively destroying themselves. The presence of jagged metal shavings in the gear oil or a bearing that fails a physical dial-indicator test triggers this coverage. Knowing these distinctions helps you manage expectations and build a stronger case when negotiating with the service department.

DIY and Professional Diagnosis: Validating the Health of Your Rear Axle

The Magnetic Drain Plug Test

Checking the gear oil via the magnetic drain plug serves as the most definitive diagnostic step you can perform at home. This test provides physical evidence of internal wear, bypassing subjective sound interpretations. You will need a 24mm socket, a breaker bar, and a clean drain pan.

Follow these steps to perform the drain plug inspection:

• Park the vehicle on a level surface and engage the parking brake securely.

• Locate the fill plug on the upper half of the axle housing and loosen it first to ensure you can refill the unit later.

• Place the clean drain pan under the lower drain plug.

• Remove the 24mm magnetic drain plug and allow a small amount of fluid to coat the plug before catching the rest in the pan.

• Inspect the magnet under a bright flashlight.

A visual baseline of fine, grey sludge or a slight metallic "glitter" is considered normal clutch and gear wear, especially during the first 30,000 miles of the vehicle's life. However, the failure criteria are undeniable. If you find distinct, jagged metal shavings, chunks of steel, or fragments of bearing cages attached to the magnet, the unit has suffered catastrophic internal damage. This requires an immediate rebuild or replacement.

The Lateral Play "Wobble" Test

To isolate wheel bearings and brake components from the internal gears, perform the lateral play test. This physical inspection helps rule out the false alarms mentioned earlier. You will need a heavy-duty floor jack and two jack stands rated for the weight of your truck.

Follow these steps to execute the wobble test:

• Chock the front wheels and lift the rear axle using the floor jack under the differential housing.

• Secure the rear axle on jack stands and shift the transmission into neutral.

• Grasp the rear tire at the 12 o'clock and 6 o'clock positions.

• Push and pull the tire vigorously, feeling for any clicking, clunking, or lateral movement.

• Spin the wheel freely by hand and listen closely near the brake drum or rotor for continuous scraping noises.

Any noticeable play at the 12 and 6 o'clock positions indicates a failing wheel bearing, not a gear issue. If the wheel spins with heavy resistance and a scraping sound, the brake shoes are dragging. If the wheel is tight and spins smoothly, the howling noise is likely originating from the center section of the axle.

Professional Verification: Chassis Ears and Stethoscopes

If DIY tests prove inconclusive, a specialized drivetrain mechanic will utilize electronic chassis ears during a road test. This diagnostic equipment consists of multiple small microphones clamped to various points under the vehicle. The mechanic routes the microphone cables into the cabin and connects them to a selector switch and headphones. By toggling between the microphones while driving at the problem speed (50-60 mph), the mechanic pinpoints the exact origin of the frequency. They can determine whether the vibration stems from the carrier bearings, the pinion bearings, the outer wheel hubs, or the driveshaft center support bearing. This professional verification ensures an accurate diagnosis before you authorize thousands of dollars in major repairs.

Repair vs. Replace: Evaluating Toyota Differential Solutions

Fluid Mitigation and Maintenance

Upgrading to high-quality synthetic gear oil, such as 75W-90 or 85W-140 for heavy towing applications, serves as a viable maintenance strategy. Premium synthetic fluids maintain their viscosity under extreme heat and provide superior shear stability compared to conventional oils. Performing a drain and fill at 30,000 or 60,000-mile intervals removes abrasive wear particles from the housing. While fresh fluid reduces friction and marginally muffles the gear whine, it remains a maintenance strategy, not a mechanical cure for harmonic resonance. Do not expect a fluid change to eliminate a 50 mph howl completely.

Rebuilding the Carrier and Pinion Bearings

Replacing worn bearings and seals involves a specific cost-to-benefit ratio compared to swapping the entire unit. A full rebuild requires stripping the third member down to the bare housing. The mechanic must press off the old carrier bearings, extract the pinion gear, and knock out the old bearing races. Reassembly demands specialized tools, including dial indicators, inch-pound torque wrenches, and bearing press tools. The technician must carefully set the pinion depth using shims, establish the correct bearing preload using a crush sleeve or solid spacer, and dial in the exact gear backlash. This route is highly labor-intensive. If the mechanic fails to set the gear mesh pattern perfectly, the rebuilt unit will howl louder than the original. Rebuilding makes financial sense only if the ring and pinion gears are in pristine condition and you have access to a highly skilled driveline specialist.

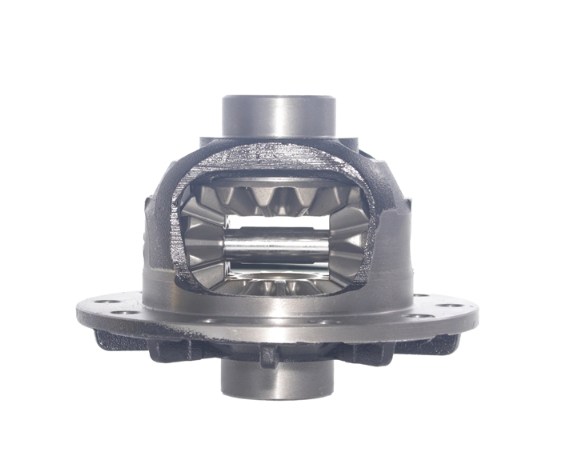

Sourcing a Complete Toyota Differential

Comparing the total costs of a complete drop-in replacement versus a labor-intensive rebuild is essential for budget planning. Replacing the entire third member is often the most financially predictable route, especially when the original ring and pinion gears show signs of scoring or spalling. A pre-assembled unit arrives with the backlash, pinion depth, and bearing preload already set to factory specifications by experienced technicians using specialized jigs. The installation process drops from a multi-day bench rebuild to a straightforward bolt-in procedure that takes a few hours. Sourcing a complete Toyota Differential assembly saves significant labor costs and eliminates the risk of human error during the gear setup process.

Total Cost of Ownership (TCO) and Replacement Trade-offs

OEM vs. Aftermarket Options

When deciding on a replacement path, you must weigh the upfront costs against long-term durability. The table below breaks down the general expectations for both routes.

An OEM Toyota Differential guarantees factory fitment and integrates seamlessly with the vehicle's existing warranty structure. However, it holds the known risk of eventually developing the exact same harmonic whine, as the gear design remains unchanged. Conversely, an aftermarket Toyota Differential offers the potential for significant upgrades. Builders often utilize thicker ring gears, heavy-duty solid pinion spacers instead of crush sleeves, and superior traction devices like air lockers or mechanical limited-slip units. An aftermarket unit is highly recommended for owners running oversized tires, heavy overland camper builds, or those who frequently tow near the maximum weight capacity.

Front Axle Considerations for 4WD Models

For four-wheel-drive models, the front Toyota Differential experiences entirely different load profiles compared to the rear. The front unit is generally less prone to the constant-speed howling associated with the rear axle because it only receives torque when 4WD is engaged. However, the front assembly is notoriously susceptible to needle bearing failures on the driver's side where the CV axle inserts into the housing. This failure presents as a cyclical, low-frequency rumble or vibration felt through the steering wheel and floorboards between 30 and 50 mph. The defining characteristic of this issue is that the vibration completely disappears the moment you shift the truck into 4WD. This issue is rarely fixed permanently by installing another factory needle bearing. Instead, the aftermarket community has developed a permanent solution using a specialized clamshell bushing that replaces the fragile needle bearing entirely, providing better support for the CV axle shaft.

Whether you are dealing with front-end vibrations or rear-end howling, understanding the mechanics of your Toyota Differential empowers you to make informed repair decisions rather than relying solely on dealership service advisors.

Conclusion

To address drivetrain noises effectively and protect your vehicle from catastrophic failure, follow these immediate action steps:

• Perform a magnetic drain plug inspection to check for jagged metal shavings before authorizing any major repairs or teardowns.

• Schedule a road test with a specialized drivetrain mechanic using electronic chassis ears if the source of the noise remains unclear after your DIY wobble test.

• Request the T-SB-0045-23 acoustic dampening fix from your dealership if your vehicle is still under the 3-year/36,000-mile comprehensive warranty and no metal is found in the fluid.

• Upgrade your gear oil to a premium synthetic 75W-90 fluid if you are out of warranty to maximize bearing life and marginally reduce gear friction.

• Source a pre-assembled drop-in third member rather than paying for a labor-intensive bench rebuild if your internal gears are heavily scored or spalled.

FAQ

Q: Is it normal for a rear Toyota Differential to whine at 50 mph?

A: Yes, mild howling between 45-60 mph is a documented harmonic resonance in many 3rd Gen Tacomas and Tundras, addressed by Toyota via acoustic dampening TSBs rather than mechanical replacement.

Q: How can I tell if my differential noise is actually a wheel bearing?

A: Wheel bearings produce a continuous, speed-dependent low growl ("wha-wha-wha") regardless of throttle input, and often exhibit lateral play when the wheel is shaken off the ground, whereas differential whine fluctuates based on acceleration.

Q: Will changing the gear oil stop the differential from howling?

A: Upgrading to a premium synthetic 75W-90 gear oil can reduce friction and slightly muffle the noise, but it will rarely eliminate a harmonic gear whine entirely.

Q: When should I choose an aftermarket Toyota Differential over an OEM replacement?

A: An aftermarket unit is ideal if you are re-gearing for larger tires, adding a heavy-duty locker, or seeking a more cost-effective complete assembly compared to dealership pricing, especially since OEM replacements may develop the same whine.

Q: Does the powertrain warranty cover a noisy complete Toyota Differential?

A: Only if the dealership can verify mechanical failure, such as jagged metal shavings in the fluid or out-of-spec backlash. Noise alone is typically relegated to the shorter comprehensive warranty and treated with acoustic dampers.

Q: Are front Toyota Differential issues common on 4WD models?

A: While the rear is known for howling, the front unit is more commonly associated with needle bearing vibrations, which present as a cyclical rumble that disappears when 4WD is engaged.
