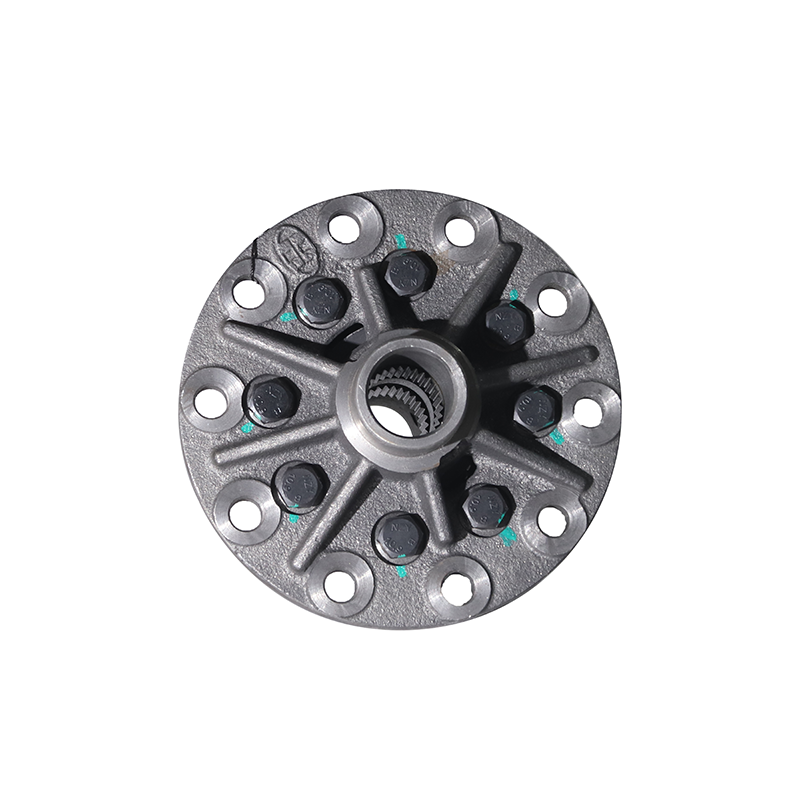

Differential Case Function, Structure & Key Material Features

The Differential Case operates as the central mechanical hub of an automotive drivetrain. It houses the internal gear assembly necessary to transfer engine torque to the drive axles. It simultaneously compensates for wheel speed variations during cornering maneuvers. Automotive engineers and procurement teams face a persistent mechanical challenge. They must balance high mechanical stress tolerance against weight reduction, manufacturing costs, and strict dimensional accuracy. Component failure at this junction causes catastrophic drivetrain lockup and severe safety risks.

This guide deconstructs the component from the inside out. It evaluates internal architecture, finite element analysis (FEA) on material performance, and micron-level machining tolerances. It also examines application-specific selection criteria. By understanding these structural requirements, engineering teams can optimize drivetrain reliability, reduce unsprung weight, and prevent premature mechanical failure.

Key Takeaways

• Material Trade-offs: Cast iron remains the standard for high-torque stability (handling peak equivalent stresses of 1500+ MPa), while aluminum and magnesium offer critical weight savings at the cost of complex machinability.

• Manufacturing Precision: Drivetrain longevity relies on strict adherence to micro-tolerances, specifically maintaining internal sphere diameters and pinion gear bore alignments within ±20 µm.

• Application-Specific Architecture: The choice between open, limited-slip (LSD), selectable lockers, and positive locking differentials fundamentally alters the structural requirements of the rear differential carrier.

• Safety & Dynamics: Improper differential selection or locking mechanisms can lead to severe driving dynamic risks, such as the loss of the "rudder effect" on low-traction side-hills.

Anatomy and Core Function of the Differential Case

Defining the Assembly and Drivetrain Placement

Engineers must distinguish between the rotating internal carrier and the stationary outer enclosure. The internal carrier holds the active gear set and rotates under engine power. The stationary outer shell is known as the Differential Housing Assembly. This outer assembly bolts directly to the vehicle chassis or axle tubes, providing structural rigidity and containing the gear oil.

Drivetrain placement dictates the overall design architecture and thermal management strategy. Front-Wheel Drive (FWD) applications integrate the carrier directly into the transaxle. This configuration shares lubrication fluid with the transmission, requiring specialized dual-purpose oils. Rear-Wheel Drive (RWD) applications place the carrier within an independent rear axle or a solid axle housing. This setup utilizes a dedicated gear oil reservoir, allowing for heavier viscosity fluids tailored specifically for hypoid gear sets.

Internal Gear Architecture

The internal architecture relies on five core components working in unison. Each part handles specific load transfers during vehicle operation. Manufacturers must forge and machine these components from high-grade carburized steel to withstand continuous shear forces.

• Pinion Gear: This acts as the primary input link from the driveshaft. It transfers rotational force directly from the transmission to the axle assembly.

• Ring Gear (Crown Wheel): This large gear meshes perpendicularly with the pinion. It rotates the entire internal carrier assembly and dictates the final drive ratio.

• Spider Gears (Pinion Mates): These cross-axis gears form the primary elements for speed compensation. They rotate on a hardened cross-pin, allowing independent axle rotation during turns.

• Side Gears: These gears feature internal splines. They connect directly to the axle shafts and receive torque from the spider gears, pushing rotational force to the wheels.

• Bearings: High-capacity tapered roller bearings support the carrier on both sides. They reduce friction under extreme axial thrust and radial loads generated by the hypoid gear mesh.

The Physics of Wheel Speed Compensation

Vehicle cornering requires precise mechanical compensation to maintain stability. Consider a standard running track. The outer lanes cover a longer physical distance than the inner lanes. Vehicle tires experience the exact same physical reality during a turn. The outer wheels must travel a longer distance than the inner wheels within the same timeframe.

The spider gears facilitate this rotational difference. When the vehicle drives straight, the spider gears remain stationary on their cross-shaft. The entire carrier rotates as a single solid unit, distributing torque equally. During a turn, the resistance on the inner wheel increases. This resistance forces the spider gears to begin rotating independently on their cross-pin. They walk around the side gears, allowing the outer side gear to spin faster than the inner side gear. This mechanical action prevents severe tire scrub, eliminates destructive drivetrain bind, and maintains predictable steering geometry.

Evaluating Differential Types for Specific Drivetrain Applications

Spool vs. Open Differential

Drivetrain engineers often contrast two extreme mechanical solutions when designing axle systems. A spool represents a solid axle connection. It replaces the internal gear set entirely, locking both axle shafts together permanently. This guarantees maximum straight-line traction and zero torque loss. However, it causes severe tire scrub during cornering, accelerates axle shaft fatigue, and increases turning radius. Spools remain restricted to dedicated drag racing or extreme rock crawling vehicles.

An open differential represents the opposite extreme. It eliminates all cornering friction by allowing unrestricted speed variance between the wheels. This provides smooth, predictable street driving. However, it risks total momentum loss in adverse conditions. If one wheel loses traction on ice or mud, 100% of the engine torque follows the path of least resistance. The vehicle remains stranded while the slipping wheel spins freely, receiving all the rotational energy.

Selectable Lockers vs. Limited-Slip Differentials (LSD)

Modern vehicles require adaptable traction solutions to handle varied environments. Selectable lockers provide manual control over the Rear Differential Carrier. Drivers use pneumatic airlines, electromagnetic coils, or mechanical cables to engage a locking collar. This collar binds the side gear to the carrier housing. The driver can switch between a 100% open system for highway driving and a 100% locked spool for extreme off-roading. This system requires active driver intervention and situational awareness.

Limited-Slip Differentials (LSD) offer an automated mechanical compromise. They integrate friction clutch packs or helical gear sets within the carrier. Pre-loaded Belleville springs apply constant pressure to the clutch plates. During normal cornering, the rotational force overcomes the spring pressure, allowing speed variance. During rapid slip events, the speed differential forces the clutch packs to bind. They mechanically transfer torque away from the slipping wheel and push it to the gripping wheel. The primary trade-off involves gradual clutch wear over time, requiring eventual rebuilding and specialized friction-modifier fluid additives.

Positive Locking Differentials and Driving Dynamic Risks

Engineering terminology often mislabels certain traction aids. Positive locking differentials are technically automatic positive locking traction aids. They utilize heavy-duty dog clutches based on overrunning clutch principles rather than standard spider gears. They remain fully locked during straight-line acceleration. They unlock automatically only when wheel speed forces the outside wheel to overrun the carrier speed during a turn.

These systems introduce specific driving dynamic risks. The "rudder effect" risk becomes highly apparent on icy side-hills. An open differential allows a slipping upper wheel to spin while the stationary lower wheel acts as a directional rudder. This stationary tire keeps the vehicle tracking straight across the incline. A fully locked differential forces both wheels to spin at the exact same speed. If the driver applies too much throttle, both wheels break traction simultaneously on the slick incline. Gravity immediately takes over, resulting in a dangerous lateral slide down the hill.

Torque-Vectoring and Torsen Systems

High-performance platforms utilize advanced mechanical and electronic systems to manipulate vehicle yaw. Torsen (Torque-Sensing) systems use complex Invex or Equvex helical gear arrangements. They multiply torque to the wheel with higher traction instantly, without using wearable clutch packs. They react to torque imbalances before wheel slip actually occurs.

Electronic torque-vectoring systems take this concept further. They use electronically controlled, hydraulically actuated clutch packs on each axle shaft. The vehicle's ECU monitors steering angle, throttle position, and yaw rate. It actively pushes power to the outside wheel during cornering. This artificially induces a yaw moment, rotating the car around its center axis. This dramatically improves turn-in response, neutralizes understeer, and maximizes high-speed cornering stability.

Material Selection Matrix: Balancing Strength, Weight, and Cost

Cast Iron: The Heavy-Duty Standard

Cast iron dominates commercial, heavy-duty, and high-torque applications. Foundries typically utilize Nodular or Ductile Iron (such as GGG40 or GGG50 grades). The spherical graphite structures within ductile iron prevent crack propagation under extreme stress. It offers exceptional tensile strength and superior vibration dampening. This dampening effect significantly reduces Noise, Vibration, and Harshness (NVH) transferring into the vehicle cabin.

Cast iron also provides highly predictable deformation responses under extreme loads. Finite element analysis (FEA) simulation data confirms this stability. Under 1000 N-m of applied torque, ductile cast iron reaches an equivalent (von Mises) stress peak of approximately 1501.1 MPa. It demonstrates massive load-bearing capability without permanent plastic deformation. The primary drawbacks include a severe weight penalty, which negatively impacts fuel efficiency and suspension dynamics. It also requires heavy surface treatments to prevent rapid oxidation and corrosion. Furthermore, it presents complex machinability challenges, requiring rigid tooling setups to cut through the dense material.

Aluminum Alloys: The Performance Standard

Performance vehicles and modern electric vehicles (EVs) prioritize unsprung weight reduction. Aluminum alloys, specifically A356-T6, deliver significant weight savings. Reducing the rotational mass of the drivetrain improves acceleration, enhances braking efficiency, and extends overall fuel or battery economy. Aluminum also boasts excellent thermal conductivity. It dissipates high-performance heat rapidly, protecting internal gear oil from thermal breakdown during track use.

A natural oxide layer provides inherent corrosion resistance, eliminating the need for heavy protective coatings. However, aluminum has lower absolute tensile and yield strength compared to ductile iron. It requires thicker wall sections to achieve similar rigidity. It also carries a high risk of "galling" (adhesive wear) during CNC machining. The soft aluminum can melt and stick to the cutting tools. This requires specialized diamond-tipped tooling, high-pressure coolant systems, and strict temperature control during manufacturing.

Steel and Copper Alloys

High-strength alloyed steel (such as 4140 Chromoly) handles extreme mechanical stress environments, primarily in motorsport and aerospace. Engineers alloy steel with chromium and molybdenum to improve wear resistance, hardenability, and fatigue life. This versatility comes at the cost of increased weight and significantly higher raw material expenses. Machining hardened steel also slows down production cycle times.

Copper alloys serve niche engineering roles, often in specialized bearing surfaces or experimental designs. FEA data shows copper alloys exhibit highly stable deformation responses. However, they endure the highest shear stress under heavy torque loads, reaching up to 180.58 MPa in simulations. This severe shear stress limits their use in primary load-bearing carrier designs, restricting them to low-torque or highly specialized applications.

Advanced Materials: Magnesium and Composites

Cutting-edge applications explore exotic materials to push performance boundaries. Magnesium alloys offer extreme weight reduction, weighing significantly less than aluminum. FEA data shows exceptionally low equivalent stress (e.g., 530.18 MPa at 150 N-m) and minimal shear stress. However, magnesium exhibits unpredictable deformation trends under shock loads. It carries high raw material costs and presents severe flammability risks during machining. Magnesium dust can ignite easily, requiring specialized fire-suppression systems in the machine shop.

Carbon Fiber Reinforced Polymers (CFRP) provide an ultimate strength-to-weight ratio. They eliminate corrosion entirely and can be engineered with specific directional stiffness. These benefits are offset by prohibitive manufacturing costs and slow production times. Furthermore, CFRP components cannot be repaired after structural damage. A minor impact or stress fracture requires complete component replacement.

Precision Manufacturing: Micron-Level Tolerances in the Differential Housing

The Machining Workflow

Transforming a raw foundry casting into a precision drivetrain component requires a strict, multi-stage machining workflow. Manufacturers typically utilize 5-axis CNC milling and turning centers to minimize part handling and maintain datum references.

• OP10 (First Operation): The machine grips the raw casting and turns the front features. It cuts the internal sphere where the spider gears will rest. This establishes the primary internal datum.

• OP20 (Second Operation): The machine flips the part and turns the rear outer diameter. It cuts the mounting flange for the ring gear, ensuring it runs perfectly parallel to the internal sphere.

• OP30 (Third Operation): The machine handles the precise drilling and reaming of the cross-shaft holes and side gear bores. It taps the threaded holes for the ring gear bolts.

• Washing and Deburring: The component undergoes high-pressure washing to remove all metal swarf and cutting fluids. Automated brushes remove sharp burrs.

• Dynamic Balancing: The carrier spins on a balancing machine. The machine drills shallow holes into heavy spots to ensure the carrier rotates smoothly at high speeds without inducing drivetrain vibrations.

Critical Inspection Features and Tolerances

Drivetrain longevity relies entirely on dimensional accuracy within the Differential Housing. Engineers enforce exact specifications to prevent premature gear wear, excessive heat generation, and catastrophic mechanical failure.

• Internal Sphere Diameter: Machinists must hold this dimension to ±20 µm. This ensures accurate spider gear positioning. If the sphere is too tight, the gears bind. If it is too loose, the gears suffer from excessive backlash and impact loading.

• Pinion Gear Bore Axis Alignment: This requires a strict ±20 µm tolerance. Misalignment causes localized stress concentrations on the gear teeth, leading to rapid tooth fracture.

• ID of Gear Bore Axis: The inner diameter must remain within +10/-6 μm. Poor fitment leads to severe assembly issues between the gear set and the housing, causing axle shaft runout.

• Concentricity: The concentricity between the pinion bore and the internal sphere axis must remain within 45 µm. Excessive runout causes the carrier to wobble, destroying the carrier bearings.

• Perpendicularity: The perpendicularity between the pinion axis and the side gear axes must stay within 60 µm to guarantee smooth, uninterrupted torque transfer.

Automated Process Control

Modern foundries and machine shops cannot rely on manual measurement for micron-level tolerances. They deploy in-line measurement systems, such as the Renishaw Equator or automated Coordinate Measuring Machines (CMM). These systems measure parts immediately after machining on the shop floor.

They utilize automated tool compensation via Intelligent Process Control (IPC) software. If a cutting tool wears down by 5 µm after machining fifty parts, the software automatically adjusts the CNC machine offset for the next part. This eliminates thermal drift errors caused by temperature fluctuations in the factory. It maintains a Process Capability Index (CpK) above 1.67, driving production toward a zero-scrap reality and ensuring every carrier meets OEM specifications.

Total Cost of Ownership (TCO): Failure Modes and Maintenance Realities

Diagnosing Drivetrain Wear

Fleet managers and vehicle owners must identify failing components early to prevent total axle destruction. Diagnostics rely heavily on NVH (Noise, Vibration, Harshness) symptoms. A whining or whirring noise during acceleration or deceleration indicates ring and pinion wear. It can also signal improper gear backlash or failing pinion bearings. Clunking sounds during initial gear engagement or shifting point directly to spider gear damage or axle spline wear within the Axle Differential Case.

Increased rear-end vibrations often accompany visible gear oil leaks. Technicians must inspect the pinion seal and the housing mating surfaces for fluid weeping. Running a differential low on fluid causes immediate bearing overheating and rapid gear scoring.

Inspection and Sealing

Routine maintenance prevents catastrophic failures and extends the lifecycle of the axle assembly. The Differential Cover Assembly plays a vital role in this process. Technicians remove this rear cover to drain the fluid and inspect the internal gear teeth for pitting, scoring, or chipped edges. They must check the magnetic drain plug for excessive metal shavings. A small amount of fine metallic paste is normal wear. Large metal shards indicate imminent mechanical failure.

Reassembly requires a perfect gasket seal. Technicians use either a stamped reusable gasket or a precise bead of RTV silicone. Improper sealing leads to slow gear oil starvation, rapid overheating, and complete component destruction. The cover bolts must be torqued to exact factory specifications to prevent warping the cover flange.

Lifecycle Management

Realistic maintenance intervals depend entirely on the vehicle application and operating environment. Daily commuting vehicles typically require fluid changes every 30,000 to 60,000 miles. Heavy towing applications, commercial trucks, and track-driven vehicles degrade gear oil much faster due to extreme heat generation. These severe-duty applications often require fluid replacement every 15,000 miles.

Upgrading to high-quality synthetic gear oil (e.g., 75W-90 or 75W-140 GL-5) improves thermal stability and extends the lifespan of the internal bearings. Vehicles equipped with clutch-type limited-slip differentials require specific friction modifier additives. Failing to include this additive causes the clutch packs to chatter and bind during low-speed cornering.

Conclusion

The optimal differential component represents a calculated engineering compromise. High-torque commercial applications demand the predictable stress response and durability of cast iron. Performance vehicles justify the machining complexities and higher costs of aluminum or advanced composites to reduce unsprung weight and improve thermal dynamics.

Use this shortlisting logic for procurement and design:

• Heavy Duty / Towing: Specify Cast Iron paired with a Locking or Selectable Locker mechanism for maximum durability.

• Track / Performance: Specify Aluminum paired with a Torsen or Electronic Torque-Vectoring system for rapid heat dissipation and yaw control.

• Daily Commuter: Specify Cast Iron or Aluminum paired with a standard Open Differential for smooth operation and cost efficiency.

Next Steps for Engineering and Procurement Teams:

• Audit your current foundry partners to verify their equipment can hold ±20 µm tolerances on internal sphere diameters.

• Request CpK data reports from machining suppliers to ensure automated in-line process controls are actively adjusting tool offsets.

• Evaluate your vehicle's primary use case to determine if an open, limited-slip, or locking architecture provides the safest driving dynamics.

• Implement strict NVH testing protocols during end-of-line assembly to catch gear backlash errors before vehicle delivery.

FAQ

Q: What is the difference between a differential case and a differential housing?

A: The case is the rotating internal carrier that directly holds the spider and side gears. The housing (or axle housing) is the stationary outer metal shell bolted to the vehicle chassis. It protects the internal carrier and holds the lubricating gear oil.

Q: Why is the rear differential carrier prone to whining noises?

A: Whining noises usually result from improper gear backlash between the ring and pinion gears. It can also be caused by worn carrier bearings or degraded gear oil that fails to properly lubricate the gear teeth under load.

Q: Can a damaged axle differential case be repaired?

A: While internal bearings, seals, and spider gears can be replaced, a cracked or warped carrier case usually requires full replacement. Welding or machining a damaged case compromises the strict micron-level concentricity tolerances required for smooth operation.

Q: How does a differential cover assembly impact cooling?

A: Standard stamped steel covers trap heat. Aftermarket or performance covers made of cast aluminum often feature increased fluid capacity and external cooling fins. These fins dissipate heat rapidly, protecting the gear oil from thermal breakdown during high-load towing.

Q: What is the ideal material for a high-performance differential housing assembly?

A: Aluminum alloys are ideal for high-performance applications. They significantly reduce unsprung weight and offer superior thermal management. However, the manufacturer must use specialized machining processes to prevent material galling and ensure precise bearing alignments.
