Synchronizer Ring vs. Synchronizer Hub and Sleeve: What Is the Difference?
Views: 0 Author: Site Editor Publish Time: 2026-10-15 Origin: Site
Manual transmission longevity relies on the precise, millisecond-level synchronization of shaft speeds and gear engagement. When shifts become compromised, pinpointing the exact point of mechanical failure dictates the success of the repair. Misdiagnosing transmission grinds, hard shifting, or gear pop-outs often leads to replacing the wrong synchromesh components. This results in wasted labor hours, unnecessary parts procurement, and premature failure of subsequent rebuilds. To execute a reliable rebuild or specify parts for a high-torque application, engineers and technicians must evaluate the distinct roles, failure modes, and material requirements of the synchronizer ring versus the hub and sleeve assemblies. Understanding these mechanical boundaries prevents costly comebacks and ensures the transmission handles the intended loads.
The synchronizer ring acts as a wet clutch, utilizing friction to equalize the rotational speed of the gear and the main shaft prior to engagement.
The synchronizer hub and sleeve act as the mechanical locking mechanism; the hub is splined to the shaft, while the sleeve slides over it to lock the gear's dog teeth into place.
Grinding during gear selection typically indicates synchronizer ring wear (loss of friction material or cone degradation), whereas a transmission popping out of gear points to worn engagement teeth on the sleeve or hub.
Upgrading transmission internals requires matching synchronizer ring materials (e.g., carbon-lined vs. brass) and designs (multi-cone) with the correct fluid specifications to prevent accelerated wear on the hub and sleeve assembly.

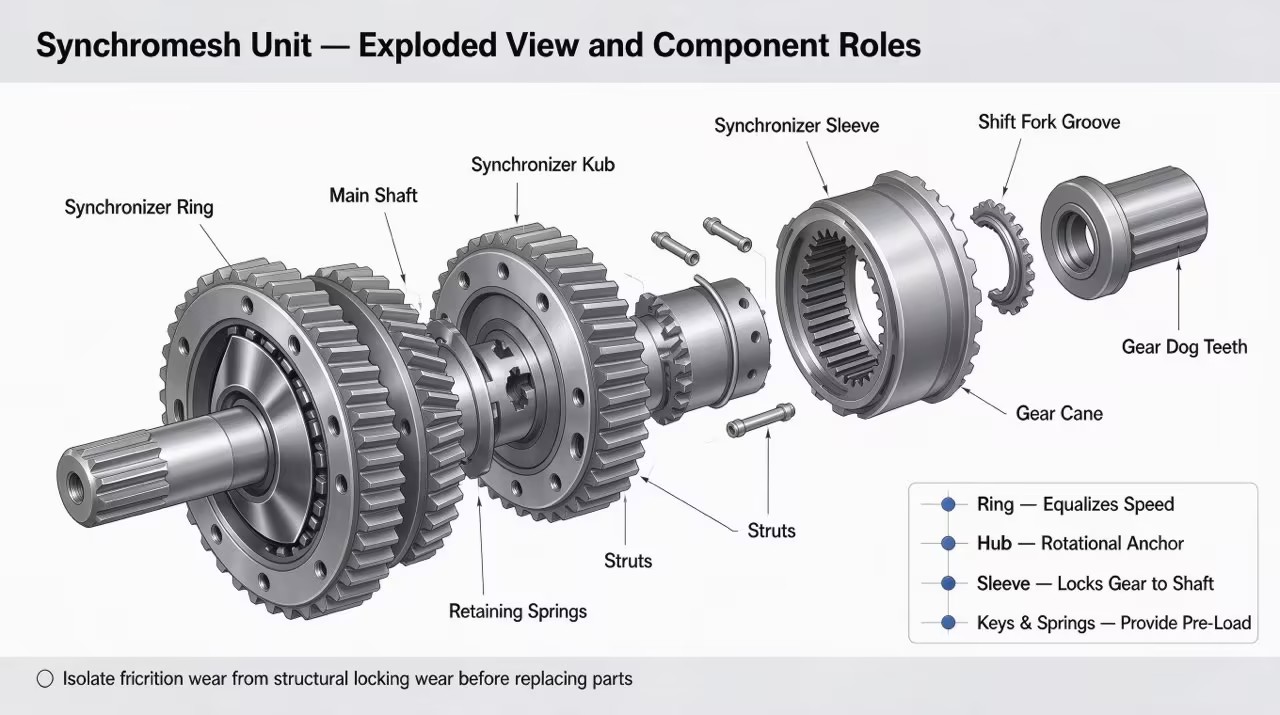

Synchromesh Assembly: Parts and Basic Functions
A manual transmission synchronizer assembly helps match rotational speeds and engage gears smoothly. Its main components include the synchronizer ring, hub, and sleeve, each performing a different function during gear changes.
The Synchronizer Ring (Blocker/Balk Ring)
The synchronizer ring uses friction against the gear cone to help equalize rotational speeds before engagement. Its friction surface and blocking features reduce gear grinding and support smoother shifting.
Worn rings may cause difficult gear engagement or grinding noises.
Explore our Synchronizer Rings for manual transmission repair and replacement applications.
The Synchronizer Hub
The synchronizer hub connects to the transmission shaft through splines and provides structural support for the synchronizer sleeve. It rotates with the shaft and helps transfer torque once the selected gear is engaged.
Hub wear or spline damage may affect gear engagement and transmission performance.
The Synchronizer Sleeve (Slider)
The synchronizer sleeve slides along the hub to engage the selected gear. Its internal splines connect with the gear's engagement teeth after rotational speeds are synchronized.
Worn sleeve teeth or damaged splines may cause hard shifting, incomplete engagement, or gear disengagement.
Synchronizer Ring vs. Hub and Sleeve: Key Differences
The synchronizer ring, hub, and sleeve work together but perform different mechanical functions. Understanding these differences helps technicians identify transmission problems and select suitable replacement parts.
Friction vs. Mechanical Locking
The synchronizer ring uses friction to reduce speed differences between transmission components.
The hub and sleeve provide mechanical engagement and torque transmission. Their performance depends on spline condition, dimensional accuracy, and structural strength.
The Synchronization Sequence: How Components Interact
During a gear change, the synchronization process generally follows four stages:
Shift Initiation: The shift fork moves the synchronizer sleeve.
Friction Contact: The synchronizer ring contacts the gear cone and helps reduce the speed difference.
Speed Synchronization: Rotational speeds approach the required engagement condition.
Gear Engagement: The sleeve engages the gear teeth, connecting the gear to the shaft.
The exact sequence varies with transmission and synchronizer design.
Load Distribution and Wear Characteristics
Different components experience different operating loads. Synchronizer rings are primarily affected by frictional wear, while hubs and sleeves experience mechanical engagement and torque-related stresses.
Component | Main Function | Common Wear | Possible Symptoms |
|---|---|---|---|
Synchronizer Ring | Speed synchronization | Friction surface wear | Gear grinding, hard shifting |
Synchronizer Hub | Structural support and torque transfer | Spline wear or deformation | Excessive play, engagement problems |
Synchronizer Sleeve | Gear engagement | Worn engagement teeth | Hard shifting, gear disengagement |
For example, our Hyundai 43350-02502 Synchronizer Ring is designed for specified manual transmission repair applications. Buyers should verify the OE number, transmission model, and gear position before ordering.
Wenzhou Ideer Auto Parts Co.,Ltd
Troubleshooting Failures: Choose the Right Replacement Part
Manual transmission synchronizer problems may cause gear grinding, difficult shifting, or unexpected gear disengagement. However, similar symptoms can also result from clutch, shift linkage, or other transmission faults.
Symptoms of a Failing Synchronizer Ring
A worn gear synchronizer ring may struggle to equalize rotational speeds, causing grinding or resistance during gear changes.
Technicians should inspect friction surfaces and measure ring-to-gear clearances according to the transmission manufacturer's specifications.
Symptoms of Hub and Sleeve Wear
Synchronizer hub and sleeve damage may cause difficult gear engagement, excessive play, or gears disengaging under certain operating conditions.
Common inspection points include:
Worn or chipped engagement teeth.
Damaged hub or sleeve splines.
Excessive component clearance.
Abnormal wear on mating gear components.
Replacement decisions should follow the relevant transmission service manual.
Material Selection and Upgrade Considerations
Synchronizer component materials influence friction characteristics, wear resistance, durability, and transmission compatibility.
Selecting replacement parts requires considering the original transmission design, operating loads, and specified lubricant.
Synchronizer Ring Materials: Brass vs. Carbon-Lined
Brass, sintered metal, and carbon-lined synchronizer rings provide different friction and wear characteristics.
Material | Main Characteristics | Typical Applications |
|---|---|---|
Brass / Bronze | Established friction performance and machinability | Standard manual transmissions |
Sintered Metal | Engineered friction and wear properties | Selected heavy-duty transmissions |
Carbon-Lined | Specialized friction interface | Performance-oriented and selected OEM designs |
The best material depends on the synchronizer design and transmission fluid requirements.
For replacement applications, explore our Toyota Hilux 33039-0K011 Synchronizer Ring, designed for specified transmission configurations.
Single-Cone vs. Multi-Cone Synchronizer Designs
Single-cone synchronizers use one primary friction interface to match rotational speeds.
Double-cone and triple-cone synchronizers use additional friction interfaces to increase synchronization capacity within the available design space.
Multi-cone designs can reduce shifting effort or improve synchronization performance in suitable transmissions, but replacement parts must match the original assembly configuration.
Billet vs. Forged Hubs and Sleeves
Synchronizer hubs and sleeves may be manufactured using different steel grades and production methods, including forging and precision machining.
For demanding applications, engineers evaluate material strength, hardness, heat treatment, and dimensional accuracy.
Billet or forged components are not automatically superior in every transmission. Compatibility with the original gear geometry and shaft splines remains essential.
Key Factors When Selecting Synchronizer Replacement Parts
Evaluation Factor | What Buyers Should Verify |
|---|---|
OE Number | Correct replacement part reference |
Transmission Model | Compatibility with gearbox configuration |
Gear Position | Correct synchronizer application |
Material | Suitable friction and mechanical properties |
Dimensions | Matching spline geometry and clearances |
Lubricant | Compatibility with specified transmission fluid |
For additional gearbox components, explore our Transmission Parts and Automotive Components.
Conclusion
Measure synchronizer ring-to-gear clearance with feeler gauges before ordering replacement parts to confirm friction cone wear.
Inspect the dog teeth and internal chamfers on the sleeve for rounding or blunting if the transmission pops out of gear under load.
Upgrade to carbon-lined multi-cone rings for vehicles subjected to high-RPM track use or heavy towing applications.
Verify main shaft end-play with a dial indicator during reassembly to prevent constant synchro drag and premature burnout.
Fill the transmission exclusively with fluid chemically compatible with your specific synchronizer ring material to prevent hydroplaning or chemical degradation.
FAQ
Q: Can a bad synchronizer ring damage the hub and sleeve?
A: Yes. A worn synchronizer ring fails to match shaft speeds. This forces the sleeve to grind against the unsynchronized gear teeth during engagement. Over time, this repeated crashing blunts and ruins the internal splines of the sleeve, requiring a full assembly replacement.
Q: Why does my transmission only grind when downshifting?
A: Downshifting requires the synchronizer ring to accelerate the heavy clutch disc and input shaft to a higher RPM. This places maximum thermal and friction stress on the ring. Grinding on downshifts is the earliest indicator of friction cone wear.
Q: Can I use GL-5 gear oil with brass synchronizers?
A: Generally, no. Many GL-5 gear oils contain active sulfur-phosphorus additives designed for extreme pressure in differentials. This active sulfur is highly corrosive to yellow metals and will rapidly degrade brass synchronizer rings under normal operating temperatures.
Q: How do I fix a manual transmission that pops out of gear?
A: Popping out of gear usually indicates a mechanical locking failure. You typically need to replace the synchronizer sleeve, the hub, and potentially the gear itself if the dog teeth are rounded off. Worn detent springs or bent shift forks can also cause this issue.
Q: What is the advantage of a triple-cone synchronizer?
A: A triple-cone synchronizer uses three separate friction surfaces instead of one. This drastically increases the friction area, allowing for faster speed equalization, lower shifting effort at the lever, and longer component lifespan under high-torque conditions.
Q: Can I replace just the sleeve without replacing the hub?
A: While physically possible, it is highly discouraged. The hub and sleeve wear together as a mated pair. Replacing only the sleeve often results in excessive lateral play, leading to rough shifting, binding, and premature failure of the new part.
