What Is Included in A Complete Differential Gear Kit? Full Parts Breakdown

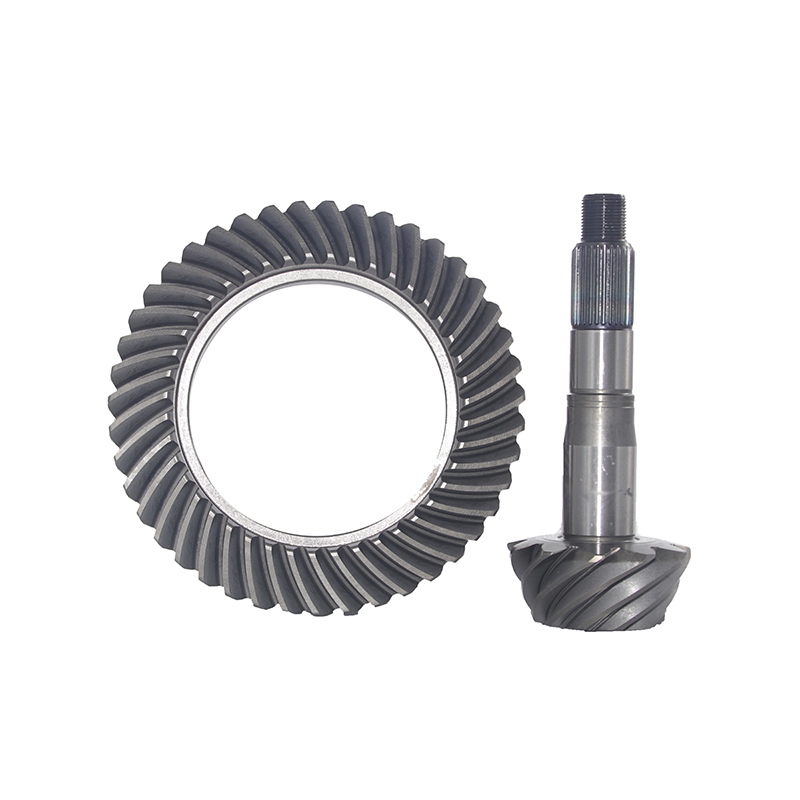

Differential maintenance goes far beyond a routine fluid change. It acts as a necessary intervention to prevent catastrophic drivetrain failure. Ignoring early warning signs often leads to grenading the unit under sudden torque loads or aggressive clutch drops. When this happens, you face a massive repair bill and a stranded vehicle. The core problem for many buyers is navigating complex aftermarket terminology. This confusion leads to overpaying for redundant parts or under-buying essential components. This results in stalled rebuilds because of missing shims, seals, or bearings. Selecting the right Differential Gear Kit requires precision. You must match the exact Bill of Materials (BOM) to your vehicle’s symptoms. You also need to consider the intended application, whether that is re-gearing or a standard repair. Finally, strict metallurgical standards dictate the longevity of the repair. Understanding these factors ensures a successful rebuild and keeps your vehicle on the road.

• Kit Tiers Dictate Scope: Kits range from Basic (bearings and seals only) to Master Overhaul (complete internal replacement), directly impacting labor time and repair depth.

• Symptom-Based Selection: Specific noises (whining vs. clunking) dictate whether you need a full Differential Rebuild Kit or just a Spider Gear Kit.

• Engineering Matters: The longevity of a Differential Gear Set relies heavily on manufacturing processes, specifically near-net forging versus standard cutting, and verifiable OE-grade heat-treatment metrics.

• Hidden TCO: The cost of the kit is secondary to labor; failing to replace a $10 crush sleeve or using inferior bearings can necessitate a complete, costly tear-down.

Anatomy of a Differential: Power Flow and Component Identification

Understanding the internal structure of your axle is the first step in any repair. A labeled differential exploded diagram is an invaluable tool here. It visually separates the carrier assembly from the housing. It also isolates the individual bearings and seals. You should always consult a diagram specific to your axle before ordering parts. This ensures you understand exactly how the components interact under load.

Internal layouts vary significantly by manufacturer. A Dana 44 differs greatly from a Ford 8.8. A GM 10-Bolt has different tolerances than a Toyota 8-inch axle. Emphasize brand-specific architecture when planning your repair. Referencing the correct diagram ensures accurate part identification. This prevents ordering incompatible components that will stall your project.

The kinetic path of power transfer is highly specific. Power travels from the transmission to the driveshaft. The driveshaft turns the pinion gear. The pinion gear rotates the ring gear. The ring gear is bolted to the carrier. The carrier houses the spider and side gears. Finally, these internal gears distribute power to the axle shafts. Every component in this sequence must mesh perfectly to avoid excessive wear.

Terminology standardization establishes baseline expertise. OEM naming conventions sometimes differ from aftermarket labels. For example, the carrier assembly is a distinct unit. It holds the internal gears. The ring and pinion are separate drive components. Knowing the difference prevents costly ordering mistakes and ensures you get the exact parts you need.

Types of Differential Gear Kits: Bill of Materials (BOM) Breakdown

Evaluating repair depth is essential for a successful project. You must match kit completeness with the severity of the differential wear. This section serves as a buyer's guide. It breaks down exactly what you get in each tier, helping you make an informed purchasing decision.

1. Master Differential Rebuild Kit (The Complete Overhaul)

This is the most comprehensive option available on the market. The target scenario includes high-mileage rebuilds. It is also necessary for catastrophic failure recovery. If you are performing a complete axle housing swap, you need this kit. It leaves nothing to chance and replaces every wear item.

The BOM checklist is extensive. A true Differential Rebuild Kit at the master level includes pinion and carrier bearings. It features a new pinion seal and a complete shim kit. You will find a new pinion nut and a crush sleeve. Some kits use a solid spacer with depth shims instead. It also includes ring gear bolts, O-rings, and gear marking compound. A brush, threadlocker, cover gasket, and oil slingers complete the package.

Premium master kits adhere to strict brand standards. They explicitly feature top-tier OEM-grade bearings. Timken is a common industry standard here. These bearings ensure proper load ratings. They handle the immense stress of daily driving, heavy towing, and off-road abuse.

2. Basic Differential Rebuild Kit

This kit targets preventative maintenance. It is ideal for professional shops. These shops usually have existing shim and hardware inventory. They do not need to pay for duplicate setup tools or extra marking compound.

The BOM checklist is streamlined for efficiency. It includes pinion and carrier bearings. It provides a pinion seal and necessary O-rings. A new pinion nut and crush sleeve are also standard. It omits the setup shims and marking compound to keep costs down.

There are distinct trade-offs here. Buying a basic kit carries risk for the DIY mechanic. If the original shims are damaged, you cannot set the backlash. If the new bearings require a different shim thickness, your rebuild will stall. You will have to order a separate shim kit, delaying the repair.

3. Pinion Gear Kit & Mini Installation Kits

These kits target low-mileage re-gearing scenarios. Sometimes, existing carrier bearings are still well within tolerance. You only need to replace the components directly interacting with the pinion gear.

The BOM checklist for a Pinion Gear Kit focuses on the front of the differential. It includes pinion bearings and a pinion seal. It provides pinion shims and a crush sleeve. O-rings and marking compound are also included to set the pinion depth accurately.

A Mini Installation Kit is even more basic. It excludes bearings entirely. It only includes seals, shims, and a crush sleeve. Ring gear bolts and marking compound are usually present. This is strictly for swapping gears on a virtually new vehicle where bearings have zero wear.

4. Spider Gear Kit (Internal Components)

This kit addresses internal carrier wear. You use this when the main drive gears are fine. If your vehicle clunks during tight turns, the internal gears are likely worn and need replacement.

The BOM checklist is specific to the carrier interior. It includes side gears and pinion gears. It features new thrust washers. A new cross pin shaft and the retaining roll pin or bolt are standard. Replacing these restores smooth cornering and eliminates driveline slop.

5. Limited Slip Differential Kit & Traction Upgrades

This targets traction upgrades for specific driving conditions. Moving from an open differential improves off-road capability. It also drastically improves adverse weather traction. It forces both wheels to spin together under load, preventing one wheel from spinning helplessly.

The BOM checklist for a Limited Slip Differential Kit includes specialized parts. You will find clutch packs and friction modifiers. It includes specialized carrier components. Trac-Lok systems are a common example. These parts require specific break-in procedures to ensure the clutches seat properly.

6. Axle Bearing & Seal Kit (Complementary Upgrade)

This is a complementary upgrade. It addresses semi-float or full-float axle wear. You should do this while the differential is already disassembled. It saves hours of future labor and ensures the entire axle assembly is fresh.

The BOM checklist is simple and straightforward. It includes outer wheel bearings. It also includes the corresponding outer seals. You can buy these for single or dual sides depending on your specific repair needs.

Symptom Matching: Which Kit Do You Actually Need?

Connecting physical vehicle symptoms to the exact failure point is vital. This prevents unnecessary parts purchasing. It also stops you from tearing down the axle blindly. Diagnostics dictate your shopping list and save you money.

Diagnosing Early Failure Sounds vs. Extreme Failure

Different noises indicate different failing components. Howling or whining on acceleration points to specific wear. It usually indicates wear on the front pinion bearing. It can also mean improper gear alignment. If the mesh is too tight, the gears whine under load as they bind against each other.

Howling on deceleration points elsewhere. This typically indicates a failing rear pinion bearing. The load shifts when you let off the gas. This shift exposes the worn bearing surface, creating a distinct noise that changes with throttle input.

Rumbling or growling at speeds over 20 MPH is distinct. This low-pitch sound usually diagnoses carrier bearing failure. The sound often changes pitch when you swerve slightly. This shifts the vehicle weight across the carrier bearings, isolating the noise to one side.

Clunking every few feet is a severe symptom. It usually identifies broken teeth on the ring or pinion gear. This requires a full replacement. You cannot repair broken gear teeth; they will eventually destroy the entire differential housing.

Banging on corners isolates the problem to the carrier. It points to broken spider gears. It can also indicate worn limited-slip clutch packs binding up. The gears are slipping and slamming back together, creating a harsh metallic impact.

The sounds of death are unmistakable. This is the catastrophic noise of a differential shattering. It often happens when a spinning tire suddenly regains traction off-road. The shock load destroys the internal components. This necessitates a Master Overhaul Kit and a completely new Ring and Pinion Gear Set.

Re-Gearing Scenarios: When to Change Your Ratio

Daily driving and tire upgrades change your effective gearing. Moving to larger tires reduces mechanical leverage. The engine works harder to turn the larger mass. Re-gearing restores lost acceleration. Moving from a 3.73 to a 4.56 or 5.38 ratio corrects the geometry. It also restores proper transmission shift points, preventing the transmission from hunting for gears.

Off-road driving and towing require different setups. You need low-end grunt. Torque multiplication is essential for crawling over rocks. It is also necessary for pulling heavy trailers up steep grades. A numerically higher gear ratio provides this mechanical advantage, reducing strain on the engine and transmission.

Fuel economy optimization requires a different approach. You might want to narrow the ratio for highway commuting. A numerically lower gear ratio drops engine RPM at cruising speeds. This saves fuel on long, flat highway drives, though it sacrifices some low-end acceleration.

Axle Identification & Fitment Matrices

Differential kits are not universal. The fitment matrix is a core concept. You must match kits to specific vehicle generations. A part that fits a 2015 model might not fit a 2019 model. Axle housings evolve over time, changing bearing sizes and spline counts.

Consider a real-world Jeep example. The differences between generations are stark. A 2018 and newer Jeep JL or JT requires Dana 44 AdvanTEK components. These use different bearing sizes and gear designs. Conversely, a 2007-2018 JK utilizes standard Dana 30 front setups. It uses standard Dana 44 rear setups. Ordering a JK kit for a JL will result in parts that simply do not fit. Always verify your axle tag before ordering to ensure compatibility.

Engineering & Quality Standards: Evaluating a Differential Gear Set

You must move beyond the basic BOM. Assessing the metallurgical quality is necessary. Dimensional accuracy of the hard parts determines lifespan. Cheap steel will fail under heavy loads, leaving you stranded.

Manufacturing Process: Near-Net Forged vs. Cut Gears

The manufacturing process dictates ultimate strength. Traditional gear cutting involves machining teeth out of a steel blank. This cuts through the natural grain of the metal, weakening the structure. Near-net forging is a superior process. The steel is pressed into shape under extreme heat and pressure.

The outcome of forging is significant. It aligns the grain structure of the steel with the shape of the gear teeth. This eliminates stress risers. Stress risers are microscopic points of vulnerability where cracks begin. Forging dramatically increases the torsional strength of the gear, making it ideal for high-stress applications.

Metallurgy, Microstructure, and Heat Treatment

Specific metrics define gear quality. Case depth refers to surface hardness. A deep case provides excellent wear resistance against friction. Core hardness refers to internal flexibility. The inside of the gear must remain slightly ductile. It needs to absorb shock loads without shattering.

Advanced testing separates premium kits from cheap alternatives. Top-tier OE-grade kits undergo rigorous testing. They are checked for dimensional accuracy. Their optimal microstructure is verified. This ensures the gear teeth will flex slightly rather than snap under heavy off-road loads. A high-quality Differential Gear Set balances hardness with flexibility perfectly.

Surface treatments add another layer of durability. Phosphate coatings are often applied to cross shafts. This provides anti-galling properties. It reduces friction during the critical break-in period. It helps retain lubricating oil on the metal surface, preventing dry starts and premature wear.

Total Cost of Ownership (TCO) & Implementation Risks

Analyzing the true cost of a differential rebuild is eye-opening. The initial purchase price is only a fraction of the total cost. Return on investment (ROI) depends entirely on longevity and proper installation.

Labor costs dwarf the cost of the parts. A standard rebuild takes 4 to 8 hours. Shop rates often exceed $120 per hour. Buying a cheap kit that fails prematurely doubles your TCO. You pay for the labor twice. Investing in premium bearings and forged gears saves money long-term by preventing secondary failures.

Implementation risks are high during installation. Reading the gear mesh pattern is non-negotiable. You use the marking compound to see how the teeth interact. If the pattern is wrong, the gears will burn up in miles. Precision here ensures longevity and quiet operation.

Crush sleeves present a specific risk. They set the preload on the pinion bearings. You must torque them precisely. If you over-torque the crush sleeve, you cannot back it off. Doing so ruins the tension. You must discard it and start over with a new sleeve, which delays the project.

The break-in period is strictly enforced by manufacturers. You must follow a 500-mile break-in procedure. This involves specific heat cycling. You drive for a short distance, then let the axle cool completely. This hardens the gear surfaces. Failing to do this causes immediate failure of a new gear set, voiding the warranty.

Conclusion

A successful differential repair relies on selecting the right parts and executing a precision installation. Do not cut corners on either step. To ensure your drivetrain operates flawlessly, follow these actionable steps:

• Identify your exact axle model and verify your current gear ratio using the metal tag bolted to the differential cover.

• Select a Master Overhaul Kit if your vehicle has over 75,000 miles or an unknown service history.

• Reserve Mini Kits strictly for low-mileage ratio swaps where bearings are still factory-fresh.

• Prioritize kits that explicitly feature verified OEM-grade bearings and near-net forged internal components.

• Consult a certified drivetrain specialist for installation if you lack the tools to measure bearing preload and backlash accurately.

FAQ

Q: What is the difference between a differential rebuild kit and an installation kit?

A: A rebuild kit includes all necessary bearings, seals, and hardware required to completely overhaul the differential. An installation kit, often called a mini kit, typically excludes the bearings. It only provides the shims, seals, and hardware needed to install new gears in a low-mileage axle.

Q: Do I need a new ring and pinion gear set if my differential is whining?

A: Not always. A whining noise often indicates worn pinion or carrier bearings rather than damaged gear teeth. However, if the bearings fail completely and alter the gear mesh, the gear teeth can wear unevenly. In that case, both bearings and gears require replacement.

Q: How long does it take to install a complete differential gear kit?

A: For a professional mechanic, a complete installation typically takes 4 to 8 hours per axle. For a DIY mechanic, it can take a full weekend. The process requires specialized tools like dial indicators and inch-pound torque wrenches to set precise tolerances.

Q: What is a crush sleeve and why is it included in a pinion gear kit?

A: A crush sleeve is a collapsible metal tube positioned between the two pinion bearings. As you tighten the pinion nut, the sleeve crushes. This maintains precise tension, known as bearing preload, ensuring the pinion gear does not move laterally under heavy torque.

Q: Can I reuse my old shims when installing a new limited slip differential kit?

A: It is highly discouraged. Manufacturing tolerances vary between carriers and gear sets. Reusing old shims leads to tolerance stacking, which alters the backlash and gear mesh pattern. Always use a new shim kit to establish the correct geometry.

Q: Why do master overhaul kits specify Timken bearings?

A: Timken is an industry-standard manufacturer known for meeting strict Original Equipment (OE) specifications. Specifying these bearings ensures the kit meets high load ratings and metallurgical standards, providing the durability required for towing, off-roading, and long-term reliability.
