Transmission Input Shaft Wear: Symptoms and Inspection Points
Views: 0 Author: Site Editor Publish Time: 2026-10-15 Origin: Site
Transmission input shaft wear can cause unusual gearbox noise, shifting difficulties, vibration, and premature damage to related transmission components.
The input shaft transfers engine torque from the clutch into the manual transmission. When its splines, bearing surfaces, or gear teeth become damaged, transmission operation may become less reliable.
However, similar symptoms can also result from worn bearings, clutch components, or lubrication problems.
This guide explains the common signs of input shaft wear, important inspection points, and how to determine whether the shaft or related parts need replacement.
What Is a Transmission Input Shaft?
The transmission input shaft connects the engine's clutch assembly to the gearbox and transfers rotational power into the transmission.
In a typical manual transmission, the shaft receives torque through the clutch disc and drives the internal gear mechanism.
Its design may include clutch splines, bearing journals, gear teeth, and other machined surfaces, depending on the gearbox configuration.
Main Functions of the Input Shaft
The input shaft performs three important functions:
Torque Transmission: Transfers engine power into the gearbox.
Clutch Connection: Engages with the clutch disc through a splined interface.
Rotational Support: Works with bearings and related components to maintain shaft alignment.
Accurate shaft geometry and suitable material strength are essential for reliable transmission performance.
For replacement applications, explore our Input Shaft Toyota 33301-35080. Compatibility should be confirmed using the OE number and transmission model.
Common Symptoms of Transmission Input Shaft Wear
Input shaft wear symptoms vary depending on whether the damage affects the shaft itself, its bearings, or the clutch connection.
1. Unusual Noise in Neutral
A worn input shaft bearing may produce rumbling, whining, or grinding noises when the transmission is in neutral and the clutch pedal is released.
If the noise changes when the clutch is depressed, the input shaft bearing becomes one possible inspection point.
However, clutch release bearings and other transmission components can produce similar noises.
2. Difficulty Shifting Gears
Damaged input shaft splines may interfere with clutch disc movement, potentially preventing complete clutch disengagement.
This can lead to hard shifting or gear grinding.
Technicians should also inspect the clutch system, synchronizer rings, and shift linkage before attributing shifting problems to the input shaft.
3. Vibration During Transmission Operation
Excessive shaft runout, bearing clearance, or damaged supporting components may contribute to abnormal vibration.
Vibration may change with engine speed, clutch operation, or drivetrain load.
Since engine mounts, clutch components, and other rotating parts can cause similar symptoms, further diagnosis is necessary.
4. Transmission Fluid Leakage
Oil leakage near the transmission input area may indicate a damaged seal or problems with its mating surface.
Inspect the input shaft seal, bearing retainer, and related surfaces to identify the source.
Not every input-area leak indicates shaft wear.
5. Metal Particles in Transmission Oil
Metallic debris in transmission fluid can indicate internal component wear.
Inspecting drained oil and the magnetic drain plug may reveal abnormal metal accumulation.
However, debris alone cannot identify the input shaft as the failed component.
Transmission Input Shaft Wear: Symptoms and Possible Causes
| Symptom | Possible Cause | Recommended Inspection |
|---|---|---|
| Noise in neutral | Input shaft bearing or other rotating component wear | Bearing condition and clutch-related noise |
| Hard shifting | Damaged splines or clutch drag | Input splines and clutch operation |
| Abnormal vibration | Shaft runout or bearing damage | Shaft alignment and bearing clearance |
| Oil leakage | Seal or mating surface damage | Input seal and related surfaces |
| Metallic debris | Internal transmission wear | Fluid, gears, bearings, and shaft |
Important: These symptoms indicate possible transmission problems, not definitive confirmation of input shaft damage.

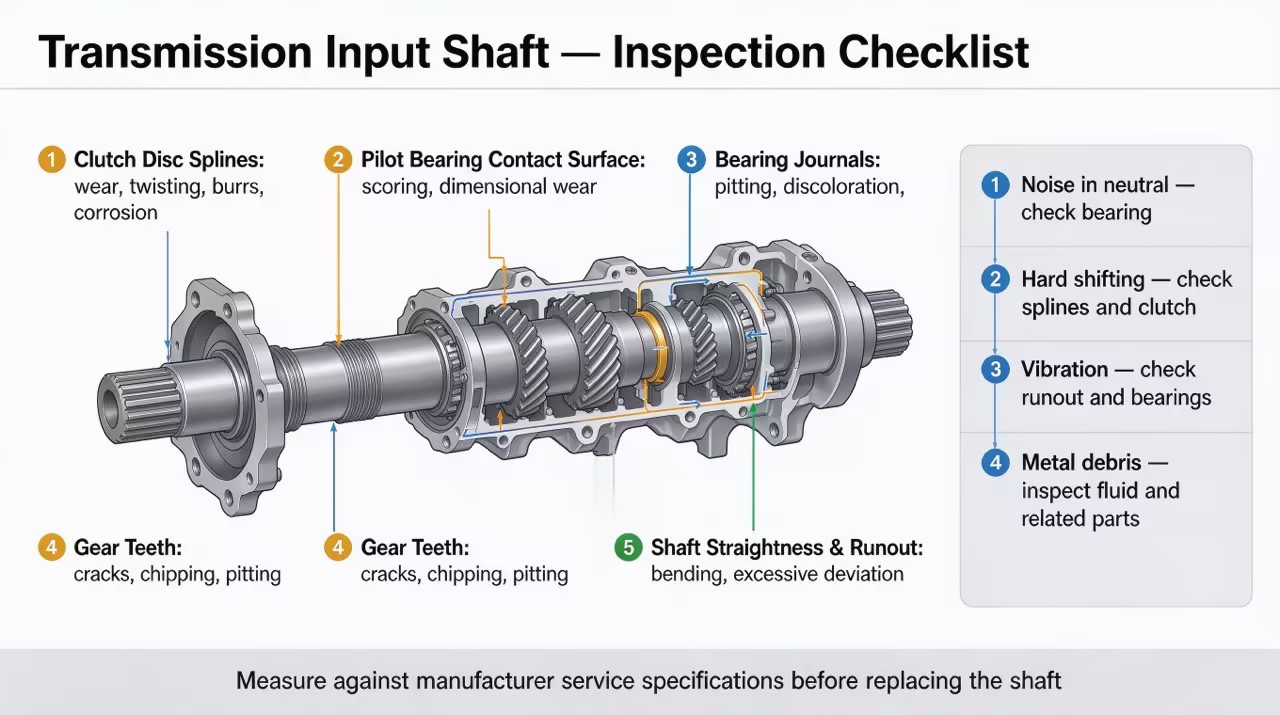

Key Inspection Points for a Transmission Input Shaft
A complete transmission input shaft inspection should focus on the areas responsible for torque transfer, rotational support, and clutch engagement.
1. Clutch Disc Splines
Inspect the shaft splines for abnormal wear, twisting, burrs, corrosion, or deformation.
Damaged splines may prevent the clutch disc from moving correctly, resulting in clutch drag and difficult shifting.
Check the mating clutch disc hub for corresponding damage.
2. Pilot Bearing Contact Surface
On transmissions that use a pilot bearing or bushing, inspect the shaft tip and mating support surface.
Scoring, excessive wear, or dimensional damage may affect shaft alignment and bearing operation.
3. Input Shaft Bearing Journals
Bearing journals should be inspected for scoring, pitting, discoloration, and abnormal wear.
Damaged contact surfaces can affect bearing fit and rotational stability.
Measure journal dimensions using the relevant service manual specifications.
4. Gear Teeth and Engagement Surfaces
Some input shaft designs include integrated gear teeth or engagement features.
Inspect these areas for cracks, chipping, pitting, or abnormal tooth wear.
Damaged gear teeth may produce noise and contribute to further transmission damage.
5. Shaft Straightness and Runout
An input shaft may become bent or distorted due to abnormal mechanical loading, impact damage, or improper handling.
Technicians should measure shaft runout using suitable inspection equipment and compare results with manufacturer tolerances.
Input Shaft Inspection Checklist
| Inspection Area | What to Look For | Potential Problem |
|---|---|---|
| Clutch Splines | Wear, twisting, burrs | Clutch engagement problems |
| Pilot Bearing Journal | Scoring, dimensional wear | Poor support or alignment |
| Bearing Journals | Pitting, discoloration, wear | Bearing fit problems |
| Gear Teeth | Chipping, cracks, pitting | Transmission noise or gear damage |
| Shaft Runout | Bending or excessive deviation | Vibration and alignment issues |
These inspection points are consistent with transmission service procedures that evaluate spline condition, bearing surfaces, gear teeth, and shaft alignment.
Input Shaft Wear vs. Input Shaft Bearing Failure
Input shaft wear and input shaft bearing failure are related but different problems.
The shaft is a structural component responsible for torque transmission, while the bearing supports its rotation.
A damaged bearing may generate noise or excessive movement even when the shaft remains serviceable.
How to Identify the Difference
| Evaluation Factor | Input Shaft Wear | Input Shaft Bearing Failure |
|---|---|---|
| Main Damage | Splines, journals, gear teeth, shaft body | Bearing races or rolling elements |
| Common Symptoms | Clutch engagement problems, vibration, gear damage | Rumbling, whining, rough rotation |
| Inspection Method | Visual inspection and dimensional measurement | Rotation, clearance, and surface inspection |
| Typical Repair | Replace damaged shaft | Replace defective bearing and inspect mating surfaces |
A worn bearing may also damage the input shaft journal if the problem continues.
For this reason, shaft and bearing condition should be evaluated together during transmission disassembly.
What Causes Premature Input Shaft Wear?
Several operating and maintenance factors can accelerate manual transmission input shaft wear.
Poor Lubrication or Contaminated Oil
Insufficient lubricant, incorrect fluid specifications, or contamination can increase wear on bearings and gear surfaces.
Regular fluid maintenance helps protect transmission components, although service requirements vary by gearbox model.
Misalignment and Bearing Problems
Damaged bearings, incorrect assembly, or alignment problems may introduce abnormal loads into the input shaft.
These conditions can contribute to vibration, surface damage, and premature wear.
Clutch System Problems
A damaged clutch disc hub, misaligned clutch components, or incomplete disengagement may place additional stress on the input shaft splines.
Inspecting related clutch components is important when diagnosing spline wear.
Excessive Mechanical Loads
Repeated shock loading, severe driving conditions, or operation beyond the transmission's intended capacity may contribute to component fatigue.
Actual durability depends on shaft design, material, heat treatment, and operating conditions.
How to Inspect a Transmission Input Shaft Step by Step
A qualified technician should follow the applicable vehicle or transmission service manual.
Step 1: Identify the Operating Symptoms
Record when unusual noises, vibration, or shifting problems occur.
Compare symptoms during clutch engagement and disengagement to help narrow down possible causes.
Step 2: Inspect External Components
Check the clutch system, transmission mounts, shift linkage, and lubricant condition before internal disassembly.
These components may create symptoms similar to input shaft damage.
Step 3: Remove and Inspect the Shaft
If internal inspection is required, remove and disassemble the transmission using suitable tools.
Inspect clutch splines, bearing journals, gear teeth, and other critical surfaces for damage.
Step 4: Measure Critical Dimensions
Use appropriate measuring instruments to check shaft runout, bearing journals, and related clearances.
Compare results with manufacturer specifications rather than applying universal tolerances.
Step 5: Inspect Related Components
Examine the input shaft bearings, pilot bearing where fitted, seals, clutch disc hub, and mating gears.
Replace components that fail inspection according to the service manual.
When Should a Transmission Input Shaft Be Replaced?
Not every gearbox noise requires input shaft replacement.
Replacement is generally considered when inspection identifies structural damage, excessive spline wear, damaged gear teeth, unacceptable journal wear, or shaft distortion beyond service limits.
Repair or Replace?
| Component Condition | Recommended Approach |
|---|---|
| Shaft surfaces within specification | Retain if otherwise serviceable |
| Bearing damaged, shaft undamaged | Replace bearing and verify shaft condition |
| Splines excessively worn or twisted | Replace affected shaft |
| Gear teeth cracked or chipped | Replace damaged component |
| Shaft bent beyond specifications | Replace shaft |
Some gearbox designs require the input shaft and associated components to be serviced as an assembly.
How to Choose the Right Replacement Input Shaft
Correct part identification is essential when sourcing transmission input shafts for repair or aftermarket distribution.
Before ordering, buyers should verify:
OE Part Number: Confirm the original replacement reference.
Vehicle Application: Check the make, model, and applicable production details.
Transmission Code: Identify the exact gearbox configuration.
Spline Specifications: Verify tooth count and mating dimensions.
Shaft Geometry: Confirm length, journal dimensions, and gear configuration.
Related Components: Check bearing and clutch compatibility.
Aimiky supplies transmission shafts and related gearbox replacement components for selected vehicle applications.
Explore our Transmission Parts to find related gearbox components and discuss replacement requirements.
Conclusion
Transmission input shaft wear can affect gearbox noise, shifting performance, and overall transmission reliability.
However, accurate diagnosis requires distinguishing shaft damage from bearing failure, clutch problems, and other transmission faults.
Inspecting splines, bearing journals, gear teeth, and shaft alignment helps technicians determine whether individual components or the complete shaft need replacement.
At Aimiky Auto Parts, we provide transmission shafts, gears, synchronizer components, and related automotive replacement parts.
Contact our team with your OE number, vehicle model, and transmission code to identify suitable replacement options.
Frequently Asked Questions
What are the symptoms of a worn transmission input shaft?
Possible symptoms include abnormal gearbox noise, difficult shifting, vibration, and clutch engagement problems. However, these symptoms may also result from bearing or clutch-related faults.
Can a bad input shaft bearing cause grinding noise?
Yes. A damaged input shaft bearing may cause rumbling, whining, or grinding. Noise patterns vary by transmission design and operating conditions.
Can worn input shaft splines cause hard shifting?
Yes. Excessive spline wear or deformation may interfere with clutch disc movement, potentially contributing to clutch drag and difficult gear engagement.
How do you check transmission input shaft wear?
Inspect the shaft splines, bearing journals, gear teeth, and pilot bearing contact area. Measure critical dimensions and compare them with the relevant transmission service specifications.
Can I replace only the input shaft bearing?
In some transmissions, a defective bearing can be replaced without replacing the shaft, provided the shaft and mating surfaces remain within specification.
How do I find the correct transmission input shaft replacement?
Use the OE number, gearbox model, vehicle application, and shaft dimensions to verify compatibility. Confirm fitment before ordering replacement parts.
