Differential Actuator Working Principle & 4WD Engagement Logic

A flashing 4WD light or a vehicle refusing to engage four-wheel drive when leaving the pavement points directly to a breakdown in the drivetrain's electronic-to-mechanical bridge. Vehicle owners and technicians frequently misdiagnose 4WD failures. They confuse transfer case issues with front differential faults, leading to unnecessary and expensive parts replacement. Resolving drivetrain engagement issues requires a systematic understanding of the 4WD signal chain. You must execute precise diagnostic testing, ranging from acoustic checks to multimeter validation. Furthermore, evaluating repair versus replacement costs for the Differential Actuator ensures a permanent fix without wasting money on the parts cannon. This guide breaks down the exact engagement logic, common failure points, and step-by-step testing procedures to restore four-wheel drive functionality.

• Sequential Logic: 4WD engagement is a strict chain of events; a failure in the transfer case actuator or position sensors will halt the signal before it ever reaches the front differential actuator.

• Zero-Cost Diagnostics: Utilizing the "Whir Test" (listening for motor engagement without engine noise) can isolate electronic motor failures from mechanical vacuum leaks, switch failures, or sensor desynchronization.

• Catastrophic Risk: An actuator stuck in the locked position on dry pavement causes severe drivetrain binding, risking catastrophic mechanical failure to the CV axles and transfer case, alongside a noticeable spike in fuel consumption.

• Replacement Realities: While rebuilding an actuator is possible, improper gear timing during reassembly will cause continuous ECU errors. Total replacement costs typically range from $400 to $900 (and up to $1,100 for heavy-duty diesel platforms), depending on OEM vs. aftermarket parts.

How a 4WD Differential Actuator Fits into the Drivetrain

The Electronic-to-Mechanical Bridge

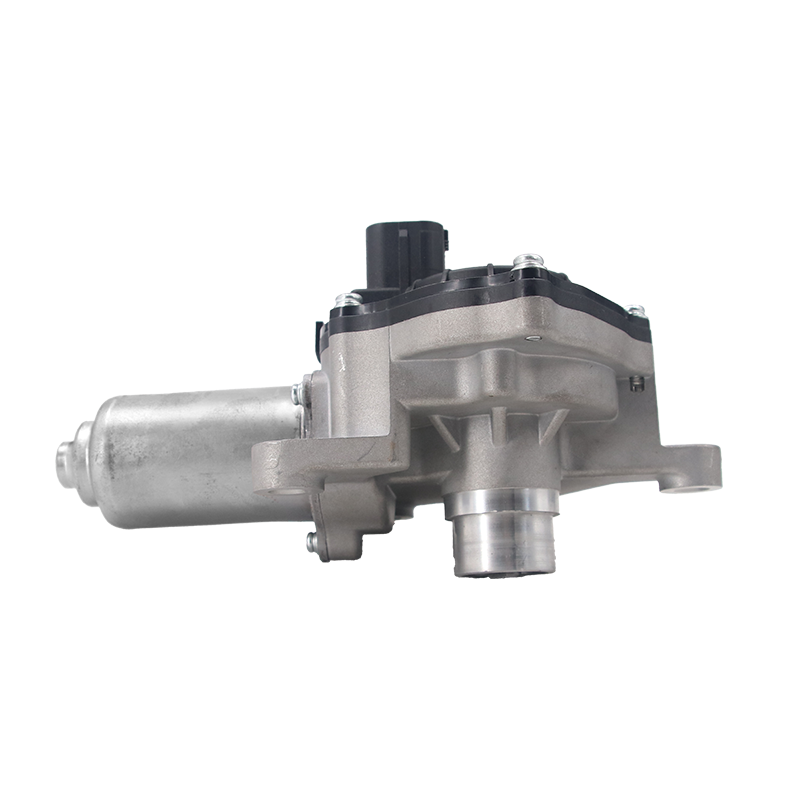

The actuator operates as a dedicated electromechanical solenoid. It translates a low-voltage digital cabin input into massive physical mechanical force. This force drives a shift fork across a splined shaft to lock the drivetrain. The internal components consist of a permanent magnet DC motor, a planetary gear reduction set, and a sliding contact plate. The gear reduction multiplies the small motor's torque. This allows it to push the heavy steel locking collar against the resistance of thick gear oil and axle friction.

The Chain of Events: Switch to 4WD Engagement

Engaging four-wheel drive follows a strict, non-negotiable signal flow. The process begins when the driver turns the cabin dial. The switch sends a 5-volt reference signal to the 4WD control module. The module verifies vehicle speed via the CAN bus. It then sends a 12-volt command to the transfer case shift motor. The transfer case engages the front driveshaft. A position sensor inside the transfer case verifies this mechanical movement. Only after receiving this confirmation does the module send power to the front axle actuator. The actuator moves the shift fork to lock the CV axles. Finally, the axle position sensor sends a ground signal back to the module, illuminating the solid 4WD light on the dashboard.

ADD (Automatic Disconnecting Differential) vs. Standard 4WD & AWD

The Automatic Disconnecting Differential (ADD) system physically separates the front wheels from the differential carrier during 2WD operation. This stops the heavy ring and pinion gears from spinning while driving on the highway. Disconnecting these components reduces parasitic mechanical drag. It minimizes bearing wear and noticeably improves fuel consumption. Mechanically, a vacuum diaphragm or an electric motor pushes a locking sleeve to bridge the gap between the front half-shaft and the differential carrier. Standard AWD systems use a fluid-filled center differential to allow constant speed differences between the front and rear axles. Shifting a traditional 4WD system into 4H mechanically locks the center transfer case, forcing the front and rear driveshafts to spin at identical speeds.

4H/4L vs. True Differential Lock Servo

Engaging standard 4H or 4L sends equal power to the front and rear axles. However, the differentials on those axles remain open. An open differential sends power to the path of least resistance. If one wheel lifts off the ground, it will spin freely while the wheel with traction receives zero torque. A Differential Lock Servo eliminates this flaw. It physically pins the internal spider gears to the differential carrier housing. A Diff Lock Motor forces both wheels on a single axle to rotate at the exact same speed regardless of traction conditions. This mechanical synchronization provides maximum forward momentum in severe cross-axle off-road situations.

5 Symptoms of a Failing 4WD Differential Actuator

Flashing 4WD Light & False Engagement

A flashing 4WD indicator light serves as the primary warning of a system abort. The dashboard indicates an engagement attempt, but the front wheels receive zero torque. This false engagement occurs because the transfer case successfully locked the front driveshaft, but the front actuator failed to slide the locking sleeve. The vehicle remains effectively in 2WD. The control module flashes the light to warn the driver that the front axle position sensor never reported a successful lock.

Stuck in 4WD (Drivetrain Binding & Fuel Drain)

An actuator that engages but refuses to release poses a severe mechanical threat. Driving on dry pavement with a locked front axle causes massive drivetrain binding. During a turn, the front tires must travel a wider arc than the rear tires. A locked system prevents this speed difference. You will experience heavy, resistant steering effort. The front tires will scrub, chirp, and drag across the asphalt. This binding places immense stress on the transfer case chain and CV joints. You will also notice a sudden drop in fuel economy, often losing 2 to 4 miles per gallon due to the parasitic drag.

Intermittent Engagement & Cold Weather Binding

Temperature-dependent failures plague older vehicle platforms. Factory lithium grease inside the actuator housing degrades and oxidizes over time. In sub-zero temperatures, this degraded grease thickens into a dense, clay-like substance. The internal DC motor lacks the torque required to push the shift fork through this hardened grease. The system might engage perfectly during a warm summer afternoon but fail completely during a freezing winter morning. Legacy GM platforms utilizing specific SW-series actuators suffer heavily from these cold-weather lockouts.

Grinding Noises & Mechanical Clicking

Acoustic symptoms point directly to internal mechanical destruction. An E-Locker Actuator attempting to drive a seized worm gear will produce loud metallic clicking noises. The electric motor spins, but the stripped plastic or brass gears slip against each other. You will hear this rapid clicking emanating from the front chassis during engagement attempts. If the shift fork only partially engages the splined collar, you will hear a harsh metallic grinding noise as the gear teeth skip under load.

The "Silent Failure" (No Low-Range Access)

The silent failure presents no dashboard warning lights, yet the vehicle refuses to shift into 4L. You turn the dial to low range, but the system ignores the command. The control module logic dictates this behavior. The computer requires a confirmed, successful 4H engagement before it allows the transfer case to shift into low gear reduction. If the front differential actuator fails to send the 4H confirmation signal, the computer halts the sequence. It protects the transfer case from shifting into low range while the front axle remains disconnected.

Root Causes of E-Locker Actuator & ADD Failures

Breather Hose Degradation & Water Intrusion

The most common engineering flaw involves the rubber breather hose attached to the actuator housing. The differential heats up significantly during highway driving. When you submerge the hot axle in a cold puddle or stream, the housing cools rapidly. This rapid cooling creates a vacuum inside the casing. If the rubber breather hose is cracked or degraded, the vacuum pulls muddy water directly into the actuator housing. The water immediately rusts the internal DC motor, corrodes the copper windings, and seizes the worm gear.

Electrical Connector Corrosion & Coil Shorting

Exposure to road salt, magnesium chloride, and deep water destroys the external electrical connections. The weather pack seal on the wiring harness connector eventually shrinks and fails. Salty water bridges the gap between the 12-volt power pins and the ground pins. This creates a high-resistance short circuit. The corrosion causes severe voltage drops, preventing the motor from generating enough torque to move the fork. Furthermore, rapid and repeated switching between drive modes can overheat the internal motor coils, melting the protective lacquer and causing a dead short.

Internal Seal Failure & Vacuum Leaks

Older truck platforms utilize engine vacuum rather than electric motors to engage the axle. A 4WD Differential Actuator relies on a flexible rubber diaphragm to pull the shift fork. Years of exposure to engine heat, ozone, and oil vapors cause this rubber diaphragm to dry rot, stiffen, and tear. Once the diaphragm tears, the engine vacuum leaks into the atmosphere instead of building the negative pressure required to move the heavy locking fork.

Position Switch & Sensor Desynchronization

The actuator contains a small internal contact wiper board. This board tells the computer the exact physical position of the shift fork. Micro-arcing occurs across these copper contacts during thousands of shift cycles. Over time, this arcing burns the copper and creates carbon buildup. The electric motor might move the fork perfectly into the locked position, but the burned contacts fail to send the ground signal back to the computer. This desynchronization halts the entire 4WD engagement process despite perfect mechanical functionality.

Step-by-Step Diagnostic Framework (Before Buying Parts)

The "Whir Test": Zero-Cost Acoustic Diagnosis

You can isolate the failure point without any tools using the acoustic whir test. Park the vehicle in a quiet environment. Turn the ignition key to the ON position, but do not start the engine. Roll down the driver-side window. Turn the dial to 4HI and listen closely under the chassis.

• Whir + Solid Click: You hear a one-second electric whirring from the center of the truck, followed by a solid metallic clunk from the front axle. This indicates normal motor function and successful sleeve engagement.

• Continuous Beep or Clicking: The transfer case motor is seized, the internal gear timing is off, or the gears are stripped.

• Complete Silence: The system is dead. This points to a seized differential motor, a blown 4WD fuse, a damaged wiring harness, or a failed cabin switch.

OBD-II U-Series & P-Series Code Scanning

A standard cheap code reader will not access the 4WD control module. You must use a bi-directional scan tool capable of reading proprietary chassis and network codes. U-codes indicate a loss of network communication between modules. P-codes reveal specific circuit high or low faults, guiding you directly to the electrical issue.

Multimeter Continuity & 12V Direct Drive Testing

Do not guess and throw parts at the vehicle; test the raw voltage at the axle.

• Safely support the vehicle on jack stands and locate the front actuator.

• Disconnect the main wiring harness from the actuator housing.

• Set your digital multimeter to measure DC volts.

• Probe the main power and ground pins on the harness while an assistant turns the 4WD switch in the cabin.

• Verify that a full 12.6 volts reaches the connector. If voltage is low, trace the harness backward to find the corroded wire.

• If full voltage is present at the harness, apply direct battery power to the actuator pins using fused jumper wires.

• If the motor does not move with direct battery power applied, the internal motor is dead.

Isolating the Transfer Case vs. Front Differential

You must determine which half of the 4WD system failed. Safely lift all four wheels off the ground using a professional two-post hoist. Start the engine, place the transmission in drive, and engage 4HI. Look under the vehicle. If the rear wheels spin but the front driveshaft remains stationary, the transfer case shift motor has failed. If the front driveshaft spins rapidly but the front wheels do not move, the transfer case is working perfectly, and the front differential actuator has failed to lock the half-shafts.

Repair vs. Replace: TCO and Implementation Realities

The Risks of Rebuilding (Gear Timing & Grease)

Some technicians attempt the DIY rebuild route by opening the sealed housing, cleaning the burned contacts, and replacing the O-rings. This carries massive implementation risks. Reassembling the unit requires absolute perfection regarding internal gear timing. The main drive gear features a microscopic alignment dot. If you miss this alignment dot by a single gear tooth during reassembly, the position sensor will send incorrect location data to the computer. The module will immediately flag a fault, resulting in a permanent flashing 4WD light and a disabled system.

OEM vs. Aftermarket Replacement Costs

Understanding the Total Cost of Ownership (TCO) prevents expensive rework. Buying a complete, factory-new unit is the most reliable repair path. A high-quality Differential Lock Actuator ensures proper weather sealing and correct factory gear timing. Cheap aftermarket units often use inferior rubber seals that leak within the first year of off-road use.

Preventative Maintenance: The "Monthly 4HI" Rule

Lack of routine use destroys these electromechanical components. The internal shift fork sits above the static gear oil level. It relies entirely on splash lubrication generated by the spinning ring gear. If you do not engage the system regularly, the steel fork rusts to the splined shaft. Establish a strict standard operating procedure: engage 4WD for 10 miles every single month. Execute this routine on a loose dirt road, gravel surface, or during heavy rain to prevent driveline binding. This practice circulates the heavy gear oil, lubricates the actuator fork, and exercises the electric motor to prevent seizure.

Conclusion

• Perform a direct 12V bypass test on the actuator pins to definitively rule out wiring harness voltage drops before purchasing parts.

• Inspect the rubber breather hose for dry rot and route a new extended line higher into the engine bay to prevent water intrusion.

• Coat the external electrical connector pins with dielectric grease before installing the replacement unit to block future corrosion.

• Execute the "Monthly 4HI" driving routine on loose gravel to maintain internal splash lubrication and prevent the shift fork from rusting.

FAQ

Q: What is the difference between a differential actuator and a transfer case motor?

A: A transfer case motor mounts to the center of the vehicle and engages the front driveshaft to send power from the transmission forward. The differential actuator mounts directly on the front axle and locks the CV half-shafts to the differential carrier, delivering that power to the wheels.

Q: Can I drive my truck if the 4WD differential actuator is stuck engaged?

A: Driving on dry pavement with a stuck actuator causes severe drivetrain binding. This leads to heavy steering, accelerated tire wear, and risks catastrophic mechanical damage to the transfer case chain, spider gears, and CV axles.

Q: Why is my 4WD light flashing but the front wheels won't pull?

A: A flashing light indicates the control module aborted the engagement sequence. This usually means the transfer case engaged successfully, but the front differential actuator failed to lock the sleeve or its internal position sensor failed to report success.

Q: How much does it cost to replace a differential lock servo?

A: Total replacement costs typically range from $400 to $900, factoring in both parts and labor. Heavy-duty diesel trucks or complex platforms requiring steering rack removal may see costs rise up to $1,100 depending on OEM part pricing.

Q: Can a bad vacuum line cause my ADD actuator to fail?

A: Yes. In vacuum-actuated ADD systems, a cracked or dry-rotted vacuum line prevents the engine from generating enough negative pressure to move the heavy locking fork, resulting in a complete failure to engage 4WD.

Q: Do I need to reprogram the ECU after installing a new 4WD differential actuator?

A: Generally, no ECU reprogramming is required for a direct mechanical replacement. However, clearing the existing OBD-II fault codes with a bi-directional scanner is necessary to reset the module logic and turn off the flashing 4WD indicator.
