Pickup Differential: Why Trucks Need Heavy-Duty Differentials

High-torque applications place immense stress on factory drivetrains. This is especially true in diesel trucks. The differential becomes a primary point of failure under heavy towing or off-highway conditions. A failing differential does not just stop a truck. Due to the lack of internal filtration, gear wear creates a cascade of metal debris. This debris destroys bearings and housings rapidly. The result is catastrophic downtime and inflated repair costs for fleet managers and owner-operators.

Selecting the right heavy duty Pickup Differential requires careful evaluation. You must assess gear ratios and locking mechanisms accurately. Furthermore, understanding the strict Total Cost of Ownership (TCO) differences between rebuilding and replacing is essential. This guide breaks down the mechanical realities of drivetrain stress and provides actionable strategies for component longevity.

• Torque Multiplication Matters: Matching your final drive gear ratio (e.g., 3.08:1 for highway fuel economy vs. 4.30:1 for heavy towing) to your primary application is non-negotiable for component longevity.

• Application Dictates Type: Open differentials suffice for standard highway use, but off-highway applications require Limited-Slip (LSD) or full locking mechanisms to prevent traction loss and drivetrain strain.

• Maintenance is Critical: Differentials lack oil filters; utilizing exact fluid specifications (like GL-5 75W-90 or 75W-140) and adhering to strict replacement intervals (as frequent as every 30,000 miles for heavy towing) prevents the "domino effect" of gear failure.

• Rebuild vs. Replace: Diagnosing specific operational noises (whining vs. clunking) and assessing the ~200,000-mile physical lifespan benchmark dictates whether a cost-effective rebuild is viable or if a complete replacement pickup differential is required.

The Mechanical Reality of a Pickup Differential Under Load

Component Breakdown and Stress Points

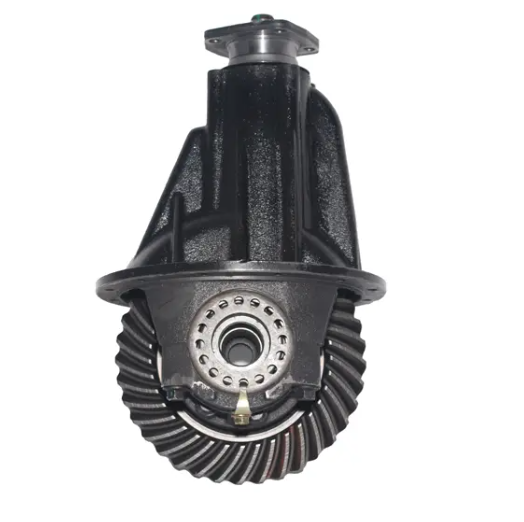

The internal architecture of a Pickup Differential relies on precise mechanical synchronization. The input shaft connects directly to the transmission via the driveshaft. Power transfers through the pinion gear to the ring gear. Spider gears sit inside the carrier to allow differential action. Finally, the output axles deliver rotational force to the wheels. Every component must maintain exact tolerances to function properly.

The final drive ratio dictates how power reaches the ground. You calculate this ratio by dividing the number of teeth on the ring gear by the number of teeth on the pinion gear. A higher number means more torque multiplication. This mechanical setup prevents tire scrubbing during turns. The differential manages wheel speed discrepancies seamlessly. It allows the outer wheel to travel further and faster than the inner wheel. This prevents handling instability and premature tire wear.

To understand the stress points, consider the following components that bear the most load during operation:

• Pinion Bearings: These support the pinion gear and absorb the initial shock of torque transfer.

• Ring Gear Teeth: These endure extreme shearing forces when pulling heavy payloads from a dead stop.

• Carrier Housing: This cast iron or aluminum shell must resist warping under high heat and pressure.

The Diesel Factor: Why High-Torque Engines Demand Upgrades

Diesel engines generate massive low-end torque compared to gas engines. This distinct stress profile translates directly to the differential. Factory components often struggle to manage this rotational force during heavy payload hauling. Exceeding design parameters leads to specific, predictable failure points. Excessive gear backlash is a common result of torque overload. Loss of bearing preload quickly follows, causing internal misalignment.

These extreme forces necessitate a robust solution. Upgrading to a heavy-duty unit provides reinforced housings and higher-spline axles. Thicker ring gears resist deflection under load. Upgraded pinion bearings maintain alignment when torque spikes occur. Standard components simply cannot survive continuous diesel towing applications without accelerated wear.

Evaluating Differential Architectures for Heavy-Duty Applications

Open vs. Limited-Slip (LSD) Differentials

Open differentials offer low resistance and predictable on-highway behavior. They are cost-effective and highly reliable for standard logistics. However, power routes to the path of least resistance. This causes immediate spin-outs in low-traction environments. Limited-Slip Differentials (LSD) solve this problem. They use friction modifiers and clutch packs to transfer torque to the gripping wheel. LSDs require specialized fluid additives. Without these additives, clutch pack chattering and premature wear occur rapidly.

On-highway logistics strongly favor open setups for maximum fuel efficiency. Off-highway construction and agriculture require LSDs to maintain momentum. An open unit will leave a truck stranded in mud. An LSD provides the necessary traction without binding the drivetrain on pavement.

Full Locking Differentials (Cross Locks)

Full locking differentials mechanically lock both axle shafts together. They force both wheels to spin at identical speeds. This provides 100 percent torque output for extreme environments like logging or mining. When engaged, traction is absolute. However, operators must avoid three fatal operational mistakes to prevent destruction.

• Never engage a locker on dry pavement. This causes massive drivetrain binding and axle failure.

• Never engage the lock during active wheel slip or spin-out. Doing so causes a catastrophic mechanical "bang" and shears gear teeth instantly.

• Never engage the locker during a turn. The truck will resist steering inputs and push straight ahead.

Inter-Axle Locks (Power Dividers) vs. Differential Locks

Trucker terminology for multi-axle setups requires clarification. Inter-axle locks, or Power Dividers, lock the front and rear drive axles together. It is safe to engage them at speed if the wheels are not slipping. Cross locks, however, lock side-to-side on a single axle. They require extreme caution.

Dashboard configurations vary by application. A "3/4 locker" setup includes the inter-axle lock and a front drive axle lock. A "full locker" configuration includes the inter-axle lock plus both front and rear drive axle locks. Understanding these switches prevents accidental drivetrain damage.

Sourcing Strategy: OEM vs. High Performance Pickup Differential

When to Specify a Genuine Pickup Differential (OEM)

Evaluating baseline reliability makes a genuine Pickup Differential highly attractive. OEM units guarantee exact fitment and maintain strict warranty compliance. Brand-specific OEM traits offer unique advantages. Volvo utilizes proprietary axles focused heavily on fuel efficiency. Mack integrates their drivetrains specifically for vocational dump trucks. These factory setups provide predictable lifespans.

The best use cases for OEM components include fleet standardization and on-highway logistics. Standard payload towing rarely exceeds factory specifications. Using an OEM Pickup Differential ensures predictable maintenance schedules across multiple vehicles.

Justifying a High Performance Pickup Differential

Specialized applications demand aftermarket upgrades. Analyzing the ROI of a high performance Pickup Differential reveals long-term savings for heavy haulers. Major manufacturers provide distinct advantages. Eaton offers advanced locking systems for maximum traction. Meritor provides extreme durability and widespread parts availability. Dana Spicer excels in steer axles and specialized routing.

Advanced torque-vectoring differentials integrate seamlessly into off-highway environments. They use electronic controls to route power precisely where needed. This technology prevents wheel slip before it occurs. Upgrading to these systems reduces tire wear and prevents shock-loading the drivetrain.

Selecting the Optimal Gear Ratio

Choosing the correct final drive ratio is vital for performance. Low ratios, such as 3.08:1, lower engine RPMs significantly. This maximizes fuel economy for high-speed cruising. Highway fleets rely on low ratios to reduce operating costs over long distances.

Conversely, high ratios like 4.30:1 maximize low-end pulling power. They are necessary for off-road capability and heavy towing. A high ratio gets heavy loads moving easier from a dead stop. However, it will reduce top speed and increase highway fuel consumption. Match the ratio strictly to the primary operating environment.

Rebuild vs. Replace: A TCO and Diagnostic Matrix

Acoustic and Physical Diagnostics: Decoding Drivetrain Failure

Listening to your drivetrain provides early warning signs. Whirring during deceleration is a strong indicator of pinion bearing wear. Whining or howling during acceleration indicates ring gear wear or severe fluid degradation. These noises mean internal tolerances are failing.

Banging or clunking every few feet is a critical emergency. It indicates sheared gear teeth or severe physical housing damage. Floorboard vibrations point to driveshaft or axle imbalance. Visible seal leaks lead to rapid overheating and lubrication starvation. Address these physical symptoms immediately to prevent total lockup.

Modern Diagnostic Methods Before Teardown

Professional shops utilize advanced techniques to assess health without dropping the axle. Vibration analysis pinpoints exact bearing failures. Temperature monitoring identifies localized overheating caused by friction. These non-invasive methods save hours of labor.

Fluid testing is the most effective diagnostic tool. Analyzing metal content and remaining additives reveals the internal wear rate. High iron content indicates gear wear. Depleted additives explain clutch pack chatter. Fluid analysis dictates the urgency of repairs.

Cost-Benefit Analysis of a Replacement Pickup Differential

A full rebuild requires extensive labor hours and specialized tooling. Technicians must replace bearings, shim gears, and set exact backlash. This process is time-consuming and prone to human error. Conversely, dropping in a complete replacement Pickup Differential minimizes shop time.

Downtime costs often exceed parts costs. The physical lifespan benchmark for these components is roughly 200,000 miles. Fleets often opt for a full replacement to get trucks back on the road faster. A complete replacement resets the component lifecycle entirely, offering better long-term reliability than a piecemeal rebuild.

Preventive Maintenance and Future-Proofing

Mitigating the "No Filter" Vulnerability (The Domino Effect)

Differentials suffer from a unique cascade failure path. They lack internal oil filters. Lubrication breakdown allows metal shavings to circulate freely. These shavings act like sandpaper on internal components. Gear backlash increases as metal wears away. Bearing misalignment follows quickly.

Extreme heat eventually warps the housing, leading to complete mechanical seizure. Establish strict baseline maintenance intervals to prevent this. Change fluids every 30,000 miles for heavy towing applications. Standard highway use can extend up to 150,000 miles. Always specify heavy-duty hypoid gear oils, specifically GL-5 rated 75W-90 or 75W-140, to withstand extreme pressure between gear teeth.

The Evolution of Drivetrains: E-Axles and Distributed Drive

Electric heavy-duty trucks are changing drivetrain requirements. Traction loss in E-Axle configurations presents new challenges. These setups often have reduced ground clearance and increased unsprung mass. Traditional mechanical lockers add unnecessary weight and complexity to electric axles.

Software-based traction control (ESC) is replacing mechanical systems. Dual-motor distributed drive architectures offer electronic torque vectoring. They independently brake or power individual wheels instantly. This digital approach eliminates the need for heavy mechanical locking differentials in modern electric logistics vehicles.

Conclusion

The choice between an OEM replacement and a heavy-duty upgrade hinges entirely on your engine's torque output, payload weight, and primary operating environment. Assess whether your truck spends its life on the highway or navigating off-road job sites. Prioritize final drive gear ratio matching and locker type before evaluating specific aftermarket brands.

To ensure your drivetrain remains reliable, follow these next steps:

• Schedule an immediate acoustic diagnostic test to identify any whirring or clunking noises.

• Perform a fluid metal analysis to determine the internal wear rate of your current setup.

• Verify your final drive ratio matches your primary towing and payload requirements.

• Consult with a drivetrain specialist to decide between a targeted rebuild or a full replacement unit.

FAQ

Q: How do I know if my pickup differential is failing before it breaks?

A: Listen for abnormal noises. Whirring during deceleration indicates pinion bearing wear. Whining during acceleration points to ring gear damage. Visible oil leaks around the seals or vibrations felt through the floorboard are also immediate warning signs of impending failure.

Q: What is the difference between an OEM pickup differential and a heavy-duty aftermarket unit?

A: OEM units match factory specifications for standard towing and highway use. Heavy-duty aftermarket units feature reinforced housings, thicker ring gears, and upgraded bearings designed specifically to handle the massive low-end torque of diesel engines and extreme off-road payloads.

Q: Can I change the gear ratio when installing a replacement pickup differential?

A: Yes, but it changes vehicle dynamics. A lower ratio improves highway fuel economy by lowering RPMs. A higher ratio increases low-end pulling power for heavy towing but reduces top speed. Four-wheel-drive trucks must have matching ratios in both front and rear axles.

Q: Why do diesel trucks require specific heavy-duty differentials?

A: Diesel engines produce significantly more low-end torque than gas engines. This immense rotational force transfers directly to the differential. Standard factory gears and bearings can suffer from excessive backlash and misalignment under this continuous heavy stress.

Q: What happens if I use standard gear oil in a Limited-Slip Differential (LSD)?

A: Standard gear oil lacks the necessary friction modifiers required by LSD clutch packs. Without these specific additives, the clutch plates will bind and release aggressively, causing a severe chattering noise during turns and leading to rapid, premature wear of the internal components.

Q: What is the "domino effect" of differential failure?

A: Because differentials lack oil filters, initial gear wear creates metal shavings that circulate in the fluid. This contaminated fluid destroys bearings, causing misalignment. Misalignment creates extreme heat, which warps the housing and destroys seals, ultimately leading to complete mechanical seizure.

Q: Is it more cost-effective to rebuild or buy a replacement pickup differential?

A: It depends on downtime costs and mileage. Rebuilding requires extensive, expensive labor to replace bearings and set gear backlash. If the unit has over 200,000 miles, buying a complete replacement is often more cost-effective as it minimizes shop downtime and resets the entire component lifecycle.
