How to Pick Correct Crown Wheel Pinion Gear Ratio for Larger Off-Road Tires

Upgrading to larger off-road tires instantly changes vehicle dynamics. It alters the effective gearing, resulting in sluggish acceleration, poor fuel economy, and excessive transmission wear. Selecting the correct gear ratio restores factory performance and protects drivetrain components. When a vehicle leaves the factory, engineers calibrate the engine, transmission, and differential gears to work with the stock tire diameter. Installing taller tires disrupts this balance. It effectively lowers the engine RPM at any given speed, forcing the powertrain to work harder.

This guide explains how to calculate the exact ratio needed for oversized tires. It details the mechanical impact of gear changes and outlines how to select durable differential components for demanding off-road applications. Understanding the relationship between tire diameter and gear ratios allows drivers to regain lost power, improve low-speed crawl control, and prevent premature transmission failure when modifying a four-wheel-drive vehicle.

Key Takeaways

• Calculate the target gear ratio using the standard mathematical formula before purchasing new tires to budget for drivetrain upgrades accurately.

• Match front and rear differential gears simultaneously in four-wheel-drive vehicles to prevent catastrophic transfer case binding.

• Purchase a master installation kit with new bearings, shims, and seals whenever upgrading ring and pinion gears.

• Hire a professional driveline specialist for installation to ensure precise backlash and pinion depth measurements.

• Execute a strict 500-mile break-in period and perform a mandatory fluid change to ensure the longevity of new gears.

The Mechanics of Tire Upgrades and Gearing

Tires act as the final gear in a vehicle's drivetrain. Increasing tire diameter changes the final drive ratio, which directly impacts how engine torque transfers to the ground. A larger tire covers more distance per revolution. While this theoretically increases top speed, it severely reduces the mechanical advantage needed to accelerate the vehicle or climb obstacles. The tire functions as a lever against the axle shaft; a longer lever (taller tire) requires more force to turn.

Furthermore, larger off-road tires carry significantly more mass than factory street tires. Mud-terrain and all-terrain tires feature thick sidewalls and deep tread blocks, adding substantial unsprung weight and rotational mass to each corner of the vehicle. The engine must overcome this additional mass every time the vehicle accelerates from a stop. Without a corresponding change in the axle gearing, the engine struggles against this increased resistance.

The Impact on Engine RPM and Transmission

When tire size increases without a gear change, the engine operates at a lower RPM at cruising speeds. This drops the engine out of its optimal power band. Modern overdrive transmissions rely on specific RPM ranges to keep the torque converter locked and maintain fluid pressure. When the RPM drops too low, the transmission will frequently hunt between gears, shifting down to maintain speed on slight inclines and shifting up again on flat surfaces.

This constant shifting generates excessive heat inside the transmission case. Heat is the leading cause of automatic transmission failure in modified off-road vehicles. It breaks down the chemical properties of the transmission fluid, reducing its ability to lubricate and cool internal clutches and bands. Restoring the mechanical advantage through axle re-gearing keeps the transmission in its intended operating range, preventing this destructive heat cycle.

Restoring Mechanical Advantage

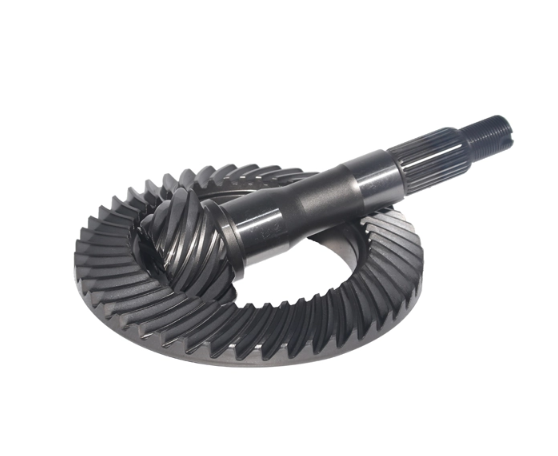

To restore the vehicle's original mechanical advantage, mechanics must replace the gears inside the axle housing. This involves installing a new Crown Wheel Pinion with a numerically higher ratio. A higher numerical ratio, such as moving from a factory 3.73 to an aftermarket 4.56, means the driveshaft must turn more times to rotate the tires once. This multiplication of torque brings the engine RPM back into the efficient power band and drastically reduces the strain placed on the transmission and torque converter.

Understanding Gear Ratios and Off-Road Performance

A gear ratio represents the mathematical relationship between the number of teeth on the ring gear and the pinion gear. For example, if a ring gear has 41 teeth and the pinion gear has 10 teeth, the ratio is 4.10:1. The driveshaft turns 4.10 times for every single rotation of the tire. Understanding this relationship helps owners select the correct setup for their specific driving habits.

Daily Driving vs. Rock Crawling

The ideal ratio depends heavily on how the vehicle is used. A daily driver that occasionally sees dirt trails requires a balance between highway fuel economy and low-end torque. For these vehicles, matching the factory effective ratio is usually sufficient. Conversely, a dedicated rock crawler benefits from the highest numerical ratio possible. Deep gears provide maximum torque multiplication and ultra-slow crawl speeds, allowing the vehicle to navigate boulders without stalling or requiring excessive throttle input.

Matching Front and Rear Axles

Four-wheel-drive vehicles require matching gear ratios in both the front and rear axles. If the ratios differ by more than 1%, the drivetrain will bind when four-wheel drive is engaged. The front tires will attempt to spin at a different speed than the rear tires, leading to catastrophic failure of the transfer case, driveshafts, or axle shafts. When upgrading, owners must always purchase a matching Ring and Pinion Kit for both ends of the vehicle to maintain synchronization.

How to Calculate the Correct Gear Ratio

Finding the right gear ratio requires a simple mathematical formula. This calculation helps determine the exact ratio needed to return the vehicle to its stock effective gearing after installing larger tires. Mechanics use this baseline to make informed recommendations based on the owner's performance goals.

The Standard Gear Ratio Formula

Use the following formula to find the baseline replacement ratio:

(New Tire Diameter ÷ Old Tire Diameter) × Original Gear Ratio = New Effective Gear Ratio

Consider a truck that originally came with 30-inch tires and a 3.73 gear ratio. If the owner upgrades to 35-inch tires, the calculation looks like this:

(35 ÷ 30) × 3.73 = 4.35

Since 4.35 is not a standard gear size manufactured by aftermarket companies, the closest available options are usually 4.10 or 4.56. For off-road applications, mechanics generally recommend rounding up to the next numerically higher ratio. Selecting the 4.56 ratio compensates for the added weight, increased rolling resistance, and aerodynamic drag created by the larger tires and suspension lift.

Step-by-Step Calculation Examples

• Identify Factory Specifications: Locate the vehicle's original tire diameter on the driver's side door placard. Find the factory axle ratio by checking the differential tag or decoding the Vehicle Identification Number (VIN).

• Measure the New Tires: Do not rely solely on the sidewall numbers. A tire labeled as 35 inches often measures closer to 34.2 inches when mounted and inflated. Use a tape measure to find the true diameter for accurate calculations.

• Apply the Formula: Divide the true new diameter by the true old diameter, then multiply by the factory gear ratio.

• Adjust for Weight: Add an additional 3% to 5% to the calculated ratio if the vehicle features heavy steel bumpers, winches, or rooftop tents.

Comprehensive RPM and Gear Ratio Chart

The table below provides a detailed look at engine RPM at 65 MPH based on different tire sizes and gear ratios. These calculations assume a 1:1 transmission gear ratio (typically third gear in a 4-speed automatic or fourth gear in a 5-speed manual). Overdrive gears will lower these RPM numbers by approximately 20% to 30%, depending on the specific transmission model.

Drivers should aim to keep their highway cruising RPM between 2200 and 2600 for optimal fuel efficiency and engine cooling. Vehicles used primarily for towing or rock crawling benefit from pushing the cruising RPM closer to 2800 or 3000 to maximize available torque.

Terrain-Specific Gear Selection

Different off-road environments demand different gearing strategies. A setup that works perfectly for high-speed desert racing will perform poorly on slow, technical rock trails. Tailoring the gear ratio to the primary terrain ensures the vehicle operates at peak efficiency.

Mud Bogging and Deep Snow

Driving through deep mud or snow requires immense wheel speed to clear the tire treads. If the tires spin too slowly, the tread blocks pack with debris, turning the tire into a slick surface. For mud applications, drivers need a gear ratio that allows the engine to reach high RPMs quickly. A slightly lower numerical ratio (such as 4.10 instead of 4.56 on a 35-inch tire) can sometimes help maintain higher wheel speeds in lower transmission gears, though the engine must produce enough horsepower to prevent bogging down.

Rock Crawling and Technical Trails

Rock crawling prioritizes control over speed. Vehicles navigating large boulders require deep gear reductions to move at a snail's pace without stalling the engine. In these scenarios, owners often select the highest numerical ratio available for their axle housing, such as 5.13 or 5.38. This extreme torque multiplication allows the vehicle to climb vertical obstacles at idle speeds, giving the driver precise control over tire placement.

Overlanding and Expedition Travel

Overland vehicles carry heavy loads of camping gear, water, and fuel over long distances. These vehicles spend significant time on paved highways before reaching dirt trails. The ideal gearing strategy for overlanding involves selecting a ratio that perfectly restores factory RPM. This maintains highway fuel economy while providing enough torque to move the heavy vehicle up steep mountain passes. Upgrading to a durable Crown Wheel and Pinion Set ensures the rear axle can handle the constant stress of a fully loaded expedition rig.

Choosing the Right Components for Your Axles

Selecting high-quality components is just as important as choosing the correct ratio. Off-road driving subjects the drivetrain to shock loads, binding, and extreme torque. Standard replacement gears designed for street use often fail under these harsh conditions.

Material and Manufacturing Quality

Look for gears forged from high-grade steel alloys, such as 8620 or 9310. The 8620 steel provides an excellent balance of strength and wear resistance, making it the industry standard for aftermarket gears. The 9310 steel offers higher impact resistance, making it suitable for extreme racing applications, though it may wear faster during daily street driving. The manufacturing process also dictates gear longevity. Gears that undergo computer numerical control (CNC) machining and specialized heat-treatment processes provide quieter operation and longer lifespans.

Complete Installation Kits

Mechanics should never reuse old bearings, shims, or crush sleeves when installing new gears. The old bearings wear into the specific pattern of the old gears, and reusing them guarantees premature failure of the new setup. Always purchase a master installation kit alongside the Final Drive Gear Set. A comprehensive master kit includes new carrier bearings, pinion bearings, pinion seals, ring gear bolts, crush sleeves, shims, and gear marking compound. Using fresh hardware guarantees proper alignment and maintains tight tolerances.

Application-Specific Upgrades

Different vehicles require specific gear cuts and setups. A heavy-duty pickup truck used for towing demands a robust Rear Axle Crown Pinion designed to handle high payload stress without deflecting. Conversely, a lightweight Jeep requires gears optimized for articulation and shock loads. Always verify axle spline counts, differential housing sizes, and pinion shaft diameters before ordering parts to ensure compatibility.

Understanding Carrier Breaks

When upgrading gear ratios, owners must understand the concept of a carrier break. The differential carrier is the internal component that holds the ring gear and the spider gears. As the numerical gear ratio increases, the pinion gear head becomes smaller in diameter. To keep the ring gear in contact with this smaller pinion, the ring gear must be manufactured thicker, or the carrier mounting flange must be moved closer to the pinion.

Axle manufacturers establish a specific point, known as the carrier break, where the standard carrier can no longer accommodate the required ring gear thickness. For example, a Dana 44 axle typically has a carrier break between 3.73 and 3.92 ratios. If a vehicle has factory 3.73 gears and the owner wants to upgrade to 4.56 gears, they cannot bolt the new ring gear to the old carrier. They must purchase a new carrier designed for the 3.92 and numerically higher ratios. Failing to account for carrier breaks results in ordering incompatible parts and delaying the installation process.

The Installation Process

Installing differential gears is a precision task. It requires specialized tools, including magnetic base dial indicators, inch-pound beam-style torque wrenches, bearing pullers, and hydraulic shop presses. The setup involves adjusting pinion depth, backlash, and bearing preload to exact microscopic tolerances.

Professional vs. DIY Installation

Improper installation leads to gear whine, excessive heat, and rapid destruction of the new components. Unless a mechanic possesses advanced driveline skills and the correct measuring tools, professional installation by a specialized shop is highly recommended. A professional will ensure the Differential Ring and Pinion mesh perfectly, verifying the contact pattern with gear marking compound before finalizing the assembly.

Key Installation Steps

• Disassembly and Cleaning: Remove the axle shafts, drain the fluid, and extract the old carrier and pinion. Clean the housing thoroughly to remove metal shavings.

• Setting Pinion Depth: Press the new bearings onto the pinion shaft and use shims to position the pinion gear at the exact depth specified by the manufacturer.

• Establishing Pinion Preload: Tighten the pinion nut to crush the internal sleeve, creating the precise amount of drag on the pinion bearings.

• Adjusting Backlash: Install the carrier and use side shims to move the ring gear closer to or further from the pinion, establishing the correct amount of free play between the gear teeth.

• Verifying the Contact Pattern: Paint the gear teeth with marking compound and rotate the assembly. The resulting pattern indicates whether the pinion depth and backlash are correct. Adjust shims as necessary until the pattern sits perfectly centered on the gear teeth.

Troubleshooting Common Post-Installation Issues

Even with careful installation, issues can arise during the initial test drive. Identifying the symptoms early prevents catastrophic failure of the new gear set. The table below outlines common noises and their likely causes.

The Critical Break-In Period

New gears require a strict break-in procedure to harden the metal surfaces and prevent scoring. The manufacturing process leaves microscopic imperfections on the gear teeth. The break-in process smoothly wears these imperfections away, mating the ring and pinion perfectly.

The standard break-in process involves driving the vehicle under light loads for 15 to 20 miles, then parking it to let the differential cool completely. This heat-cycling process tempers the steel and must be repeated several times. Drivers must avoid towing, heavy acceleration, highway cruising, or off-roading for the first 500 miles. After reaching the 500-mile mark, the differential fluid must be drained and replaced. This mandatory fluid change removes the phosphorus coating and any metal shavings generated during the initial mating process, ensuring the long-term durability of the axle components.

Conclusion

• Select the correct gear ratio by calculating the exact mathematical difference between the factory tires and the new oversized tires.

• Purchase matching gear sets for both the front and rear axles to prevent drivetrain binding in four-wheel-drive applications.

• Order a comprehensive master installation kit that includes new bearings, shims, and seals to guarantee proper alignment.

• Schedule an installation appointment with a certified driveline specialist who possesses the required precision measuring tools.

• Execute the mandatory 500-mile break-in procedure and change the differential fluid to protect the new components from premature wear.

FAQ

Q: What happens if larger tires are installed without changing gear ratios?

A: The vehicle experiences sluggish acceleration, reduced fuel economy, and poor off-road performance. The engine drops out of its optimal power band, causing the transmission to shift constantly. This frequent shifting generates excessive heat, which degrades transmission fluid and leads to premature failure of internal clutches and bands.

Q: Do front and rear gears need to be changed at the same time?

A: Yes. In four-wheel-drive vehicles, the front and rear gear ratios must match exactly or remain within a 1% variance. Engaging four-wheel drive with mismatched gears causes severe drivetrain binding, which will quickly destroy the transfer case, driveshafts, or axle shafts.

Q: What is a differential carrier break?

A: A carrier break is the specific gear ratio point where a differential carrier must be replaced to accommodate a thicker ring gear. When upgrading to a numerically higher ratio, the pinion gear becomes smaller, requiring a different carrier to position the ring gear closer to the pinion.

Q: Why do new differential gears whine when driving?

A: Gear whine typically results from improper installation. It indicates incorrect backlash, improper pinion depth, or inadequate bearing preload. If new gears whine, a professional mechanic should inspect the vehicle immediately to prevent permanent damage to the gear teeth.

Q: How long does the gear break-in period last?

A: The standard break-in period lasts for 500 miles. During this time, drivers must avoid towing, off-roading, and aggressive acceleration. The process requires initial heat cycles by driving 15 to 20 miles and letting the axle cool completely. The gear oil must be changed at 500 miles.

Q: Can a vehicle be driven in four-wheel drive on pavement with mismatched gears?

A: No. Driving on dry pavement in four-wheel drive with mismatched gears prevents the tires from slipping to relieve driveline tension. The resulting stress will cause immediate and catastrophic mechanical failure to the transfer case chain, internal gears, or axle shafts.
