Crown Wheel Pinion: Complete Beginner Guide for 4x4 Pickups & SUVs

Upgrading a 4x4 pickup or SUV with larger tires and lift kits instantly improves off-road clearance, but it silently introduces a critical mechanical vulnerability: drivetrain stress and altered gearing. While the aesthetic and ground clearance benefits are obvious, the hidden toll on your vehicle's mechanical components can be severe if left unaddressed. Oversized tires reduce effective gear ratios, leading to sluggish acceleration, constant transmission hunting, poor fuel economy, and a high risk of differential failure under heavy load, such as deep mud or rock crawling. The engine has to work significantly harder to turn the increased rotational mass, creating a mismatch between the engine's power band and the wheels. Restoring factory performance and ensuring off-road reliability requires re-gearing the differential. This guide breaks down how to evaluate, select, and source the correct Crown Wheel Pinion to match specific 4x4 builds, terrains, and performance requirements, ensuring your rig is built to survive the trails.

• Ratio Matching is Critical: Upgrading tire size requires a mathematically matched crown wheel pinion ratio to restore the vehicle’s original power band and prevent transmission burnout.

• Material Dictates Survival: A high quality Crown Wheel Pinion forged from 8620 steel with proper heat treatment is mandatory for surviving the 2-3x torque multiplication generated in 4-Low off-road scenarios.

• OEM vs. Aftermarket: While an OEM Crown Wheel Pinion suits factory-spec daily drivers, modified 4x4s require aftermarket high-performance gear sets designed for heavy-duty articulation and extreme loads.

• Supplier Vetting: Choosing a reputable Crown Wheel Pinion supplier reduces Total Cost of Ownership (TCO) by minimizing the risk of premature gear whining, catastrophic trail failures, and secondary differential damage.

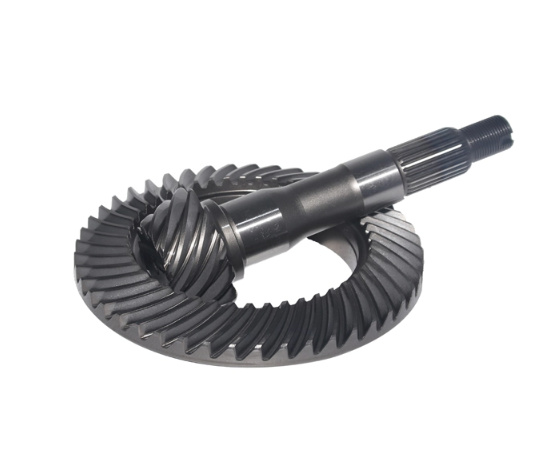

What is a Crown Wheel Pinion in a 4x4 Drivetrain?

The Mechanical Role in the Differential

The pinion gear connects directly to the driveshaft. It drives the crown wheel, which is also known as the ring gear. This critical interaction translates longitudinal rotational force from the engine and transmission into a 90-degree transverse force. This transverse force is necessary to turn the axle shafts and, ultimately, the wheels. Without this mechanism, power cannot reach the ground effectively.

The tooth count ratio between the crown wheel and the pinion determines the final drive ratio. For example, a 4.10 ratio means the pinion turns 4.1 times for every single rotation of the crown wheel. This gear reduction directly impacts torque multiplication and top speed. It dictates how the vehicle accelerates from a stop and how it cruises at highway speeds. Changing this ratio alters the entire driving dynamic of the vehicle.

To understand the mechanical advantage, consider the physics of gear reduction. A numerically higher gear ratio provides more torque at the wheels but lowers the top speed. Conversely, a numerically lower gear ratio provides less torque but allows for higher top speeds at lower engine RPMs. Balancing these factors is essential for optimal vehicle performance.

Interaction with 4WD Systems and Differentials

The crown wheel pinion interacts differently depending on the differential type installed in the axle. In Open Differentials, power follows the path of least resistance. This often causes wheel spin on loose surfaces. Limited-Slip Rear Axles ensure traction to at least three wheels by transferring power away from the slipping wheel. Locking Front/Rear Differentials force both wheels on an axle to turn at the exact same speed, maximizing grip in extreme conditions.

Understanding the difference between Full-Time and Part-Time 4WD systems is necessary for preventing damage. Engaging Part-Time 4WD on dry, paved roads causes severe driveline binding. Because the front and rear axles are locked together but travel different distances in a turn, catastrophic mechanical stress transfers directly to the gears. This binding can literally shatter gear teeth under the right conditions.

When a locking differential is engaged in high-traction scenarios, the stress dynamics change dramatically. The gear strength becomes paramount because the components must absorb the full rotational force without the relief of wheel slip. High-quality materials are essential for survival in these situations. The lack of differential action means all torque goes directly through the gear teeth.

Why Modified 4x4s Require Crown Wheel Pinion Upgrades

The "Larger Tires" Dilemma (Performance Loss)

Adding larger, heavier tires increases rotational mass and changes the final drive ratio. This effectively results in taller gearing, meaning the engine must work harder to turn the wheels. The physics dictate that a larger diameter tire covers more ground per revolution. This alters the mechanical advantage the engine originally had over the vehicle's weight.

The symptoms of this mismatch are immediately noticeable to the driver. You will experience a distinct loss of low-end torque. The vehicle will exhibit an inability to hold overdrive on the highway, constantly downshifting on slight inclines. This leads to increased transmission temperatures due to constant shifting. It also causes accelerated wear on all drivetrain components, from U-joints to transmission clutches.

To illustrate the impact of tire size on effective gearing, consider the following data table:

Surviving 4-Low and Extreme Terrains

Shifting into 4-Low is typically done at speeds of 1-2 mph. This action multiplies torque by 2 to 3 times depending on the transfer case ratio. This mechanical advantage is necessary for steep inclines, deep sand, or thick mud. However, it places immense strain on the drivetrain components downstream of the transfer case.

Lowering tire pressure to 15-20 PSI for sand or mud drastically increases the tire's contact patch and grip. This immense traction prevents wheel slip. As a result, it forces the gears to absorb the full, multiplied torque load of the engine. The tires refuse to slip, so the weakest link in the drivetrain must absorb the energy.

Factory gears are often not metallurgically designed to handle this multiplied torque combined with the grip of oversized mud-terrain tires. The result is often sheared pinion teeth, leaving the vehicle stranded on the trail. Upgrading to stronger materials is the only way to prevent this specific type of catastrophic failure during off-road excursions.

How to Calculate and Choose the Right Gear Ratio

The Gear Ratio Formula for 4x4s

To restore factory performance, you must calculate the new target gear ratio. The standard calculation is straightforward: (New Tire Diameter / Old Tire Diameter) x Original Gear Ratio = New Target Gear Ratio. This formula helps you find the mathematical equivalent of your factory setup with the new tires installed.

For example, moving from a 31-inch factory tire with a 3.73 ratio to a 35-inch tire requires upgrading. The math is (35 / 31) x 3.73 = 4.21. Therefore, upgrading to a 4.10 or 4.56 ratio is necessary to maintain factory RPMs and drivability. Choosing 4.56 will provide slightly more low-end grunt to compensate for the heavier tire weight.

It is important to factor in the added weight of aftermarket accessories. Steel bumpers, winches, and skid plates add hundreds of pounds to the vehicle. This extra weight requires more torque to move. Therefore, rounding up to the next available gear ratio is often recommended for heavily modified vehicles.

Terrain-Specific Ratio Selection (Evaluation Dimensions)

For overlanding and highway cruising, opt for a ratio slightly closer to factory. This balances fuel economy with the added weight of rooftop tents and heavy recovery gear. You want enough power to pass on the highway without running the engine at excessively high RPMs. A balanced ratio keeps transmission temperatures in check during long road trips.

For rock crawling and deep mud, opt for numerically higher ratios, like 4.88 or 5.13. This maximizes crawl ratios. It allows the vehicle to navigate extreme articulation obstacles at 1-2 mph without stalling. It also prevents the driver from relying on excessive momentum, which often leads to broken parts and body damage.

Consider the following terrain guidelines when selecting your ratio:

• Daily Driving / Light Trails: Match the factory effective ratio as closely as possible.

• Overlanding / Heavy Loads: Go one step numerically higher than the factory effective ratio (e.g., 4.56 instead of 4.10).

• Dedicated Rock Crawling: Go two steps numerically higher to maximize crawl ratio and low-speed control (e.g., 4.88 or 5.13).

OEM Crown Wheel Pinion vs. High Performance Alternatives

When to Specify an OEM Crown Wheel Pinion

An OEM gear set is ideal for stock tire sizes, daily driving, and light gravel or snow driving in 4-High. They are designed specifically for the vehicle's original specifications and intended use cases. Factory engineers prioritize quiet operation and longevity under normal driving conditions over extreme shock load resistance.

The pros include guaranteed factory fitment and exceptionally quiet operation. The manufacturing tolerances are tight, ensuring a smooth setup. However, the major con is that they lack the hardened durability required for heavy off-road abuse. They are not designed to handle the stress of 35-inch tires and locking differentials.

If you are restoring a classic 4x4 to factory specifications, OEM parts are the best choice. They maintain the original driving characteristics and ensure compatibility with factory carriers and axles. Just remember their limitations when taking the vehicle off the pavement.

Evaluating a High Performance Crown Wheel Pinion

When selecting a high performance Crown Wheel Pinion, material specifications are critical. Look for 8620 or 4320 gear steel. These alloys offer superior strength and shock resistance compared to standard materials. They can flex slightly under extreme loads without snapping, which is vital for off-road survival.

Manufacturing processes also matter significantly. Computer-controlled heat treatment ensures consistent hardness across the gear teeth. Face-hobbing versus face-milling dictates the tooth profile and strength. Precision lapping ensures optimal gear mesh and reduces Noise, Vibration, and Harshness (NVH). These processes separate premium gears from cheap alternatives.

High-performance gears often feature thicker profiles to accommodate different carrier breaks. This allows you to install lower ratios without replacing the entire differential carrier. Always verify carrier compatibility before purchasing a high-performance gear set.

Vetting a Crown Wheel Pinion Manufacturer and Supplier

Quality Control and Testing Standards

Demand high standards from a Crown Wheel Pinion manufacturer. Look for ISO certifications, metallurgical batch testing, and contact pattern verification. These certifications ensure consistent quality and reliability across production runs. A reputable manufacturer will gladly provide documentation of their testing procedures.

Avoid white-label, unbranded gears found on discount websites. Improper hardening can lead to brittle teeth or rapid wear. This results in catastrophic failure under load, often destroying the entire axle assembly. The initial savings are never worth the cost of a blown differential on the trail.

Quality control extends to the packaging and shipping processes. Gears must be coated in rust preventative and packaged securely to prevent damage during transit. A chipped tooth from poor packaging renders the entire gear set useless.

Supply Chain and Warranty Considerations

Choose a supplier with extensive inventory availability for specific 4x4 axles, such as Dana 44, Ford 9-inch, or Toyota 8-inch. They should offer comprehensive master rebuild kits. These kits must include high-quality bearings (like Timken or Koyo), crush sleeves, pinion nuts, marking compound, and a wide assortment of shims.

Review the warranty terms carefully before making a purchase. Transparent warranty terms regarding off-road use are essential. Many standard warranties are immediately voided by off-road driving or the installation of oversized tires. Look for suppliers who stand behind their products in extreme conditions.

Customer support is another vital supply chain consideration. If your installer runs into setup issues, you need a supplier with technical experts on staff. They can help troubleshoot pattern issues and ensure the installation is successful.

Implementation Realities: Installation, Break-In, and Maintenance TCO

The Hidden Costs of Improper Installation

Installing a gear set is not DIY-friendly for beginners. It requires specialized tools including dial indicators, inch-pound torque wrenches, bearing pullers, and a shop press. Precise shim adjustments are required to set backlash and pinion depth correctly. Even a variance of 0.002 inches can ruin the gear mesh.

Improper setup guarantees premature failure, effectively doubling the cost of the upgrade. The Total Cost of Ownership (TCO) skyrockets if the installation is botched. You will have to buy a new gear set, a new master install kit, and pay for labor a second time. Always hire a specialized driveline shop for this work.

To understand the complexity, here are the basic steps involved in a professional installation:

• Disassemble the axle and thoroughly clean the housing.

• Press new bearings onto the pinion and differential carrier.

• Install the pinion with setup shims and measure the depth.

• Install the carrier and measure backlash using a dial indicator.

• Run a gear marking compound to verify the contact pattern on the drive and coast sides.

• Adjust shims repeatedly until the pattern is perfectly centered.

• Install the final crush sleeve and torque the pinion nut to specification.

The Mandatory Gear Break-In Procedure

Follow the strict industry-standard protocol for breaking in new gears. Drive 15-20 miles at moderate speeds, stop, and let the differential cool completely. This heat cycling tempers the steel and allows the gears to lap together. Repeat this process for the first 500 miles of driving.

Absolutely no heavy towing or 4-Low off-roading is permitted until the 500-mile fluid change is complete. The initial friction generates high heat and microscopic metal shavings. The 500-mile fluid change flushes out these wear metals generated during the break-in period, protecting the bearings from contamination.

Failing to follow the break-in procedure will cause the gear oil to break down from excessive heat. This leads to scoring on the gear teeth, persistent whining noises, and eventual failure. Patience during the first 500 miles is critical for long-term reliability.

Post-Trail Drivetrain Maintenance

After traversing deep water or mud, check the differential fluid for water ingress. Axle breathers can suck in water if submerged while hot. Contaminated oil looks milky and destroys the lubrication properties required to keep high-performance gears from overheating and failing.

Change the differential fluid every 15,000 to 30,000 miles depending on your usage. Use a high-quality synthetic gear oil with the correct viscosity rating. If you have a clutch-based limited-slip differential, ensure you add the required friction modifier additive to prevent chatter.

Regularly inspect the pinion seal for leaks. A leaking seal will drain the fluid, leading to rapid bearing and gear destruction. Catching a small leak early saves thousands of dollars in repair costs.

Conclusion

• Calculate your required gear ratio based on your new tire size and desired engine RPMs to restore factory drivability.

• Consult with a specialized 4x4 drivetrain shop to confirm axle compatibility and discuss your specific off-road usage requirements.

• Request detailed quotes from a certified supplier that include both the gear set and a comprehensive master installation kit.

• Schedule the installation with a professional mechanic who possesses the specialized tools and experience required for precise gear setup.

• Strictly adhere to the 500-mile break-in procedure and fluid change schedule to ensure the longevity of your new drivetrain components.

FAQ

Q: What are the symptoms of a failing crown wheel pinion?

A: Symptoms include whining noises on acceleration or deceleration, clunking when shifting into gear, and metal shavings in the differential fluid. This is different from the normal pushing or skipping feeling of the front tires when making tight turns in 4WD.

Q: How much does it cost to replace a crown wheel pinion in a 4x4?

A: Costs typically range from $200 to $400 for the gear set, plus $150 to $250 for the master install kit, and $500 to $800 or more for specialized labor per axle.

Q: Does changing the crown wheel pinion affect my speedometer?

A: Yes, changing the gear ratio will throw off the speedometer and shift points, requiring an electronic programmer or speedo gear swap to correct.

Q: Can I replace just the pinion gear or just the crown wheel?

A: No. They are machined and lapped as a matched set at the factory and must be replaced together to ensure proper mesh and prevent immediate failure.

Q: What is the difference between a thick and thin ring gear?

A: Thick gears allow the installation of lower ratios on higher-ratio differential carriers without the need to buy a new locker or carrier, accommodating carrier breaks.

Q: Do I need to re-gear both the front and rear axles?

A: Yes. For any 4WD vehicle, both front and rear differentials must have matching gear ratios. Otherwise, engaging 4WD will bind and destroy the transfer case.
