Does Every Car Have a Rear Differential? Vehicle Type Classification

No. Not every car has a separate rear differential. Most rear-wheel-drive, all-wheel-drive, and four-wheel-drive vehicles do. Most front-wheel-drive cars use a front transaxle that contains the differential function inside the transmission. That distinction matters because many ordering mistakes start when a buyer assumes every vehicle has the same rear driveline layout.

The practical issue is whether the vehicle has a separate rear unit, what type it uses, and which replacement path fits the risk. Wrong classification can lead to an incorrect part, a gear-ratio mismatch, wasted labor, or damage to AWD and 4WD systems. It can also hide the real fault, such as a wheel bearing, CV axle, U-joint, or transfer case problem. It prevents an expensive heavy-duty purchase when factory hardware fits the duty cycle. The safer process is to classify the vehicle, confirm ratio and differential type, then compare options by fitment certainty, service life, downtime, and cost.

• Not every car has a separate Rear Differential, but most RWD, AWD, and 4WD vehicles do; most FWD cars use a front transaxle and do not have a separate rear unit.

• A FWD car still has a differential function, but it is usually integrated into the transmission/transaxle rather than housed in a rear axle “pumpkin.”

• The correct replacement decision depends on drivetrain layout, final drive ratio, differential type, axle code, electronics, and whether the rear assembly is factory spec or modified.

• An OEM Replacement Rear Differential lowers compatibility risk, while a Remanufactured Rear Differential can reduce upfront cost if the rebuilder’s standards, testing, and warranty are credible.

• For towing, fleet, commercial, off-road, or repeated high-load use, a Complete Rear Differential Assembly or Heavy Duty Rear Differential may reduce downtime, but only if the axle, bearings, gearing, sensors, and vehicle electronics all match.

• Routine fluid service matters because differential oil lubricates, cools, and carries away wear particles; severe-duty use may require shorter service intervals than normal commuting.

Does Every Car Have a Rear Differential? The Short Answer

The first check is whether the vehicle uses a separate Rear Differential at the rear axle or rear subframe. Most vehicles need differential action at the driven wheels. Only some place that function in a standalone rear housing.

Vehicles that usually have a separate rear unit

• Rear-wheel-drive sedans, coupes, pickups, vans, and many body-on-frame SUVs

• Most AWD and 4WD vehicles that send torque to the rear axle

• Commercial pickups and vans built for towing, payload, or fleet service

• Some EVs and hybrids with rear-drive or dual-motor rear layouts

Vehicles that usually do not have a separate rear unit

• Most front-wheel-drive cars

• Many front-wheel-drive compact crossovers

• Vehicles where the differential function is inside the front transaxle

These vehicles still have differential function. It is normally inside the front transaxle, not a rear axle “pumpkin.” Rear noise on these models often comes from hubs, bearings, tires, brakes, or suspension parts.

Differential function versus rear housing

Differential function allows the left and right drive wheels to rotate at different speeds during turns. A separate rear differential is a standalone axle unit, carrier, or rear drive module mounted between the rear wheels. A front transaxle combines the transmission and differential in one front-mounted case.

Edge cases that create confusion

On-demand AWD, independent rear suspension, hybrids, and EVs can hide the rear unit inside compact modules. Some rear e-axles combine motor, reduction gears, sensors, and differential function. Modified vehicles create more uncertainty because gear swaps, lockers, spools, welded differentials, and axle swaps may erase the factory specification.

Success criteria before replacement

• Confirm whether a separate rear unit exists.

• Identify open, limited-slip, locking, helical, viscous, active, or electronic control.

• Confirm the final drive ratio and axle code.

• Check whether the current assembly remains factory spec or has been modified.

• Compare replacement options by risk, warranty, downtime, and service life.

Rear Differential by Vehicle Type: Practical Classification Framework

Vehicle type narrows the search, but it does not complete it. Engine, transmission, tow package, axle rating, trim, and regional package can change the rear assembly.

FWD cars and compact crossovers

Most FWD vehicles do not use a separate rear differential. Their differential gears sit inside the front transaxle case. In this layout, rear-end noises are commonly traced to wheel bearings, hubs, brakes, tires, or suspension components. The repair focus is usually transaxle, CV axle, hub, or bearing diagnosis.

RWD passenger cars

RWD vehicles usually have a rear unit mounted between the rear wheels. Older designs may use a solid axle housing. Modern sedans and coupes often use an independent rear carrier with CV axles. Axle code, ratio, carrier type, limited-slip option, ABS provisions, and driveshaft connection must match.

AWD crossovers, SUVs, and passenger cars

AWD systems usually include front and rear differentials plus a center differential, transfer case, power transfer unit, or clutch coupling. Full-time systems may send torque to both axles continuously. On-demand systems may engage the rear unit only under load or slip. Ratio mismatch can damage couplings, transfer cases, and center units.

4WD trucks and body-on-frame SUVs

Most 4WD trucks use front and rear differentials with a transfer case. Many part-time systems do not have a center differential. They can bind on dry pavement in 4HI or 4LO unless the manufacturer allows that use. Replacement must match axle ratio, axle rating, locker option, housing width, yoke or flange style, and sensor layout.

Pickups, vans, and commercial vehicles

Commercial vehicles depend on the rear axle for payload, towing, and uptime. Frequent heat cycles, stop-start duty, high loads, and poor fluid service can shorten bearing and seal life. Fleet buyers also need practical warranty support, core logistics, and strong packaging to avoid repeat labor.

EVs and hybrids

Rear drive units in EVs and hybrids may combine motor, reduction gears, sensors, sealed electronics, and differential function. Some hybrids use an electric rear axle with no mechanical driveshaft from the engine. OEM service data, part numbers, software requirements, and high-voltage procedures should guide selection.

What the Rear Differential Does and Why Part Choice Changes

The rear differential transfers torque to the rear wheels and allows left and right wheel-speed difference. In a turn, the outside wheel travels farther than the inside wheel. It must rotate faster to avoid tire scrub, hopping, binding, and driveline stress.

How power flows through a conventional unit

• The driveshaft turns the pinion gear.

• The pinion drives the ring gear and turns power roughly 90 degrees.

• The ring gear rotates the carrier or differential case.

• The carrier moves the spider gears or planetary gears.

• The spider gears drive the side gears.

• The side gears turn axle shafts or CV axles.

• The axle shafts deliver torque to the wheels.

Gear setup precision matters. Incorrect backlash, pinion depth, bearing preload, or contact pattern can cause whine, heat, metal contamination, and early failure.

Final drive ratio matters as much as housing shape

Final drive ratio describes how many pinion or driveshaft rotations are needed for one axle-shaft rotation. A 3.73:1 ratio means the pinion turns about 3.73 times for one axle rotation. Ratio affects acceleration, towing feel, cruising RPM, fuel economy, speedometer behavior on some vehicles, and AWD/4WD compatibility. “Close enough” is not acceptable on matched driveline systems.

Internal parts that affect repair scope

• Ring gear, pinion gear, carrier, side gears, and spider gears

• Clutch packs, helical gears, or locking mechanisms where equipped

• Carrier bearings, pinion bearings, races, crush sleeve, and shims

• Pinion seal, axle seals, cover gasket, breather, and fluid

• ABS tone rings, speed sensors, axle shafts, and CV axles where integrated

Isolated seal leaks may be repairable. Gear tooth damage, widespread contamination, housing distortion, or repeated noise after prior repair often points toward assembly replacement.

Differential types and outcome differences

• Open differential: simple and low cost, but weak when one wheel loses traction.

• Clutch-type limited-slip: improves traction, but may require friction modifier and clutch service.

• Torsen or helical limited-slip: gear-based and responsive, but design behavior varies when one wheel unloads.

• Viscous limited-slip: uses fluid shear, which can weaken after overheating or aging.

• Locking differential: useful for work and off-road traction, but harsh if misused on pavement.

• Active or torque-vectoring differential: improves control, but adds sensors, clutches, modules, and calibration risk.

• Welded differential or spool: usually unsuitable for daily street use due to hop, scrub, and stress.

Factory Spec Rear Differential Versus Modified Hardware

A Factory Spec Rear Differential matches the original build configuration. That includes gear ratio, housing or carrier design, differential type, mounts, axle interface, sensor provisions, ABS tone rings, yoke or flange, service requirements, and expected noise behavior.

Common modifications that affect fitment

• Gear ratio swaps for towing, off-road tires, performance, or fuel economy

• Lift kits and oversize tires that increase gear and bearing load

• Aftermarket lockers, spools, welded differentials, or performance LSDs

• Axle swaps from another trim, model year, or salvage donor

• Driveshaft flange conversions, wiring changes, or locker bypasses

• Fleet repairs that used non-original parts or mixed axle assemblies

Why same year, make, and model are not enough

Two vehicles with the same model year can use different rear assemblies because of engine choice, transmission, tow package, trim, axle rating, or market package. AWD and 4WD systems also treat the front and rear ratios as a matched set. A unit can bolt in and still be wrong if ratio, electronics, or differential type differs.

How to Confirm the Correct Rear Differential Before Purchase

Documentation should come before price comparison. A correct unit can be rejected before installation if identification work is done early.

Verification sources

• VIN and OEM build sheet

• Axle tag, differential cover tag, or housing stamp

• Door sticker, glovebox option code, or RPO code where applicable

• Owner’s manual, OEM service information, and dealer parts catalog

• Prior service records for towing, off-road, fleet, or performance use

Fitment details to match

• Final drive ratio, axle code, axle rating, and ring gear size

• Open, limited-slip, locking, active, helical, viscous, or electronic type

• Spline count, axle shaft length, CV axle interface, and housing style

• Solid axle versus independent rear suspension carrier

• Mounting points, brake provisions, wheel-end compatibility, and width

• Driveshaft yoke or flange pattern

• ABS tone rings, speed sensors, locker wiring, and control connectors

• Fluid viscosity, electronic differential fluid, and limited-slip additive needs

When a complete assembly is lower risk

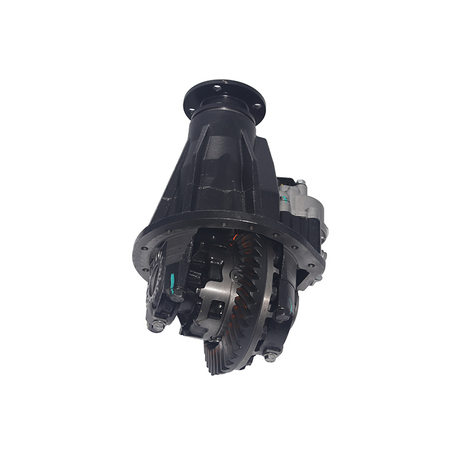

A Complete Rear Differential Assembly can be safer when the housing is damaged, metal contamination has circulated, gear teeth are chipped, or the repair history is unknown. It may include housing, carrier, gears, bearings, seals, axle shafts, sensors, and hardware, depending on supplier definition. The buyer should confirm what “complete” includes before ordering.

Rear Differential Replacement Options: OEM, Remanufactured, Rebuild, or Used

OEM replacement

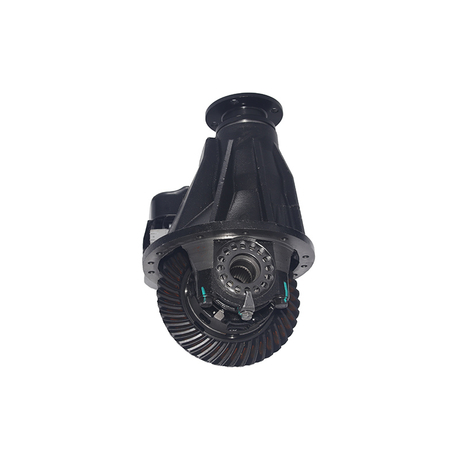

An OEM Replacement Rear Differential usually offers the lowest compatibility risk. It fits newer vehicles, warranty-sensitive repairs, active differentials, EVs, hybrids, and electronically controlled AWD systems. The trade-off is higher upfront cost and possible dealer-only availability.

Remanufactured replacement

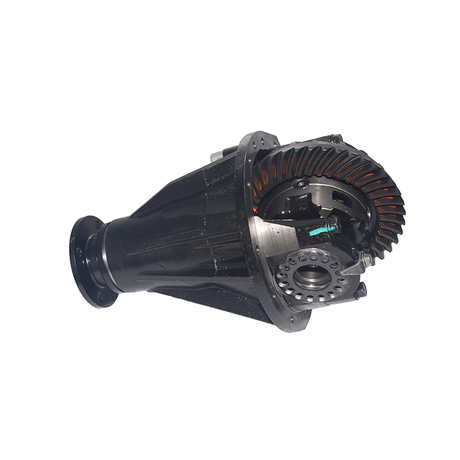

A Remanufactured Rear Differential can reduce cost if the supplier documents standards and testing. Strong signals include new bearings, races, seals, clutches where applicable, documented backlash, preload checks, gear pattern inspection, clean packaging, and practical warranty support. Quality varies widely, so written fitment confirmation matters.

Rebuilding the existing unit

Rebuilding makes sense when the housing is sound, the gear ratio is known, and parts are available. It can preserve rare, classic, modified, or performance configurations. It requires a technician skilled in gear setup, torque specs, preload, backlash, and pattern checking.

Used salvage unit

Used assemblies offer the lowest entry cost and the highest uncertainty. Hidden bearing wear, rust, impact damage, wrong ratio, contaminated fluid, unknown mileage, and electronic mismatch are common risks. This path is usually rational only when vehicle value is low and labor is inexpensive.

Replacement decision matrix

OEM Versus Remanufactured Decision Criteria

• Compatibility risk: OEM is usually safer for electronics, mounts, sensors, ratio accuracy, and factory behavior.

• Expected service life: Cost comparisons should include labor, oil, seals, freight, core charges, and repeat-labor exposure.

• Warranty practicality: Parts-and-labor coverage, claim speed, shipping terms, and teardown rules matter more than broad wording.

• Supplier quality: A credible rebuilder publishes standards, replaces wear parts, checks preload, documents gear pattern, and protects sensors during shipment.

• Vehicle value: Newer or long-term vehicles justify lower-risk choices. Low-value vehicles may not support the highest-cost option.

When a Heavy Duty Rear Differential Makes Sense

A Heavy Duty Rear Differential is justified when load, heat, or traction shock exceeds the standard unit’s real service envelope. It should solve a documented use-case problem, not a misdiagnosed noise.

Justified cases

• Frequent towing or payload near rated limits

• Fleet, delivery, utility, or construction service

• Off-road use with traction shocks and load spikes

• Oversize tires that increase leverage on gears and bearings

• Performance use where the stock unit is a known weak point

• Repeated standard-unit failures under verified operating conditions

Usually unnecessary cases

• Normal commuting without towing

• Light-duty crossovers with stock tires

• Vehicles where poor fluid service caused the failure

• Cases where wheel bearings, tires, alignment, or bushings are the real issue

• AWD systems where rear-only upgrades create ratio or calibration problems

Expected trade-offs

Heavier-duty parts may add cost, noise, harsher engagement, rolling resistance, or maintenance needs. Related components may also need upgrades, including axle shafts, bearings, U-joints, driveshaft flanges, seals, cooling covers, and front gearing on AWD or 4WD vehicles.

Failure Symptoms, Maintenance, and Misdiagnosis Risks

Symptoms that justify inspection

• Whine under acceleration or deceleration

• Howling that changes with load

• Grinding, clicking, clunking, or chatter during turns

• Road-speed vibration rather than engine-speed vibration

• Leaks at the pinion seal, axle seals, cover, or rear drive unit

• Burnt fluid, metallic fluid, or metal flakes on the drain plug magnet

• Warning lights or fault codes on active and torque-vectoring systems

Problems often mistaken for rear differential failure

• Wheel bearings, rear hubs, tire cupping, or uneven tire wear

• CV axles, U-joints, or driveshaft imbalance

• Brake drag, suspension bushings, or loose mounts

• Transfer case, center coupling, PTU, transmission, or transaxle noise

• Rear suspension parts on vehicles without a separate rear unit

Fluid service and severe duty

Differential oil lubricates ring gear, pinion gear, bearings, side gears, spider gears, and limited-slip parts. It also helps carry wear particles and control heat. Many vehicles fall near a 30,000–60,000 mile inspection or service range, but the owner’s manual and OEM severe-duty schedule override generic intervals.

• Shorter intervals may apply for towing, payload, fleet use, and stop-start duty.

• Off-road driving, water crossings, mountain driving, and extreme temperatures increase risk.

• Wrong viscosity, missing friction modifier, or non-approved electronic differential fluid can cause noise or damage.

• After gear replacement, break-in procedure and early fluid change requirements should be followed.

Repair versus replacement threshold

A minor leak, low fluid caught early, or chatter from incorrect limited-slip oil may be serviceable. Bearing noise may be repairable if gears and housing remain usable. Metal contamination, tooth damage, distorted housing, failed actuators with internal wear, or repeated failure often justifies replacing the larger assembly.

Total Cost of Ownership and Installation Risk

Upfront part price is only one cost line. Total cost also includes diagnostic time, labor, seals, bearings, oil, friction modifier, shop supplies, freight, core charges, programming, calibration, rental costs, and downtime. For work vehicles, lost use can exceed the price difference between options.

Pre-installation checklist

• Verify ratio, axle code, carrier type, sensors, yoke or flange, and mounts before installation.

• Compare the replacement unit with the original side by side.

• Inspect driveshafts, U-joints, CV axles, wheel bearings, brakes, vents, and bushings.

• Replace required seals, gaskets, fluid, and single-use hardware.

• Confirm limited-slip additive, electronic fluid, break-in steps, and calibration needs.

• Record part numbers, tags, fluid used, installation mileage, and supplier documents.

System-specific installation risks

Conventional solid axles require correct bearing preload, backlash, torque specs, and gear pattern. AWD and 4WD systems require exact front-to-rear ratio matching. Electronic lockers, active differentials, and torque-vectoring units may need scan-tool checks, relearn procedures, or software calibration. EV and hybrid rear drive units add high-voltage safety and OEM service requirements.

How to Shortlist the Right Option

Conclusion

The core verdict is direct: not every car has a separate Rear Differential. FWD vehicles usually package the differential function inside the front transaxle. RWD vehicles usually use a rear unit. AWD, 4WD, hybrid, and EV platforms require configuration checks before parts are ordered.

• Confirm drivetrain layout, VIN data, axle code, and final drive ratio.

• Identify open, limited-slip, locking, active, torque-vectoring, or modified hardware.

• Verify whether the current assembly remains factory spec or has been altered.

• Choose OEM, remanufactured, rebuild, used, complete assembly, or heavy-duty based on risk and use.

• Request written fitment confirmation, fluid requirements, warranty terms, and core logistics before purchase.

FAQ

Q: Do all cars have a Rear Differential?

A: No. Most RWD, AWD, and 4WD vehicles do, but most FWD vehicles use a front transaxle and do not have a separate rear unit.

Q: Does a front-wheel-drive car have a Rear Differential?

A: Usually no. A FWD vehicle normally has its differential function integrated into the front transaxle rather than housed in a standalone rear axle assembly.

Q: How can a buyer tell if a vehicle has a Rear Differential?

A: The buyer should check drivetrain layout, VIN data, axle code, build sheet, axle tag, owner’s manual, and the physical presence of a rear axle housing or drive module.

Q: Do AWD vehicles need an exact gear ratio match?

A: Yes. AWD and 4WD systems require matched ratios. A mismatch can cause binding, warning lights, coupling damage, transfer case damage, or premature drivetrain wear.

Q: When is an OEM Replacement Rear Differential better than a Remanufactured Rear Differential?

A: OEM is usually safer for newer, high-value, AWD, active, hybrid, EV, or warranty-sensitive vehicles. Reman can work when standards, testing, and warranty support are documented.

Q: When is a Complete Rear Differential Assembly the safer choice?

A: It is safer when damage is widespread, the housing is compromised, metal contamination has circulated, electronic failure combines with mechanical wear, or downtime costs outweigh parts savings.

Q: How often should Rear Differential fluid be changed?

A: The owner’s manual controls the interval. Many vehicles fall around 30,000–60,000 miles, while towing, fleet use, off-road driving, and extreme temperatures often require shorter service intervals.
