Differential Assembly Full Overview: All Internal Parts Explained

A failing drivetrain escalates from a minor annoyance to a catastrophic mechanical failure. This progression often strands vehicles and halts commercial operations. Diagnosing whether the problem lies in a single bearing or requires a complete unit replacement manages repair costs and vehicle downtime. This guide deconstructs the internal anatomy of the differential. It maps the power flow and provides a diagnostic framework based on operational sounds and visual cues. It also outlines the cost-benefit analysis of rebuilding versus replacing the unit. Understanding these mechanical principles prevents unnecessary parts replacement. Fleet managers and independent mechanics rely on accurate acoustic and visual diagnostics to pinpoint internal wear. By following this framework, you can extend drivetrain lifespan and optimize maintenance budgets effectively.

• The differential assembly performs four critical tasks: changing power direction by 90 degrees, splitting power to the wheels, reducing gearing for torque multiplication, and allowing independent wheel rotation during cornering.

• Accurate diagnostics can save thousands; whining indicates gear mesh issues, growling points to bearing failure, and shuddering often means depleted friction modifiers in Limited-Slip Differentials (LSD).

• Hypoid gear designs in modern rear differential assemblies require specific extreme-pressure lubricants (API GL-5) to prevent rapid premature wear.

• Decision-makers must weigh the Total Cost of Ownership (TCO): a $300 bearing replacement versus a $2,500+ complete assembly replacement depending on the extent of internal metal contamination.

The Core Functions of a Complete Differential Assembly

To understand why a Complete Differential Assembly is necessary, you must examine the physics of cornering. During a turn, the outside wheel travels a longer arc than the inside wheel. This geometric reality dictates that the outside wheel must rotate faster to cover the greater distance in the same amount of time. Without a differential mechanism, both wheels would remain locked together on a solid axle. This forces the tires to scrub against the pavement, drag heavily, and cause severe axle bind. Over time, this binding force destroys the drivetrain components.

To solve this mechanical problem, the differential assembly executes four specific mandates. Each function plays a distinct role in vehicle mobility and power management.

• Directional Shift: The unit converts the longitudinal rotational force from the driveshaft into a transverse force. This creates a 90-degree turn for the drive axles, sending power outward to the wheels.

• Power Distribution: It splits the engine's torque between the left and right wheels. This ensures both sides of the vehicle receive adequate rotational force to maintain forward momentum.

• Gear Reduction (Final Drive Ratio): The assembly steps down the high-speed rotation from the transmission. It delivers high-torque, lower-speed rotation to the wheels. For example, a 4.10:1 gear ratio means the driveshaft turns 4.1 times for every single rotation of the tire. This multiplies torque significantly for acceleration and towing.

• Speed Differentiation: It allows wheels on the same axle to rotate at independent speeds seamlessly. This prevents tire scrubbing and maintains vehicle stability during sharp turns.

Power Flow: How the Differential Unit Assembly Works

Step-by-Step Torque Transfer

The Differential Unit Assembly transfers torque through a precise sequence of mechanical engagements. The process relies on exact gear meshing and bearing support to function without excessive heat generation.

• Input Phase: The driveshaft connects to the pinion yoke, which rotates the drive pinion gear inside the housing.

• Torque Multiplication: The pinion gear drives the larger ring gear. This size difference creates the final drive ratio and multiplies the incoming torque.

• Housing Rotation: Because the ring gear bolts directly to the differential carrier, the entire carrier housing rotates along with it.

• Internal Distribution: The carrier houses the spider gears, also known as pinion mates. These gears rotate with the carrier and mesh continuously with the side gears.

• Output Phase: The side gears feature internal splines that connect to the axle shafts. As the side gears turn, they rotate the axle shafts, which ultimately turn the vehicle's wheels.

Drivetrain Layouts: Front vs. Rear Configurations

The layout of the differential depends entirely on the vehicle's specific drivetrain configuration. A Rear Differential Assembly operates as a standalone unit mounted on the rear axle. It receives power via a long driveshaft extending from the transmission or transfer case. This represents the standard setup for traditional rear-wheel-drive (RWD) trucks and passenger cars.

Conversely, a Front Differential Assembly in front-wheel-drive (FWD) vehicles typically integrates directly into the transmission housing. This creates a single, compact unit known as a transaxle. All-wheel-drive (AWD) and four-wheel-drive (4WD) vehicles utilize both front and rear differentials. A transfer case connects these units to distribute power to all four wheels simultaneously.

Hypoid Gear Design & Implementation Risks

Most modern rear differential assemblies utilize hypoid gears. In this engineering design, the pinion gear sits below the centerline of the ring gear. This configuration lowers the vehicle's overall center of gravity. It also allows the gears to run much quieter than standard spiral bevel gears. Furthermore, it increases the contact area between the gear teeth, which improves the unit's maximum torque capacity.

However, this design introduces specific implementation risks. Hypoid gears experience high sliding friction as the teeth mesh and wipe against each other. They strictly require API GL-5 extreme-pressure gear oil. This specific oil contains sulfur-phosphorus additives that create a sacrificial chemical layer on the gear teeth. Using standard gear oil lacking these extreme-pressure additives causes rapid, catastrophic failure of the ring and pinion gears due to excessive heat and metal-to-metal wear.

Anatomy of an Axle Differential Carrier Assembly: Parts Glossary & Vulnerability Ranking

Understanding the internal components of an Axle Differential Carrier Assembly helps in diagnosing failures accurately. The components divide into primary drive parts and structural support parts.

Primary Drive Components (High Wear Risk)

The primary drive components sustain the highest torque loads in the drivetrain. The ring and pinion gears are a matched set responsible for the final drive ratio. Manufacturers lap these gears together at the factory to ensure a perfect wear pattern. You must always replace them as a pair. Their primary vulnerability is a high risk of scoring if the fluid becomes contaminated with metal shavings. They also fail quickly if the pinion bearings lose their preload, causing the gears to deflect under load.

The spider gears and side gears handle the speed differentiation. While they do not bear the constant rotational load of the ring and pinion during straight-line driving, they remain highly vulnerable to chipping. Heavy shock loads, such as sudden traction grabs during off-road driving or aggressive acceleration on uneven surfaces, easily fracture these smaller gears.

Structural and Support Components (Maintenance Focus)

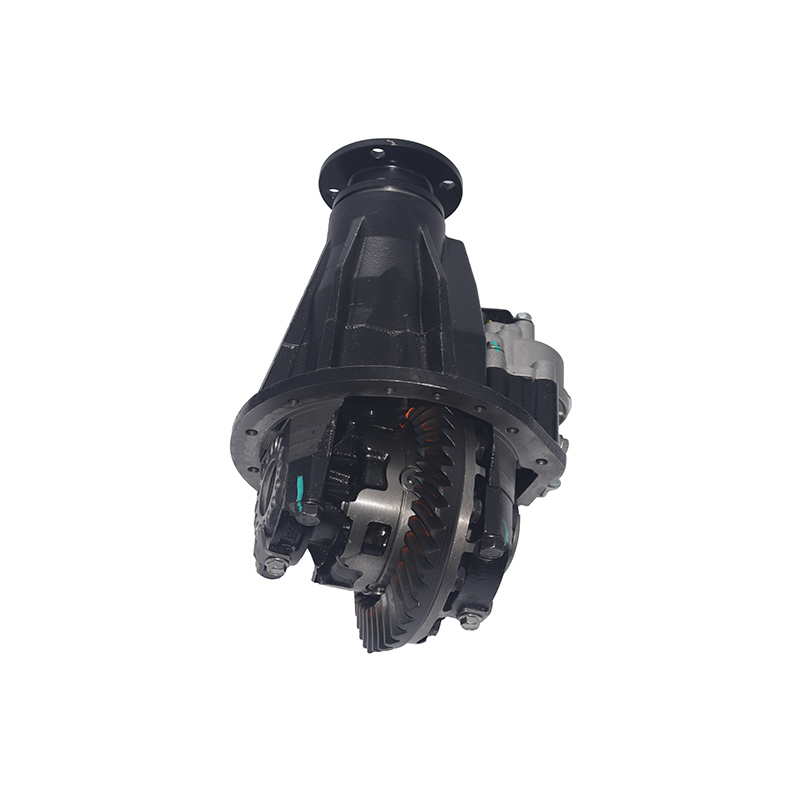

The structural components keep the internal gears aligned under massive stress. Complete 3rd members are pre-assembled, drop-in carrier units containing the ring, pinion, and differential. They appear commonly in specific axle designs, such as the Ford 9-inch or many Toyota axles. This design allows mechanics to swap gear ratios rapidly without setting up the gears under the vehicle.

Axle bearings, carrier bearings, and pinion bearings maintain precise gear alignment. They are often the first point of failure due to normal mileage wear. A failing bearing typically causes a low-pitch growling noise that increases with vehicle speed. Crush sleeves and shim kits set the exact pinion bearing preload and gear backlash during installation. Finally, differential covers, yokes, flanges, and seals form the external sealing points. Pinion and axle seals frequently leak as the rubber hardens over time. This leads to fluid starvation and total unit failure if ignored.

Evaluating Differential Types for Your Drivetrain

Choosing the right differential depends heavily on the vehicle's intended use. Different mechanisms offer distinct advantages for daily commuting, performance driving, or heavy-duty industrial applications.

Open Differentials (Standard)

Open differentials represent the most common type found in passenger vehicles. They utilize standard spider and side gears to allow smooth cornering. They are highly reliable and cost-effective for daily driving. However, they fail in low-traction environments. Because power follows the path of least resistance, an open differential will send all engine torque to the wheel with the least traction, leaving the vehicle stuck.

Limited-Slip Differentials (LSD)

Limited-slip differentials solve the traction problem of open units. Clutch-type LSDs (often called Posi-Traction) use friction plates to bias torque to the wheel with grip. The implementation risk here involves wear. Clutches wear out over time and require specific friction modifier additives in the fluid to prevent clutch slip and chattering. Helical or gear-type LSDs (like Torsen or Truetrac) use worm gears to bias torque. They offer a distinct advantage because they have no clutches to wear out, providing smoother engagement. However, they require at least some traction on both wheels to function properly.

Locking Differentials

Locking differentials mechanically lock both axles together. This forces 100% equal wheel speed regardless of traction conditions. This setup is strictly for severe off-road or heavy-duty industrial use. If engaged on dry pavement, a locking differential causes severe tire wear, aggressive hopping during turns, and massive drivetrain stress that can snap axle shafts.

The EV/Hybrid Evolution & Torque Vectoring

The automotive landscape is shifting rapidly with the rise of dual-motor electric vehicles and advanced AWD systems. These modern drivetrains often utilize electronic torque vectoring. This system uses wheel speed sensors to independently distribute power to each wheel via separate electric motors. In some EV architectures, this technology completely bypasses the need for a traditional mechanical front differential assembly. The vehicle relies entirely on software algorithms to manage wheel speed differentiation and traction control.

Diagnosing Rear Differential Assembly Failure

Acoustic Diagnostics (Sound to Component Mapping)

Listening to your drivetrain is the first step in diagnosing a failing unit. Specific sounds correlate directly to specific internal component failures. Mapping these sounds saves hours of diagnostic labor.

• Whining or Howling (Acceleration/Deceleration): A high-pitched whine indicates improper gear mesh or failing pinion bearings. If it whines only under acceleration, the pinion bearing preload is likely loose. If it whines during deceleration, the pinion depth is incorrect.

• Low-Pitch Growling (Speed Dependent): A rumble or growl that changes pitch with vehicle speed typically points to pitted or worn carrier bearings or wheel bearings.

• Shuddering or Chattering (Low-Speed Sharp Turns): Experiencing a vibration or chatter during tight parking lot maneuvers is a classic symptom of worn LSD clutch packs. It also indicates degraded fluid lacking the necessary friction modifiers.

• Clunking: A distinct metallic clunk when shifting from reverse to drive, or when transitioning on and off the throttle, indicates excessive play. This points to worn spider gears, excessive ring and pinion backlash, or broken gear teeth.

Visual Diagnostics

Visual inspections confirm acoustic suspicions before you open the housing. Check for fluid leaks around the differential cover gasket and the front pinion seal. Weeping gear oil is a clear sign that the fluid level is dropping, which leads directly to overheating. Additionally, check the magnetic drain plug for metal contamination. A fine metallic paste is normal wear over 50,000 miles. However, excessive metal shavings or large chunks indicate severe internal component degradation requiring immediate rebuild.

The DIY "Spin Test"

You can identify your differential type and check for internal binding using a simple spin test. Follow these steps carefully.

• Safely lift the drive axle using a floor jack and secure the vehicle on heavy-duty jack stands. Ensure both drive wheels are completely off the ground.

• Place the transmission in neutral and release the parking brake.

• Spin one wheel forward by hand and observe the opposite wheel.

• If the opposite wheel spins backward, the vehicle has an open differential.

• If the opposite wheel spins forward (and you feel mechanical resistance), the vehicle is equipped with a limited-slip or locking differential.

Repair vs. Replace: TCO & ROI Drivers

Rebuild Kits vs. Complete Assemblies

When failures occur, decision-makers must weigh the Total Cost of Ownership (TCO). Repair strategies vary wildly in cost and required technical expertise. A basic seal and bearing service typically costs between $300 and $900. This remains a viable option if you catch the issue early, before metal shavings damage the expensive ring and pinion gears.

An internal gear rebuild costs between $1,000 and $2,500. This becomes necessary when the ring and pinion are scored or chipped. This route requires high technical expertise. A technician must use dial indicators and marking compound to correctly set backlash, pinion depth, and bearing preload. Improper setup destroys the new gears within 100 miles.

Alternatively, a Differential Assembly replacement ranges from $2,500 to $6,000 or more. While the upfront cost is higher, it is often the most cost-effective ROI for fleet vehicles. It is also the only viable option in cases of severe failure where the carrier housing itself is warped or heavily contaminated with metal shrapnel. A complete replacement significantly reduces labor hours. It guarantees factory-spec tolerances and minimizes vehicle downtime, getting commercial assets back on the road faster.

Conclusion

To protect your drivetrain and prevent catastrophic mechanical failures, take the following next steps:

• Perform a visual inspection for fluid leaks around the pinion seal and differential cover every 10,000 miles.

• Drain a small amount of fluid to check the magnetic plug for excessive metal shavings if you hear any abnormal drivetrain noise.

• Conduct a road test, noting any whining, growling, or clunking sounds at various speeds and throttle loads.、

• Consult with a drivetrain specialist to determine if a targeted bearing kit or a complete assembly replacement is required based on your acoustic findings.

FAQ

Q: What is the difference between a transaxle and a differential?

A: A differential is a standalone unit that splits power to the wheels, typically found on the rear axle of RWD vehicles. A transaxle combines the transmission, differential, and drive axle connections into a single integrated housing, commonly used in FWD vehicles.

Q: How often should differential fluid be changed?

A: Differential fluid should generally be changed every 30,000 to 50,000 miles, depending on the manufacturer's recommendations and driving conditions. Vehicles used for towing, off-roading, or heavy hauling require more frequent fluid changes to prevent premature gear wear.

Q: Can I drive with a leaking differential cover?

A: Driving with a minor weep is possible temporarily, but it is highly risky. A leak leads to fluid starvation, which causes excessive friction and heat. This will quickly destroy the bearings and gears, turning a cheap seal replacement into a costly complete assembly failure.

Q: What does a friction modifier do in a limited-slip differential?

A: A friction modifier is a chemical additive mixed with the gear oil in clutch-type limited-slip differentials. It alters the friction characteristics of the oil, allowing the internal clutch plates to slip smoothly during cornering, preventing harsh shuddering or chattering noises.

Q: Why do ring and pinion gears have to be replaced as a matched set?

A: Ring and pinion gears are manufactured and lapped together at the factory to ensure perfect tooth engagement and a specific wear pattern. Replacing only one gear will result in improper meshing, severe whining noises, and rapid mechanical failure.

Q: How much does a complete rear differential assembly cost?

A: A complete rear differential assembly replacement typically costs between $2,500 and $6,000 or more, including parts and labor. The exact price depends on the vehicle make, model, differential type, and whether the unit is new, remanufactured, or used.
