English
33220-37020
for Toyota Coaster Dyna Toyoace
0.3kgs
| Availability: | |
|---|---|
| Quantity: | |

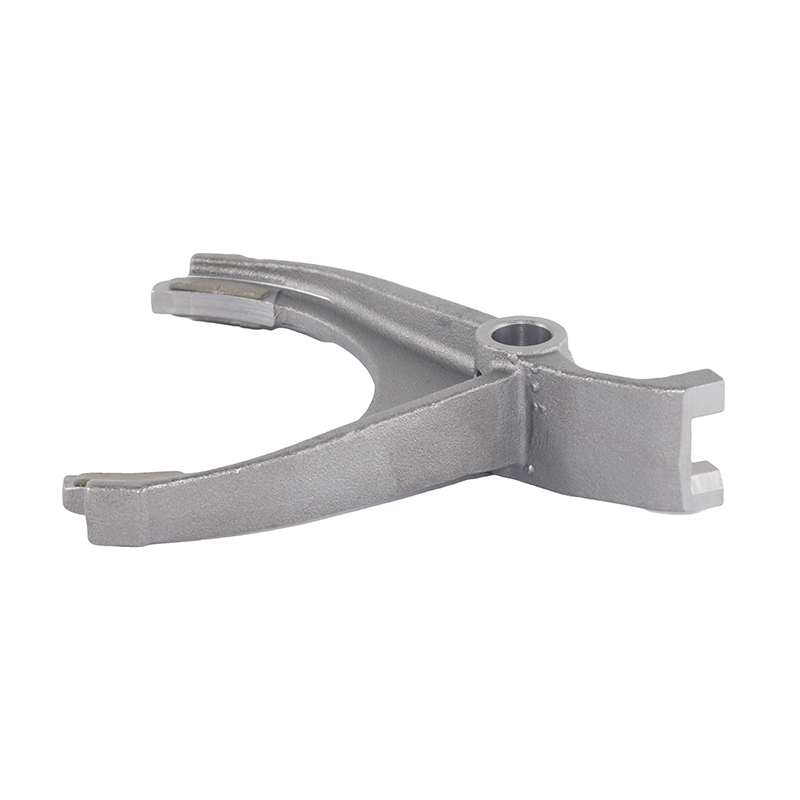

Shifting fork is a critical internal component within a manual or automated manual transmission, responsible for physically engaging and disengaging gears. Typically made from stamped steel or cast iron, it features prongs that fit into the groove of a synchronizer sleeve or sliding gear. When the driver moves the shift lever, the motion is transferred via shift rails to the fork, which then slides the synchronizer assembly axially. This action locks the selected gear to the output shaft, establishing the desired gear ratio. Its precision and durability are vital for ensuring quick, accurate, and reliable gear changes while preventing accidental disengagement under load.

1. Manufactured according to the original vehicle dimensions, enabling perfect replacement of original parts.
2. 12-month quality guarantee service from the date of customer receipt.
3. Small-batch orders are acceptable (retail orders excluded).
4. Focusing on Japanese and Korean models, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, etc.
5. Customizable packaging
Application Field | Drive Method | Core Demand | Typical Material |
Consumer MT | Human (Cable/Linkage) | Low Cost, Clear Feel, Durability | Stamped Steel, Ductile Iron |
AMT / Auto Trucks | Electric/Hydraulic Actuators | Control Precision, Speed, Automation | High-Strength Steel, Aluminum Alloy |
Racing / Moto | Mechanical Cam/Drum | Extreme Lightweight, Impact Resistance, Speed | CNC Aluminum, Titanium |
Construction Mach. | Direct Hydraulic Drive | High Torque Capacity, Harsh Environment Adaptability | Alloy Steel (Surface Hardened) |
Material Specifications
Low-Carbon Alloy Steel: SAE 8620 (20CrMnTi), SAE 4120. Suitable for carburizing; offers a tough core and hard surface.
Medium-Carbon Structural Steel: SAE 1045 (45#), SAE 4140. Suitable for induction hardening; lower cost, used for light-duty or commercial applications.
High-Strength Aluminum Alloy: 7075-T6, 6061-T6. Reserved for racing or ultra-lightweight designs (requires hard anodizing or coatings).
Powder Metallurgy (PM): Iron-based PM. Ideal for high-volume, complex shapes, and low-cost passenger car applications; can be oil-impregnated for self-lubrication.
Heat Treatment & Surface Finish
Carburizing & Hardening
Application: Alloy steel forks.
Surface Hardness: 58 – 64 HRC (contact surfaces and fork fingers).
Core Hardness: 30 – 45 HRC (ensures impact toughness).
Effective Case Depth (ECD): 0.6 mm – 1.2 mm (depends on module and load).
Induction Hardening:
Application: Medium-carbon steel forks.
Hardness: 50 – 58 HRC (limited to contact areas).
Characteristics: Minimal distortion, high efficiency, but shallower case depth.
Surface Treatments:
Phosphating: Black or gray phosphate coating to improve initial break-in performance and rust resistance.
In the highly competitive automotive after-sales market, the core competitiveness of our shift lever lies in the combination of professionalization and flexibility: we focus on the segmented track of Japanese and Korean vehicle models, and achieve higher product matching accuracy through in-depth research on the characteristics of the brand's transmission system; at the same time, we break the limitation of large minimum order quantity of traditional auto parts manufacturers, support small-batch orders, and provide customizable packaging and perfect warranty service.
Whether you are a repair shop pursuing installation efficiency, a distributor focusing on market demand, or a modification workshop paying attention to product quality, our shift lever can meet your personalized needs with OEM-level quality, flexible procurement terms and targeted after-sales support. We are committed to becoming the most reliable supplier of shift levers for Japanese and Korean vehicle models in the automotive aftermarket!
