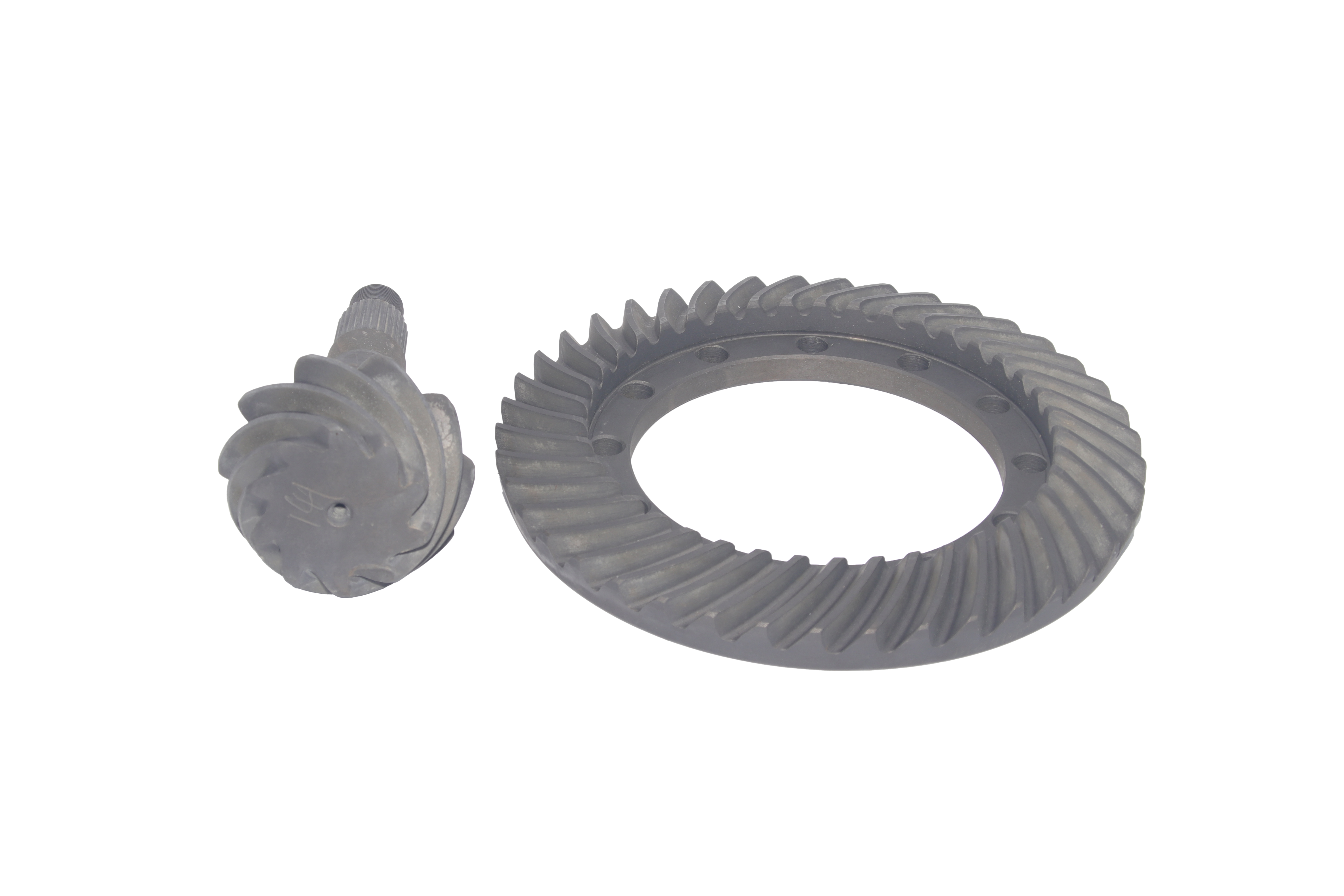

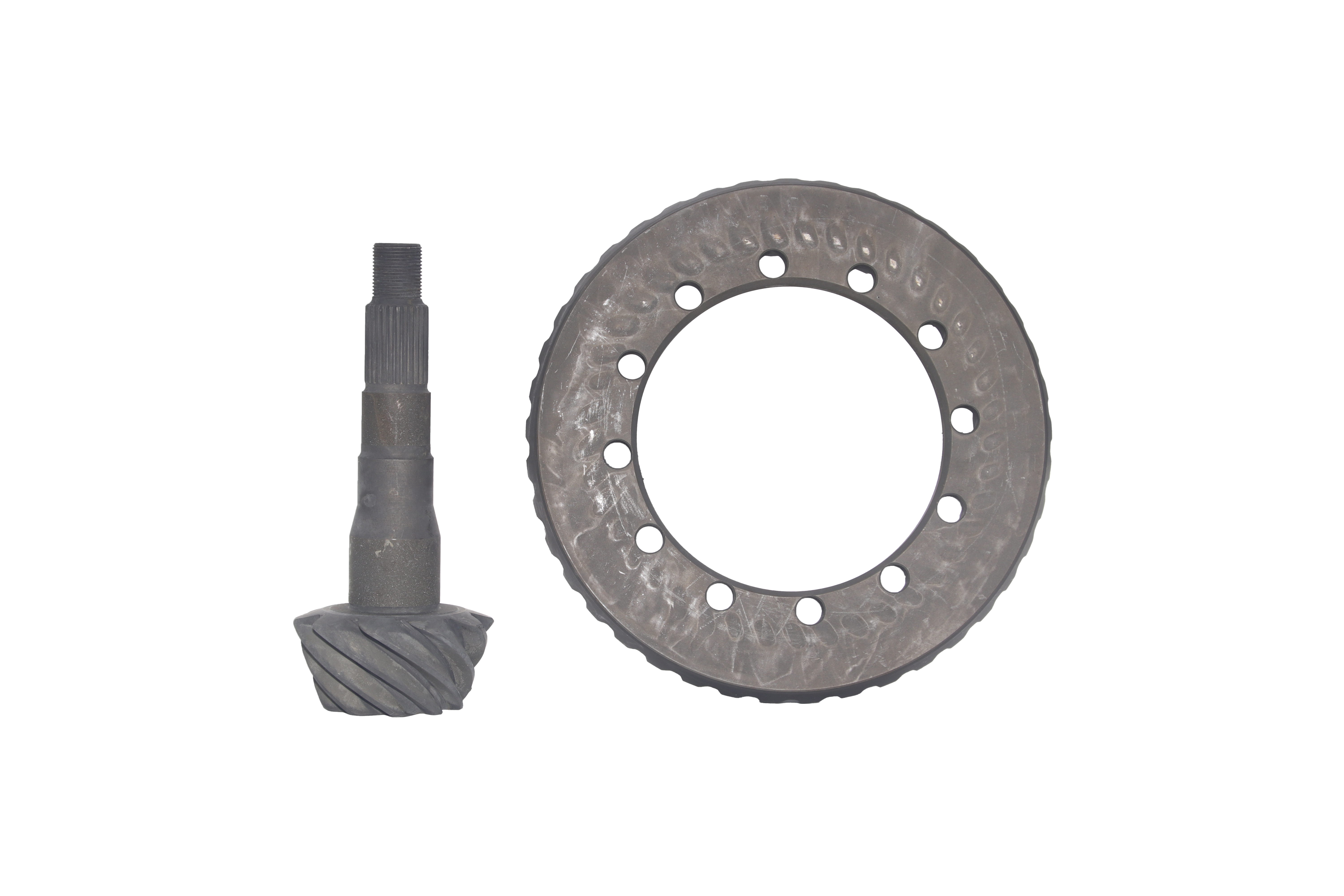

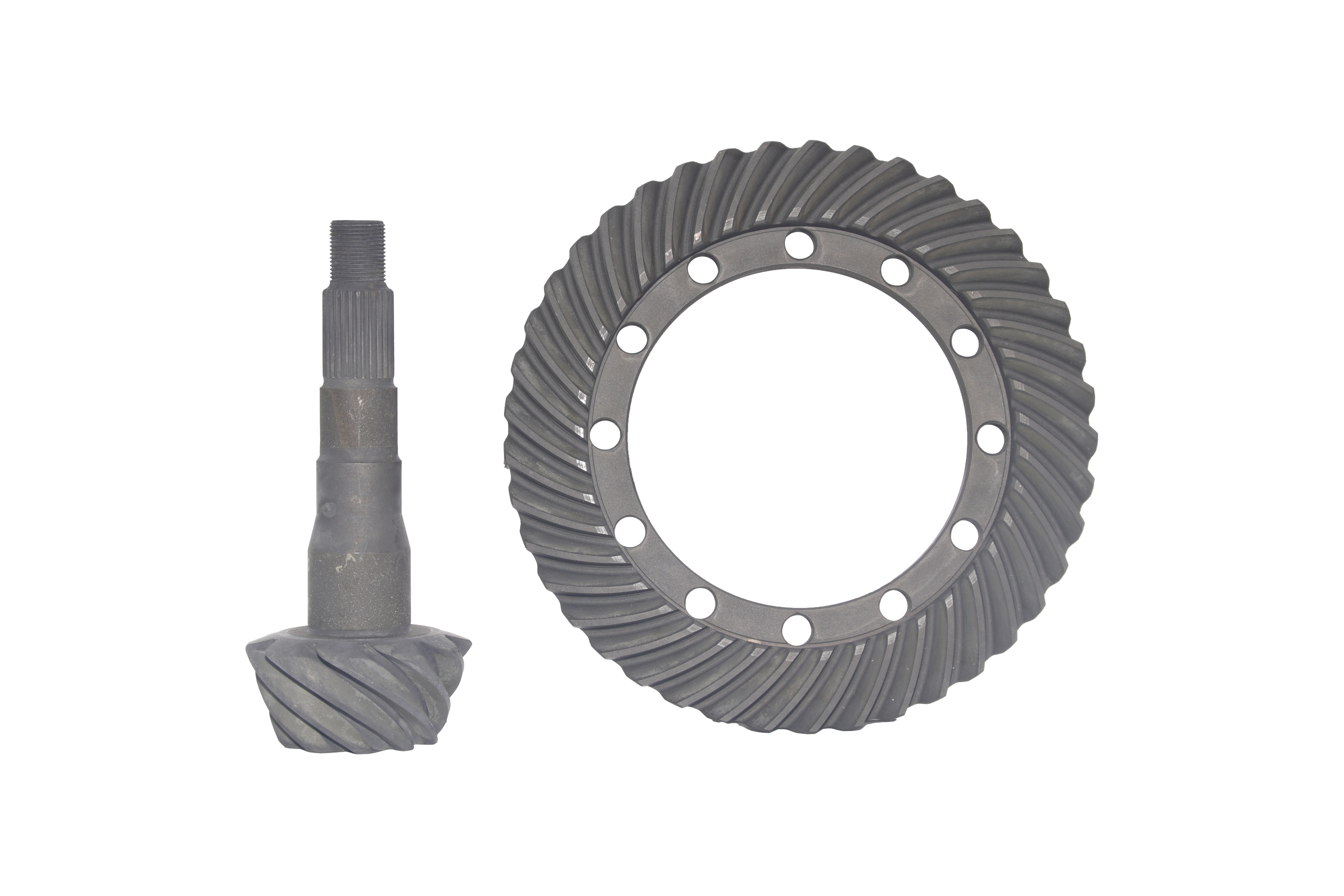

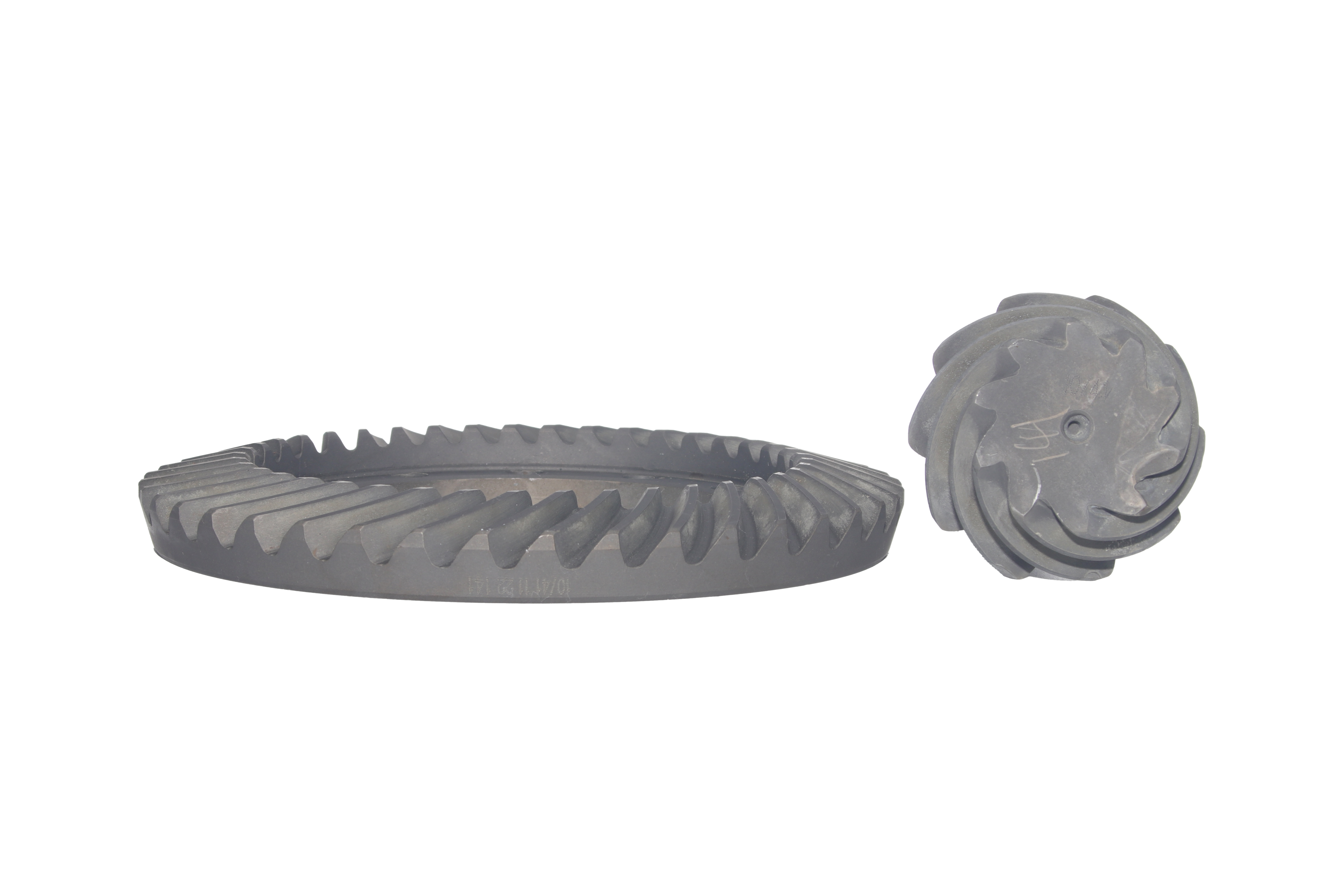

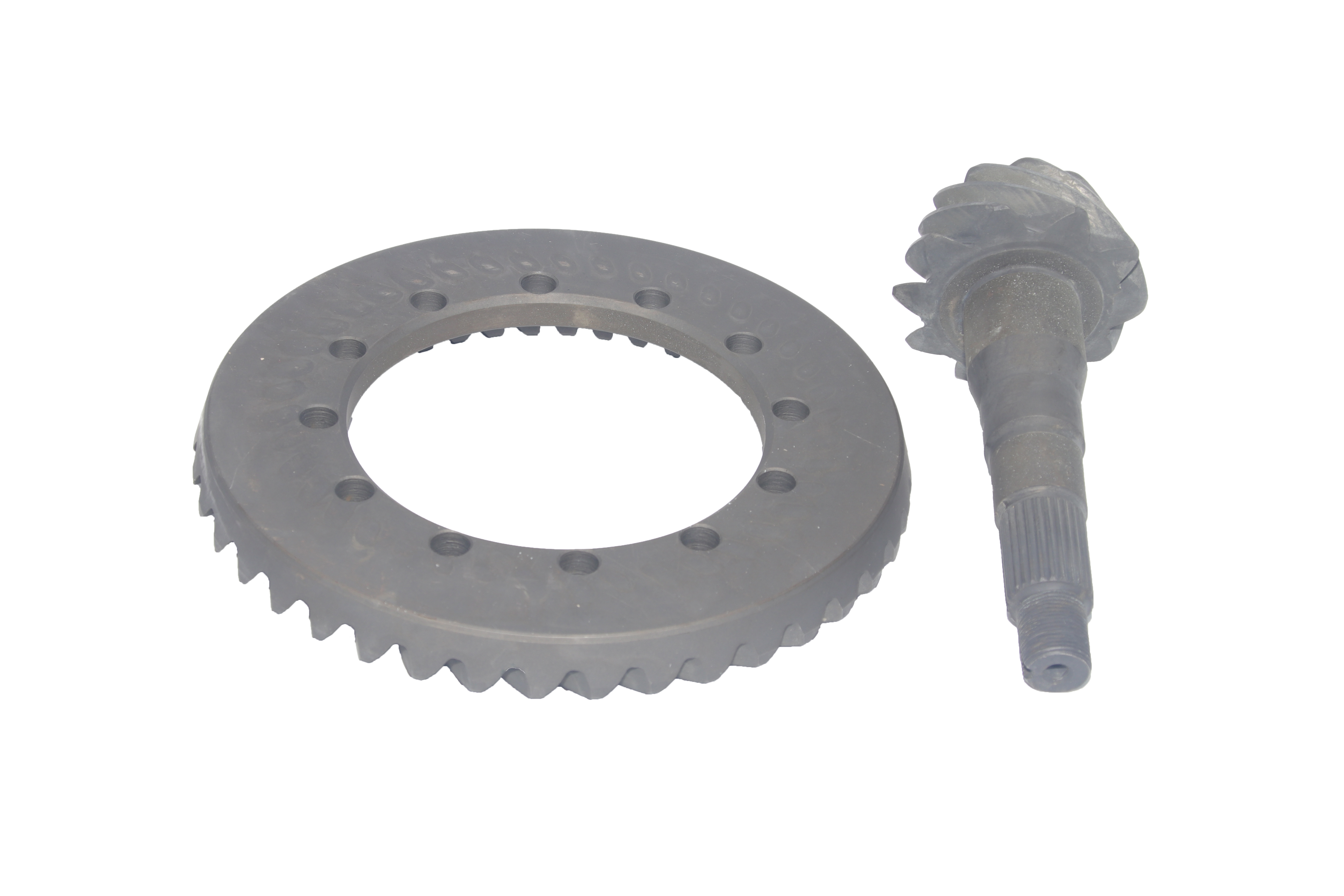

10x41 Crown Wheel Pinion Toyota LandCruiser FZJ80 LC80 41201-69255

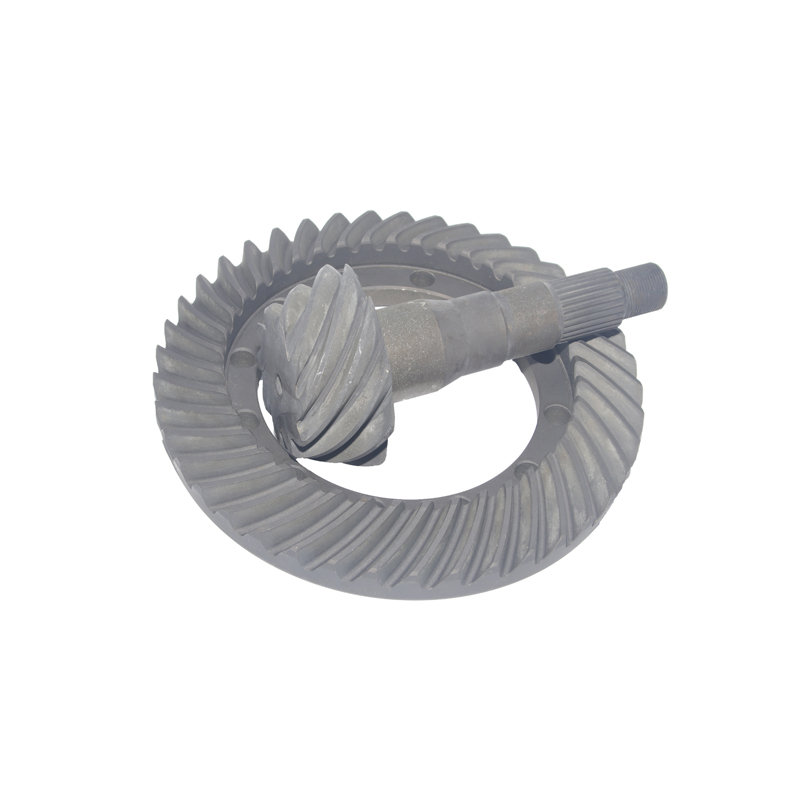

The Crown Wheel & Pinion Gear Set OE 41201-69255 is an important component of the Toyota Land Cruiser final-drive and differential system. The gear set consists of a smaller pinion gear and a larger crown wheel (ring gear). It transfers rotational power from the driveshaft to the differential and changes the direction of power transmission before torque is delivered to the axle shafts and drive wheels. With a 10×41 tooth configuration, the pinion has 10 teeth and the ring gear has 41 teeth, providing a final-drive ratio of 4.10:1. The correct final-drive ratio helps determine the balance between wheel torque, engine speed, acceleration and cruising characteristics. A properly matched ring-and-pinion set can help restore drivetrain performance when the original gears are worn, damaged or require replacement during differential rebuilding.

Core Advantages

1. The 10×41 configuration provides a 4.10:1 final-drive ratio, offering a balanced combination of torque multiplication and vehicle operating speed for compatible applications.

2. Manufactured from automotive-grade gear steel and heat-treated to provide the strength and wear resistance required for demanding final-drive applications.

3. The matched crown wheel and pinion are designed to transfer drivetrain torque efficiently from the driveshaft to the differential carrier.

4. Toyota Land Cruiser vehicles are widely used for utility, off-road and demanding road conditions. A properly matched final-drive gear set provides the mechanical strength required for these drivetrain applications.

Application Scenarios

Toyota Land Cruiser differential repair

Land Cruiser rear axle rebuilding

Land Cruiser final-drive replacement

Ring-and-pinion replacement

4WD drivetrain repair

Differential overhaul

Off-road vehicle maintenance

Fleet vehicle maintenance

Commercial and utility vehicle repair

Automotive aftermarket distribution

International wholesale supply

Usage & Installation Guide

Professional installation by a qualified differential technician is strongly recommended.

Step 1 – Verify the Original Specification

Before installation, confirm:

OE number

Vehicle model

Model year

Axle model

Front or rear axle

Ring gear tooth count

Pinion tooth count

Original final-drive ratio

Step 2 – Remove the Original Gear Set

Safely support the vehicle, drain the differential oil and remove the differential assembly according to the applicable service procedure.

Step 3 – Inspect Related Components

Check the condition of:

Differential carrier

Pinion bearings

Carrier bearings

Oil seals

Differential housing

Axle shafts

Ring gear mounting surface

Pinion flange

Related fasteners

Replace worn bearings and seals where necessary.

Step 4 – Install the Crown Wheel & Pinion

Install the 10T pinion and 41T ring gear as a matched gear set. Ensure correct alignment and mounting.

Step 5 – Set Pinion Depth

Adjust pinion depth according to the applicable Toyota axle specifications.

Step 6 – Adjust Backlash

Set ring-and-pinion backlash according to the manufacturer's specifications and verify the gear-contact pattern.

Step 7 – Check Bearing Preload

Adjust pinion and carrier bearing preload according to the relevant service specifications.

Step 8 – Add Differential Lubricant

Fill the axle with the recommended final-drive lubricant to the specified level.

Step 9 – Final Inspection

Rotate the differential assembly manually and check:

Gear mesh

Backlash

Contact pattern

Abnormal resistance

Bearing noise

Step 10 – Road Test

After installation, perform a controlled road test and check for abnormal gear noise, vibration or oil leakage.

Important: Ring-and-pinion gears must be professionally installed and correctly set up. Incorrect pinion depth, backlash, preload or gear-contact pattern may cause excessive noise, overheating, accelerated wear or premature gear failure.

After-Sales Service & Warranty

12-Month Warranty

We provide a 12-month warranty against verified manufacturing-related quality issues under normal operating conditions and professional installation.

Pre-Shipment Inspection

Before shipment, products can be inspected for:

OE number

Tooth count

Gear ratio

Gear surface condition

Machining quality

Product appearance

Packaging condition

Fitment Verification

To reduce incorrect orders, customers are encouraged to provide:

OE number

Toyota Land Cruiser model

Model year

VIN

Axle model

Existing gear ratio

Ring gear tooth count

Pinion tooth count

Original gear photos

Key dimensions, if available

Our technical team can assist with compatibility confirmation before shipment.

Technical Support

We provide assistance with:

Product identification

Gear-ratio verification

Axle matching

Installation questions

Differential setup

Gear-noise troubleshooting

After-sales support

Global Wholesale Service

We support international wholesalers, distributors, repair workshops and 4WD specialists with:

Bulk orders

Export packaging

Pre-shipment inspection

Product matching

International shipping coordination

Long-term aftermarket supply

Warranty Claim Support

If a verified manufacturing-related quality issue occurs during the warranty period, customers can provide product photos, installation details, vehicle information and relevant evidence for assessment and solution.
