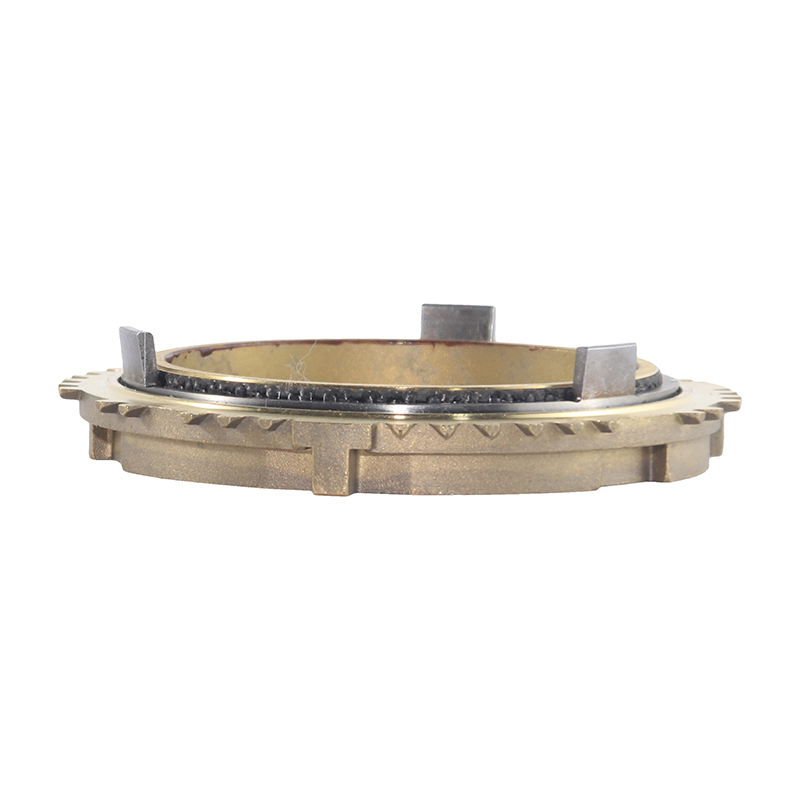

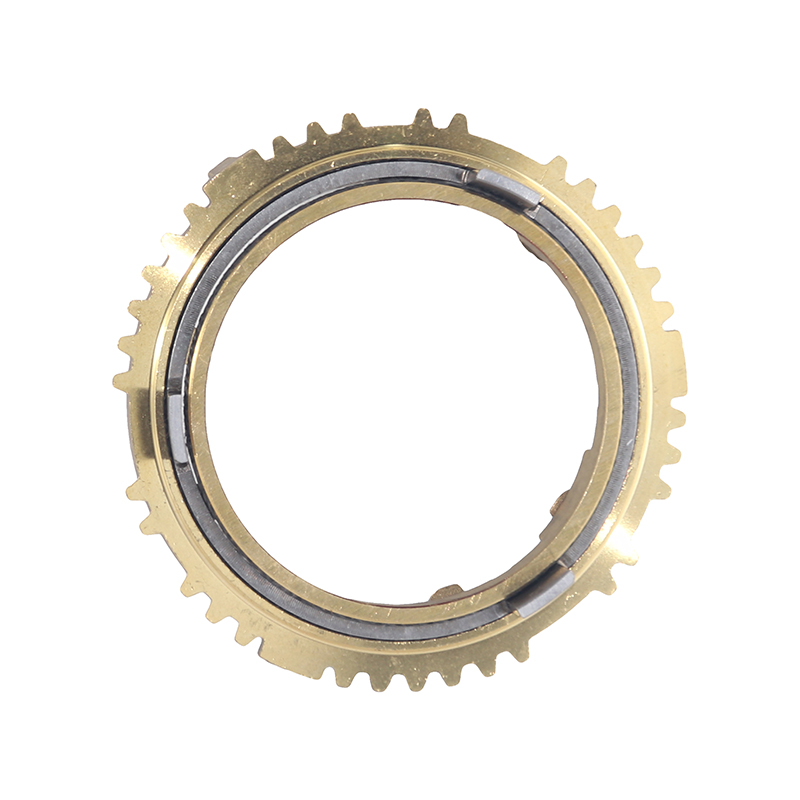

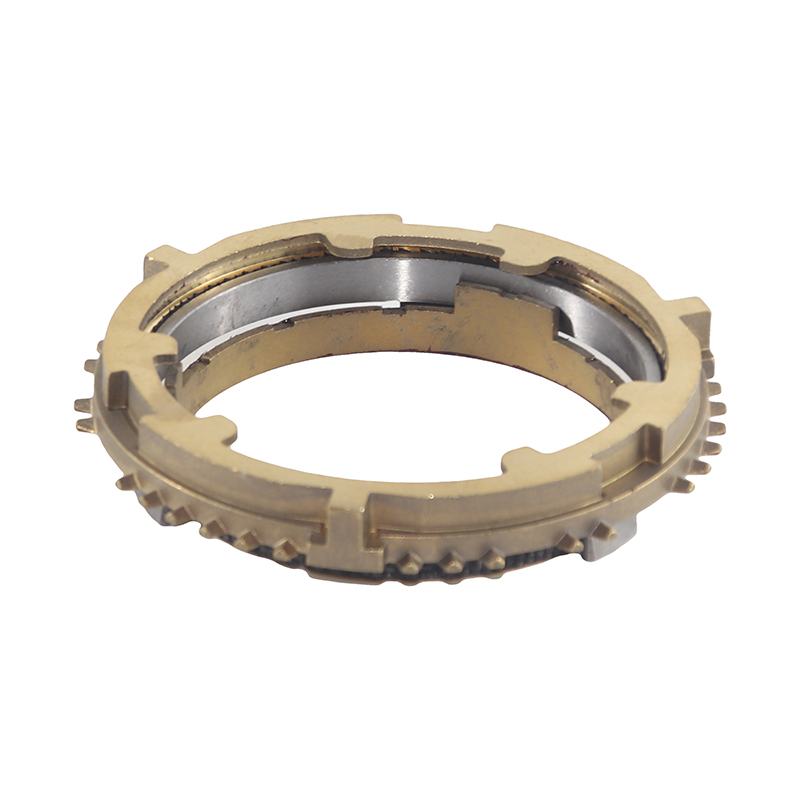

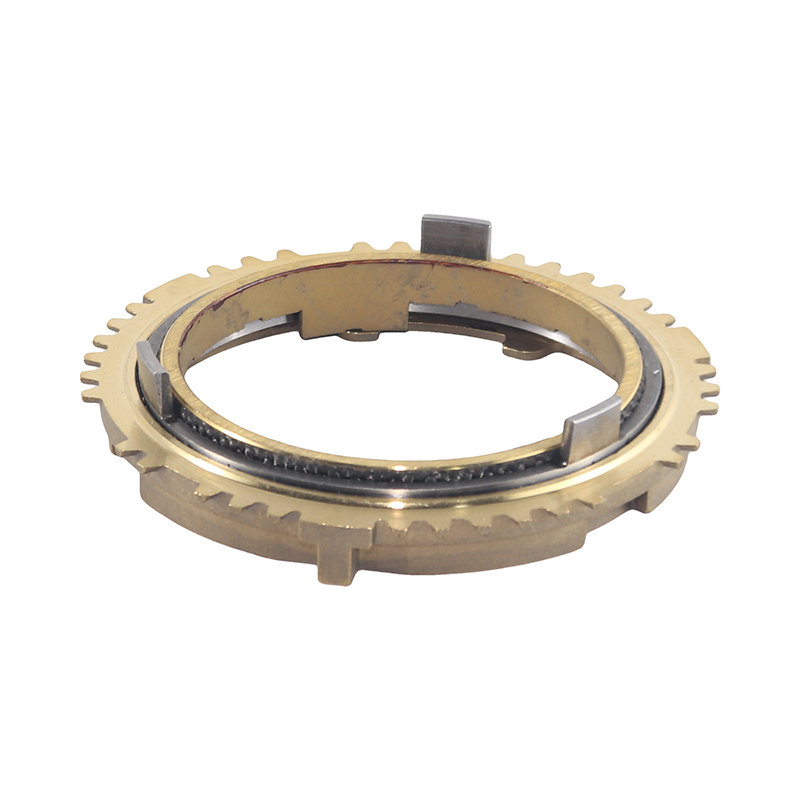

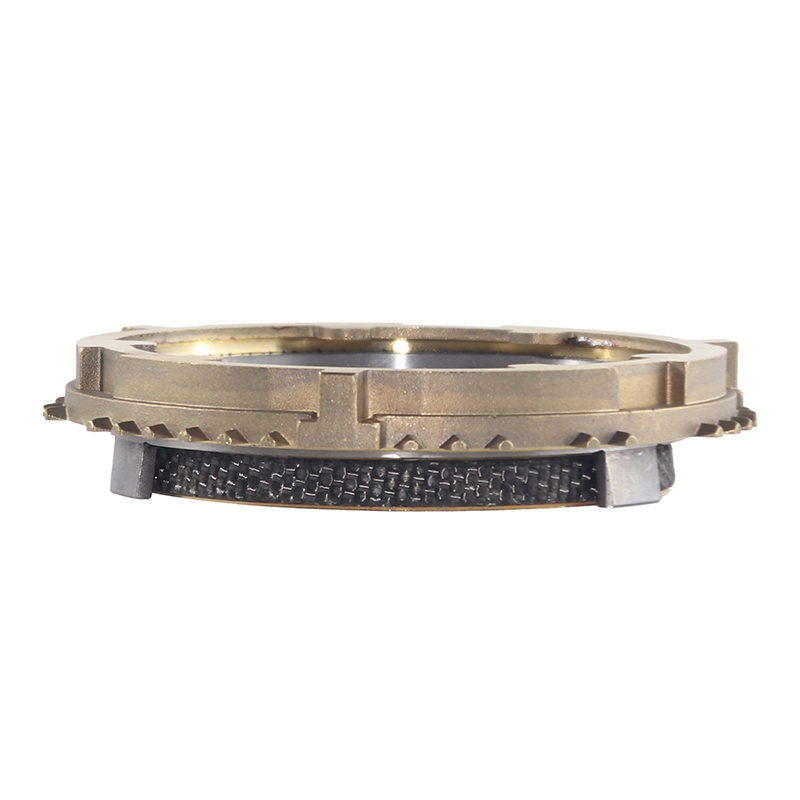

Synchronizer Ring

1. Manufactured according to the original vehicle dimensions, enabling perfect replacement of original parts.

2. 12-month quality guarantee service from the date of customer receipt.

3. Small-batch orders are acceptable (retail orders excluded).

4. Focusing on Japanese and Korean models, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, etc.

5. Customizable packaging

1. Passenger Car Manual Transmissions

This is the most widespread application field for synchronizer rings.

• Application Logic: Almost all forward gears (1st–6th) in modern passenger car manual transmissions are equipped with synchronizers. Drivers shift frequently while driving, relying on synchronizer rings to eliminate speed differences and prevent gear grinding.

Scenario Breakdown:

• Low Gears (1st, 2nd, Reverse): These gears experience the largest speed differences during起步 (starting) and low-speed driving, with high shifting frequency. Consequently, the synchronizer rings here endure the highest frictional heat and wear. They typically employ double-cone or triple-cone designs to increase friction surface area and synchronization capacity.

• High Gears (5th, 6th): Speed differences are relatively smaller. Single-cone synchronizer rings are usually sufficient, helping to reduce costs and space requirements.

• Material Trends: A shift from traditional brass/bronze towards sintered metal (iron-based) and carbon-fiber composites to improve heat resistance and wear durability, accommodating shorter shift times.

2. Light & Medium Commercial Vehicles

Includes pickup trucks, light-duty trucks, and vans.

• Application Logic:

• Heavy-Load Starting: Vehicles often carry full loads, meaning the inertial mass for 1st and 2nd gears is huge. Synchronizer rings must overcome significant rotational inertia differences.

• Frequent Start-Stop: Urban logistics vehicles start and stop constantly, leading to extremely high working frequencies and rapid wear of the rings.

Special Requirements:

• Durability First: Compared to shift speed, lifespan and reliability are prioritized. Thickened sintered metal synchronizer rings are common; while their friction coefficient might be slightly lower than carbon fiber, their wear resistance is excellent, and costs are controllable.

• Contamination Resistance: Given the harsh operating conditions, the design must ensure functionality even if the lubricant is slightly contaminated.

3. Heavy-Duty Trucks & Buses (Specific Cases)

• Current Status: Traditional heavy-duty trucks (e.g., long-haul tractors) often use non-synchronized transmissions (requiring "double-clutching" with clutch brakes) or AMTs (Automated Manual Transmissions). However, synchronizer rings are still applied in:

• City Buses: Due to frequent starting and low-gear shifting, modern manual or AMT transmissions in city buses often equip heavy-duty synchronizer rings in lower gears.

• Medium-Duty Trucks / Engineering Vehicles: Certain engineering vehicles (e.g., dump trucks moving within a site) that don't require extreme heavy hauling but need frequent shifting may be equipped with reinforced synchronizers.

• Auxiliary Transmissions: In some heavy-duty transmissions with sub-gearboxes (Range/Splitter), the sub-box shifting may also utilize synchronizer ring structures, though many still use pneumatic locking mechanisms.

• Characteristics: Massive size, typically made of high-strength sintered steel, with friction surfaces specially treated to withstand inertial impacts of several tons.

Core Product Specifications

• Cone Angle Standard Range: Typically 6° – 9° (most common are 7° or 8°).

• Note: A smaller angle generates higher friction torque (self-energizing effect) but increases synchronization time and risks "self-locking." A larger angle allows faster synchronization but requires greater axial shift force.

• Definition: The effective radius of the friction cone surface.

• Impact: Directly determines the magnitude of the synchronization torque

• Single-Cone: Typically 10 – 25 mm.

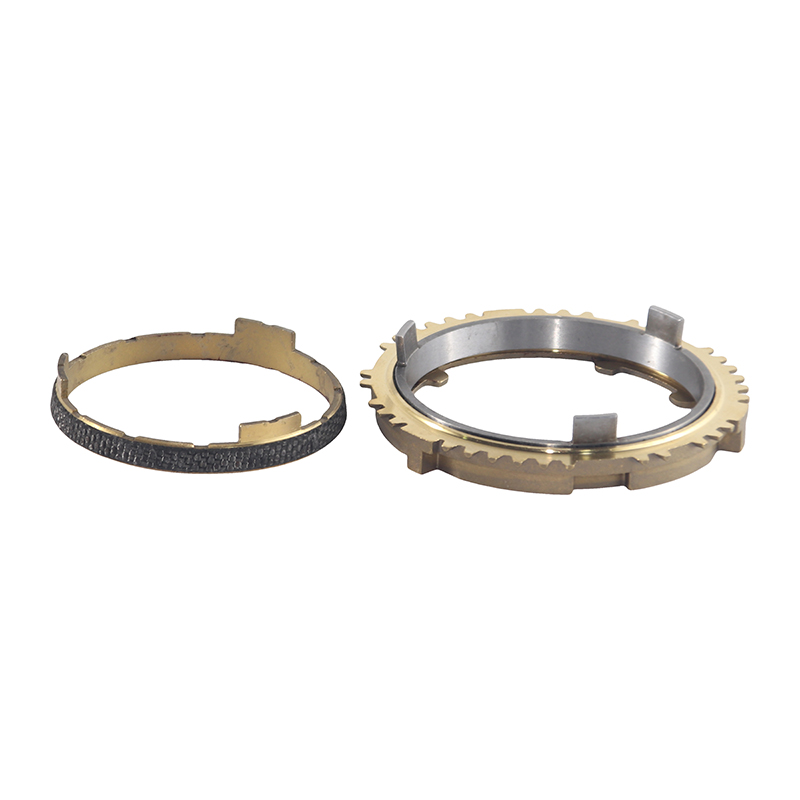

• Multi-Cone: Individual cone widths are narrower, but the total effective friction area is multiplied.

• Quantity: Typically 3 (evenly distributed); heavy-duty designs may use 4–6.

• Tolerance: Clearance with the shift fork struts/keys must be controlled within 0.05 – 0.15 mm to ensure smooth rotation during the pre-synchronization phase and precise locking during engagement.

• Tooth End Chamfers: Critical locking surfaces require precision chamfering to prevent scoring the engaging sleeve or causing stress concentrations.

In the highly competitive automotive after-sales market, the core competitiveness of our shift lever lies in the combination of professionalization and flexibility: we focus on the segmented track of Japanese and Korean vehicle models, and achieve higher product matching accuracy through in-depth research on the characteristics of the brand's transmission system; at the same time, we break the limitation of large minimum order quantity of traditional auto parts manufacturers, support small-batch orders, and provide customizable packaging and perfect warranty service.

Whether you are a repair shop pursuing installation efficiency, a distributor focusing on market demand, or a modification workshop paying attention to product quality, our shift lever can meet your personalized needs with OEM-level quality, flexible procurement terms and targeted after-sales support. We are committed to becoming the most reliable supplier of shift levers for Japanese and Korean vehicle models in the automotive aftermarket!
