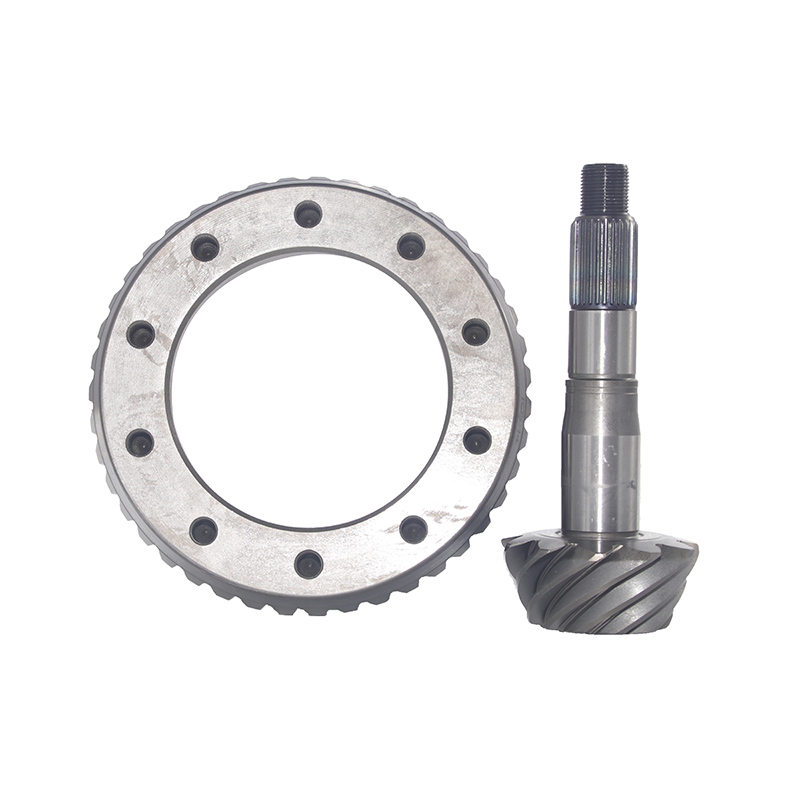

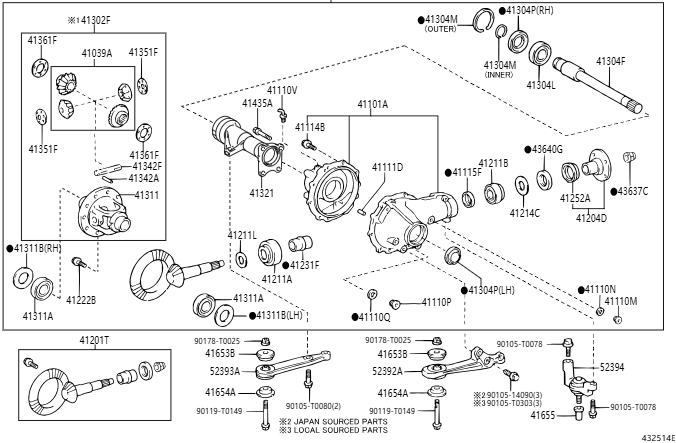

1.1 Geometric & Dimensional Parameters

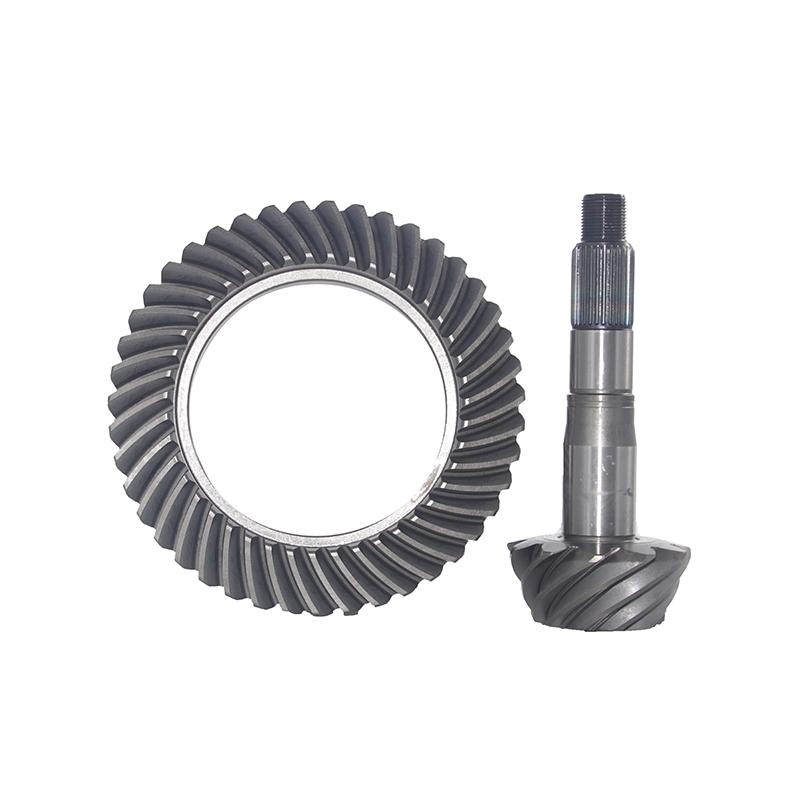

Hypoid Gears: Most common for automotive RWD/AWD vehicles (offset pinion axis), offering smooth operation and high torque capacity—standard for most Japanese/Korean passenger cars, trucks, and SUVs.
Spiral Bevel Gears: Used in applications where shafts intersect, suitable for some commercial and industrial vehicles.
Straight Bevel Gears: Rare in modern axles, typically found in low-speed differentials or older vehicle designs.
Passenger Cars: DP 8 – 12 (fine pitch for smooth, quiet operation).
Light Trucks/SUVs: DP 6 – 9 (balanced strength and smoothness).
Heavy-Duty Trucks: Module 8 – 14 mm (coarse pitch for enhanced strength).
Typically 25% – 35% of the cone distance.
Passenger Cars: 20 mm – 40 mm.
Heavy-Duty Vehicles: 60 mm – 120 mm+.

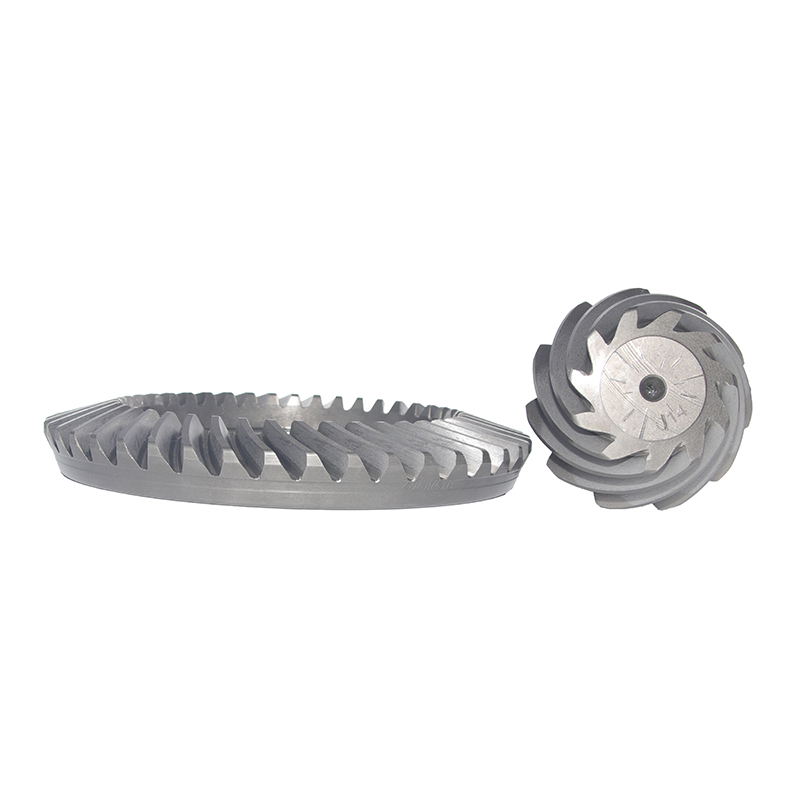

Spiral Angle: Typically 35° – 50°; higher angles provide smoother gear engagement but generate more axial thrust.
Standard: 20° or 22.5° (ideal for most passenger and light-duty vehicles).
High-Load Applications: Up to 25° (increases tooth root strength for heavy-duty use).

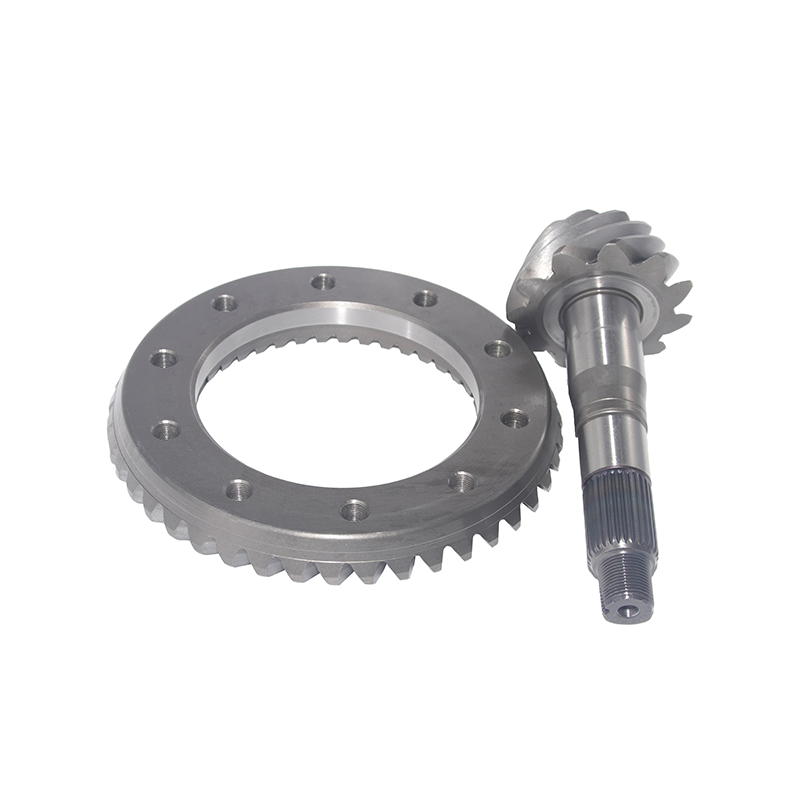

Pinion: Typically 7 – 13 teeth (low tooth count requires special profile shifting to avoid undercutting).

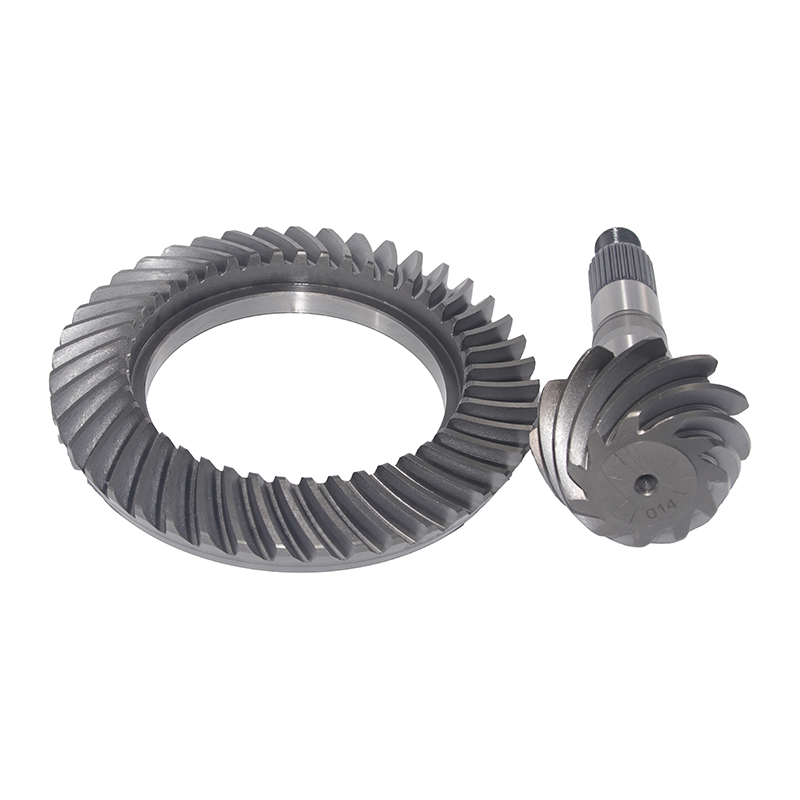

Ring Gear (Crown Wheel): Typically 30 – 55 teeth (varies based on desired final drive ratio).
Economy/Highway: 2.73:1 – 3.31:1 (optimized for fuel efficiency at high speeds).
Standard/Balance: 3.55:1 – 3.91:1 (balanced acceleration and fuel economy for daily use).
Performance/Towing/Off-Road: 4.10:1 – 5.38:1 (up to 7.0:1+ for specialized mining/agricultural equipment).
1.2 Material & Heat Treatment Specifications
Standard Automotive: SAE 8620H (20CrMnTiH equivalent) – Nickel-Chromium-Molybdenum steel, ideal for most passenger and light-duty vehicles.
Heavy-Duty/Performance: SAE 4320H, 4820H, or 300M (ultra-high strength vacuum-melted steel) for enhanced durability under heavy loads.
EV Specific: Clean steels with strict inclusion control (ISO 4967 Class A/B < 1.0) to prevent fatigue initiation at high cycle counts.
Carburizing: Deep case carburizing to create a hard surface with a tough core, ensuring resistance to wear and impact.
Case Hardness: 58 – 64 HRC (surface) for wear resistance.
Core Hardness: 30 – 45 HRC (to absorb shock loads without fracturing).
Case Depth: 0.8 mm – 2.5 mm (varies by module size; heavier gears require deeper cases).
Shot Peening: Intensive shot peening on tooth roots to induce compressive residual stresses, improving bending fatigue life by 20–40% and enhancing overall durability.
1.3 Precision & Quality Standards
Commercial Trucks: AGMA 10 – 11.
Passenger Cars: AGMA 12 – 13.
Luxury/EV Performance: AGMA 14+ (requires grinding and super-finishing for ultra-smooth operation).

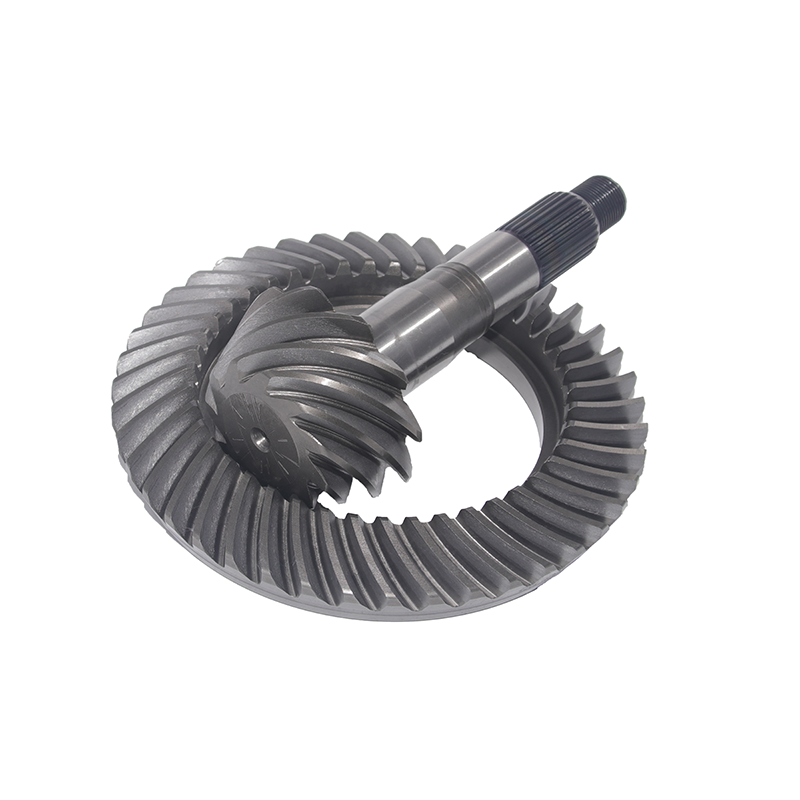

Tooth Contact Pattern: Must be centered on the tooth flank under no-load and shift predictably under load (toe/heel contact control) to ensure longevity and quiet operation.
Noise Grade: "Quiet" or "Silent" grade gear kits undergo additional lapping or grinding to minimize transmission error and reduce noise.
Radial Runout: < 0.03 mm – 0.05 mm.
Face Runout: < 0.03 mm.
1.4 Performance Ratings
Passenger Cars: 1,500 Nm – 4,000 Nm (input torque).
Heavy-Duty Vehicles: 10,000 Nm – 30,000 Nm+.
ICE Vehicles: Max pinion speed ~6,000 – 8,000 RPM.
EV Applications: Max pinion speed 16,000 – 22,000 RPM (requires dynamic balancing to G2.5 or better).
Efficiency: Typical mechanical efficiency: 96% – 98% (hypoid gears have minor sliding friction losses).
2.1 Installation & Setup Criticality
Shim Selection: Precise shims are required to set the Pinion Depth (mounting distance) and Backlash (typically 0.10 mm – 0.25 mm). Incorrect pinion depth is the #1 cause of premature gear failure and noise.
Preload: Pinion bearing preload must be set exactly (measured in inch-lbs or Nm of rotational torque) to prevent bearing brinelling or excessive heat buildup.
Pattern Checking: Installation must include checking the tooth contact pattern using marking compound (Prussian Blue) under both drive and coast loads. The contact pattern is the single most important factor determining gear longevity and noise level.
Break-in Procedure: New Differential Final Gear Kits require a specific break-in period (typically 500 – 1,000 miles / 800 – 1,600 km) with varying speeds and no heavy towing, allowing the gear teeth to wear in smoothly and extend service life.
2.2 Lubrication Requirements
Oil Specification: Must meet API GL-5 or MIL-PRF-2105E standards for optimal gear protection.
Viscosity: SAE 75W-90 (standard), 75W-140 (heavy load/hot climates) for enhanced protection under extreme conditions.
Limited Slip Additives: If used in a clutch-type LSD (Limited-Slip Differential), the oil must contain specific friction modifiers (or be labeled "LS Compatible") to prevent chatter during turns.
EV Fluids: For integrated E-axles, fluids must be electrically non-conductive (dielectric) to protect motor windings, while still providing extreme pressure (EP) protection for gears. Low viscosity (e.g., ISO VG 32 equivalent) is preferred to reduce churning losses at high speeds.
2.3 Failure Mode Analysis
Pitting: Surface fatigue caused by overload or insufficient hardness, appearing as small craters on the tooth surface.
Spalling: Deep pitting leading to large chunks of material breaking off, usually due to misalignment or lubrication failure.
Scuffing/Seizing: Caused by oil film breakdown (wrong oil, overheating, or extreme pressure), resulting in metal-to-metal contact that welds and tears the gear surface.
Toe/Heel Breakage: Caused by incorrect setup (pinion depth or backlash), leading to stress concentration on one end of the tooth.
Whine/Howl:
Drive Whine: Usually caused by incorrect pinion depth or poor contact pattern.
Coast Whine: Often related to gear quality or housing deflection.
Rumble: Typically a bearing failure, not the gears themselves.
2.4 Special Considerations for Electric Vehicles (EVs)
High-Frequency Noise: Without engine noise, gear whine becomes the dominant NVH issue. EV-specific gear sets often use asymmetric tooth profiles and micro-geometry modifications (crowns, tips, roots) to scatter noise frequencies.
Electrical Corrosion: Stray currents can pass through bearings and gears if not properly grounded, causing electrical discharge machining (EDM) damage. Proper grounding straps and conductive greases/oils are critical.
Thermal Management: High speeds generate significant heat from churning and sliding. Oil jets directed specifically at the gear mesh point are common in EV e-axles to maintain optimal operating temperatures.
2.5 Applicable Standards
AGMA 2000/2001: Fundamental rating factors and calculation methods for bevel and hypoid gears.
AGMA 2005: Design manual for bevel gears.
ISO 6336: Calculation of load capacity of spur and helical gears (often adapted for bevel gears).
SAE J661: Hypoid and spiral bevel gear nomenclature.
DIN 3965/3967: Tolerances for bevel gears (European standard).
OEM Specific Standards: Ford WSS, GM W, Toyota TSM, etc., which often exceed general industry standards.
