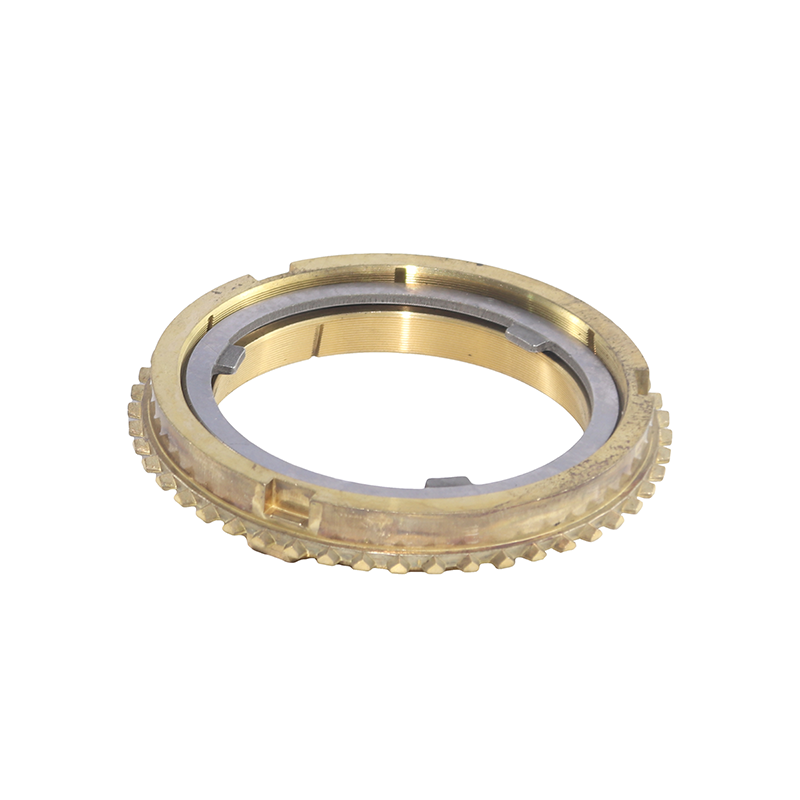

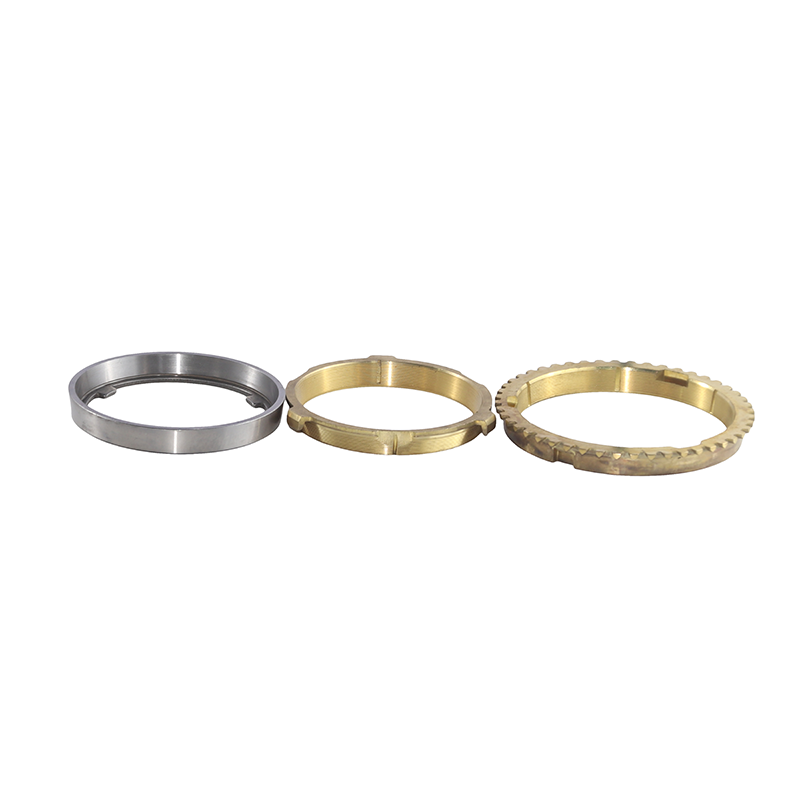

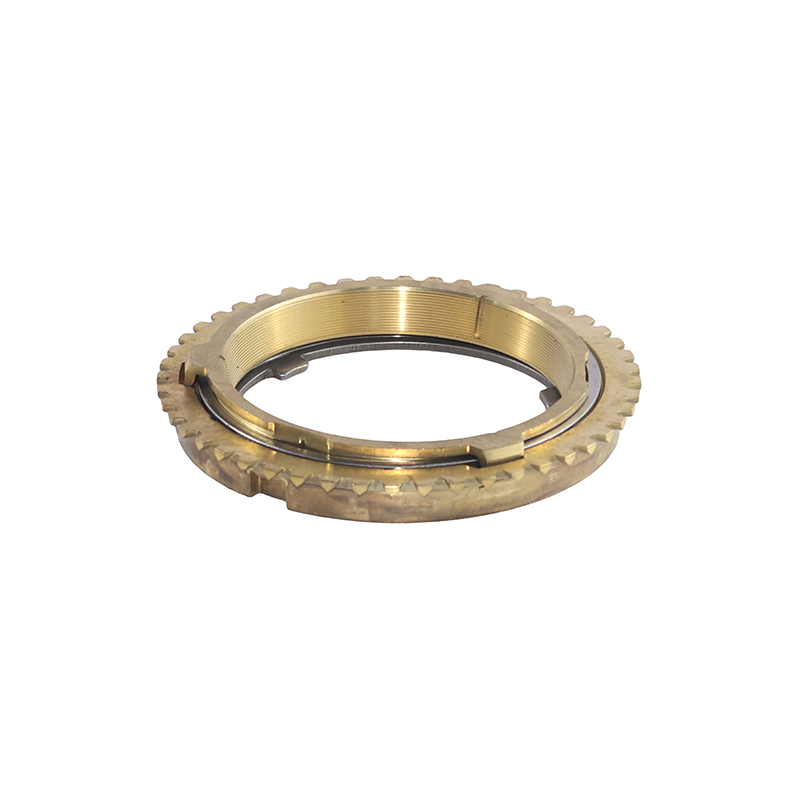

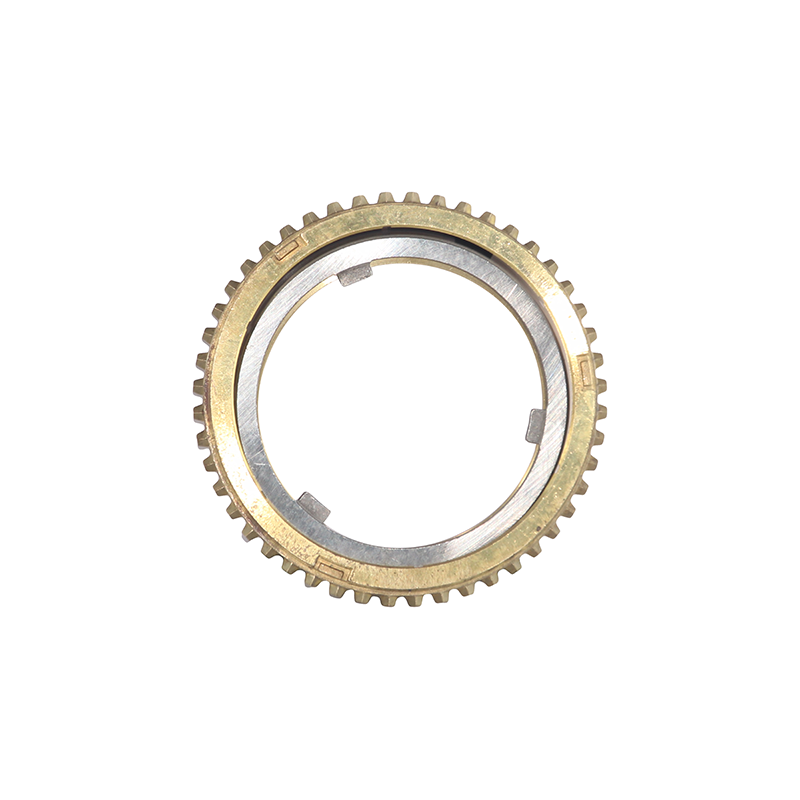

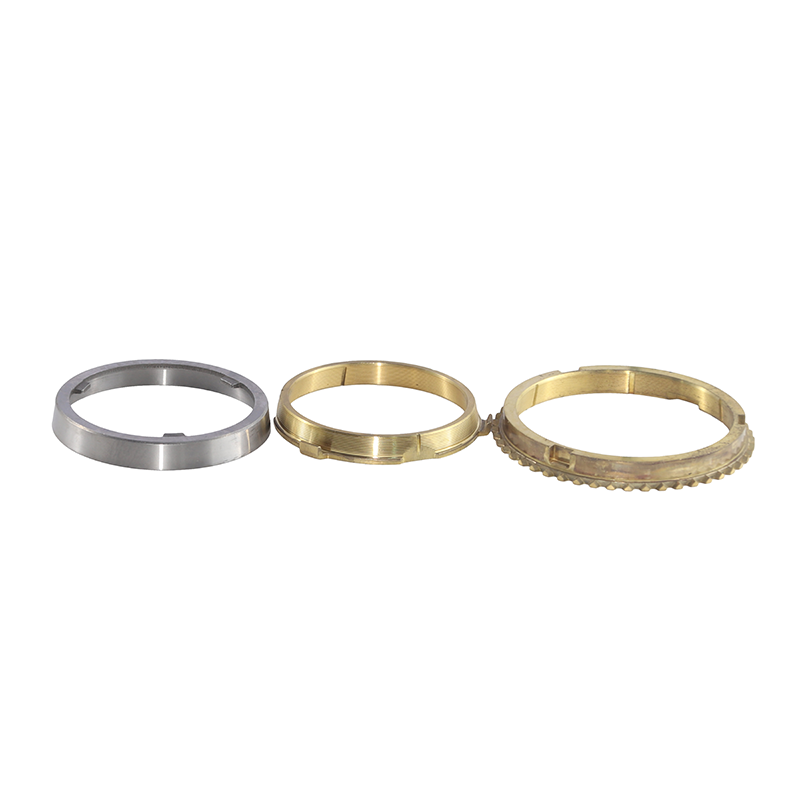

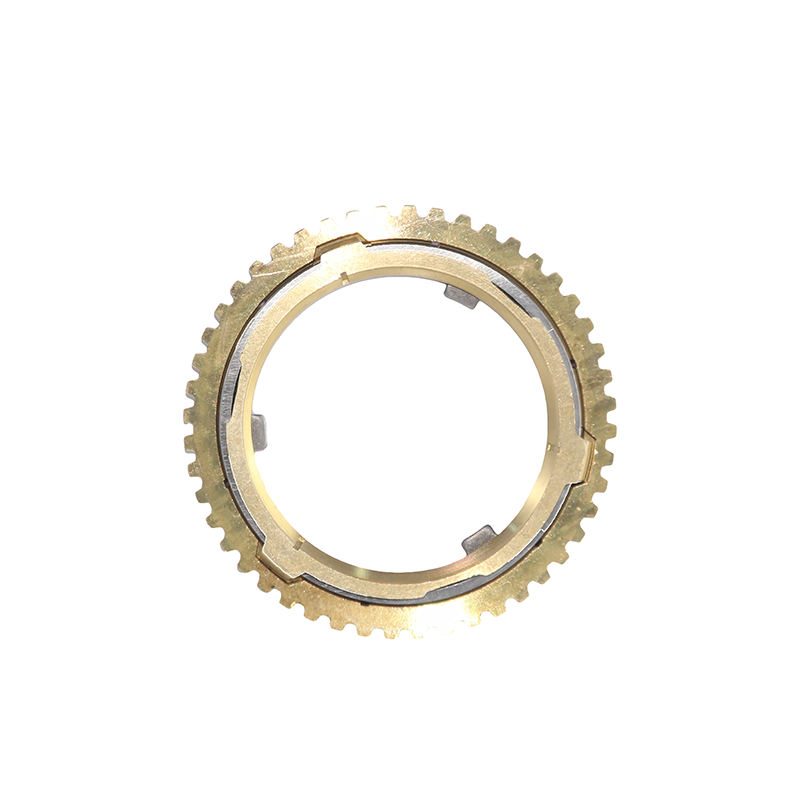

48T 2nd Synchronizer Ring

• OE-Grade Fit & Compatibility: Manufactured strictly according to original vehicle dimensions and specifications, ensuring perfect replacement of original synchronizer ring parts without modifications. Compatible with major Japanese and Korean vehicle models, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, and more.

• 12-Month Quality Guarantee: Backed by a 12-month quality warranty from the date of customer receipt, providing peace of mind and assurance of long-term reliability. Our after-sales support ensures prompt resolution of any product-related issues.

• Flexible Order Options: Accepts small-batch orders (retail orders excluded), catering to the needs of repair shops, auto parts distributors, and manufacturing partners. We offer flexible MOQs to support your business operations.

• Model-Specific Focus: Specialized in Japanese and Korean vehicle models, with a deep understanding of their transmission systems. Our synchronizer rings are tailored to match the unique requirements of these vehicles for optimal performance.

• Customizable Packaging: Offers customizable packaging solutions to meet your branding needs, including logo printing, product labeling, and packaging design, helping you enhance brand recognition and customer trust.

The 48T 2nd Synchronizer Ring is widely applied in manual transmissions of modern passenger cars—its most common application field. Almost all forward gears (1st–6th) in passenger car manual transmissions rely on synchronizer rings to eliminate speed differences and prevent gear grinding, especially during frequent shifting while driving.

1. Scenario Breakdown

• Low Gears (1st, 2nd, Reverse): These gears experience the largest speed differentials during starting and low-speed driving, with high shifting frequency. As a result, the 48T 2nd Synchronizer Ring (used in 2nd gear) endures high frictional heat and wear. It adopts advanced double-cone or triple-cone designs to increase friction surface area and synchronization capacity, ensuring reliable performance even under harsh conditions.

• High Gears (5th, 6th): Speed differences are relatively smaller in high gears, so single-cone synchronizer rings are usually sufficient. However, our 48T 2nd Synchronizer Ring (optimized for 2nd gear) maintains consistent quality to complement the overall transmission system, reducing costs and saving space without compromising performance.

• Material Trends: We adapt to industry trends by shifting from traditional brass/bronze to high-performance sintered metal (iron-based) and carbon-fiber composites, enhancing heat resistance and wear durability to accommodate shorter shift times and more demanding driving conditions.

2. Light & Medium Commercial Vehicles

This synchronizer ring is also suitable for light and medium commercial vehicles, including pickup trucks, light-duty trucks, and vans, which require robust performance to handle heavy loads and frequent use.

Application Logic:

• Heavy-Load Starting: Commercial vehicles often operate with full loads, meaning the inertial mass for 1st and 2nd gears is significant. The 48T 2nd Synchronizer Ring is engineered to overcome large rotational inertia differences, ensuring smooth starting even under heavy loads.

• Frequent Start-Stop: Urban logistics vehicles and delivery vans start and stop constantly, leading to extremely high working frequencies for synchronizer rings. Our 48T 2nd Synchronizer Ring is designed for high durability to withstand rapid wear in these scenarios.

Special Requirements:

• Durability First: Compared to shift speed, lifespan and reliability are prioritized for commercial vehicles. Our 48T 2nd Synchronizer Ring uses thickened sintered metal, offering excellent wear resistance (slightly lower friction coefficient than carbon fiber but more cost-effective and durable).

• Contamination Resistance: Designed to maintain functionality even if the transmission lubricant is slightly contaminated, adapting to the harsh operating conditions of commercial vehicles.

3. Heavy-Duty Trucks & Buses (Specific Cases)

While traditional heavy-duty trucks (e.g., long-haul tractors) often use non-synchronized transmissions or AMTs (Automated Manual Transmissions), the 48T 2nd Synchronizer Ring is still applied in specific heavy-duty scenarios:

• City Buses: Due to frequent starting and low-gear shifting, modern manual or AMT transmissions in city buses often equip heavy-duty synchronizer rings in lower gears (including 2nd gear), where the 48T 2nd Synchronizer Ring provides reliable performance.

• Medium-Duty Trucks / Engineering Vehicles: Certain engineering vehicles (e.g., dump trucks operating within construction sites) that do not require extreme heavy hauling but need frequent shifting may be equipped with reinforced synchronizers, including our 48T 2nd Synchronizer Ring.

• Auxiliary Transmissions: In some heavy-duty transmissions with sub-gearboxes (Range/Splitter), the sub-box shifting may utilize synchronizer ring structures, and the 48T 2nd Synchronizer Ring can be customized to meet these specific requirements (many sub-boxes still use pneumatic locking mechanisms, but our product is compatible with applicable models).

• Characteristics for Heavy-Duty Use: When applied in heavy-duty scenarios, the 48T 2nd Synchronizer Ring features a larger size, is made of high-strength sintered steel, and has specially treated friction surfaces to withstand inertial impacts of several tons.

Core Product Specifications

• Cone Angle: Standard range of 6° – 9°, with 7° or 8° being the most common. Note: A smaller cone angle generates higher friction torque (self-energizing effect) but increases synchronization time and risks "self-locking"; a larger angle allows faster synchronization but requires greater axial shift force. Our 48T 2nd Synchronizer Ring is optimized to balance these factors for optimal performance.

• Effective Friction Radius: Defined as the effective radius of the friction cone surface, which directly determines the magnitude of the synchronization torque. For single-cone designs, the radius typically ranges from 10 – 25 mm; for multi-cone designs, individual cone widths are narrower, but the total effective friction area is multiplied (enhancing synchronization efficiency).

• Key/Groove Quantity: Typically 3 (evenly distributed); heavy-duty designs may use 4–6 to ensure stable operation and load distribution.

• Tolerance Control: The clearance between the synchronizer ring and shift fork struts/keys is strictly controlled within 0.05 – 0.15 mm. This ensures smooth rotation during the pre-synchronization phase and precise locking during gear engagement, preventing malfunctions and extending service life.

• Tooth End Chamfers: Critical locking surfaces feature precision chamfering to prevent scoring of the engaging sleeve and avoid stress concentrations, which can lead to premature wear or failure. Our 48T 2nd Synchronizer Ring undergoes strict quality control to ensure chamfer accuracy.

Additional Notes

• This product is a 2nd gear synchronizer ring with 48 teeth (48T), designed for specific Japanese and Korean vehicle models—please confirm your vehicle model or original part number before ordering to ensure compatibility.

• Recommended lubricants: Use transmission fluids that meet OE specifications to maximize the synchronizer ring’s service life and performance.

• Installation: Professional installation is recommended to ensure proper fit and function; incorrect installation may cause gear clash or premature wear.

• Storage: Store in a dry, clean environment to avoid rust or contamination, which can affect product performance.

When it comes to selecting a high-quality 2nd synchronizer ring for your transmission system, our 48T 2nd Synchronizer Ring stands out from the competition for the following reasons:

• OE-Grade Quality & Precision: We adhere to strict manufacturing standards, using premium materials and advanced production techniques to ensure each synchronizer ring meets or exceeds OE specifications. Our product undergoes rigorous testing (including friction coefficient, wear resistance, and dimensional accuracy) to guarantee reliable performance.

• Model-Specific Expertise: Specializing in Japanese and Korean vehicle models, we have in-depth knowledge of their transmission systems, ensuring our 48T 2nd Synchronizer Ring is perfectly compatible with Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, and other major brands. This eliminates the risk of mismatched parts and ensures seamless replacement.

• Flexible & Customer-Centric Service: We accept small-batch orders (excluding retail) to support your business needs, and offer customizable packaging to enhance your brand. Our 12-month quality guarantee and responsive after-sales support provide you with peace of mind, knowing you’re backed by a reliable partner.

• Durability & Cost-Effectiveness: Our synchronizer rings are designed for long service life, reducing maintenance costs and downtime for your customers. We use cost-effective, high-performance materials (sintered metal, carbon-fiber composites) to balance quality and affordability, giving you a competitive edge in the market.

• Industry Compliance & Innovation: We stay updated with the latest industry trends, adopting advanced materials and designs to improve heat resistance, wear durability, and synchronization efficiency. Our product is compliant with global auto parts standards, making it suitable for international markets.

Choose our 48T 2nd Synchronizer Ring for reliable performance, perfect compatibility, and exceptional value—your trusted partner for transmission components.
