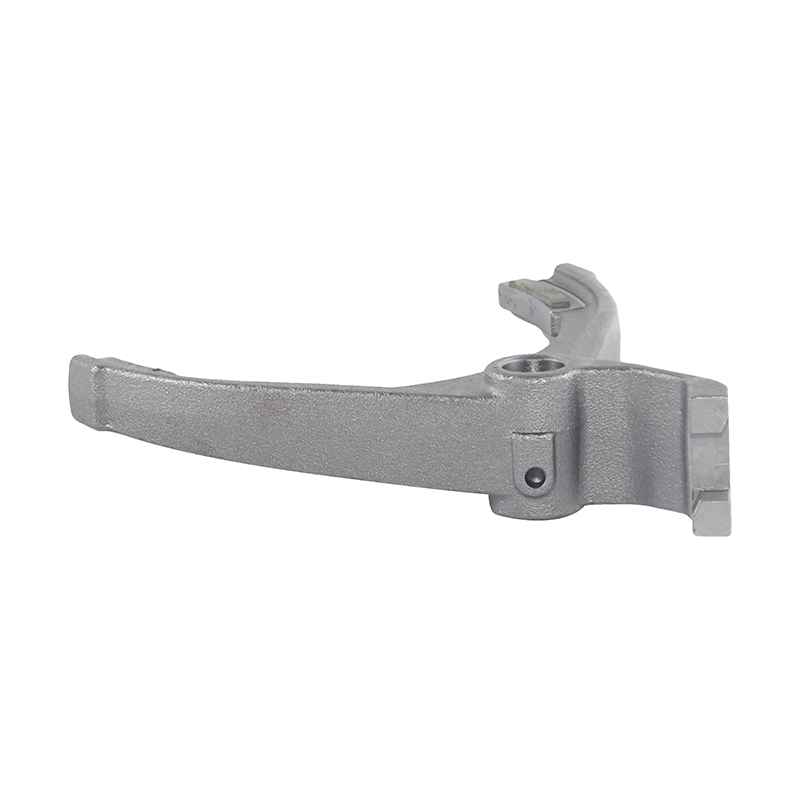

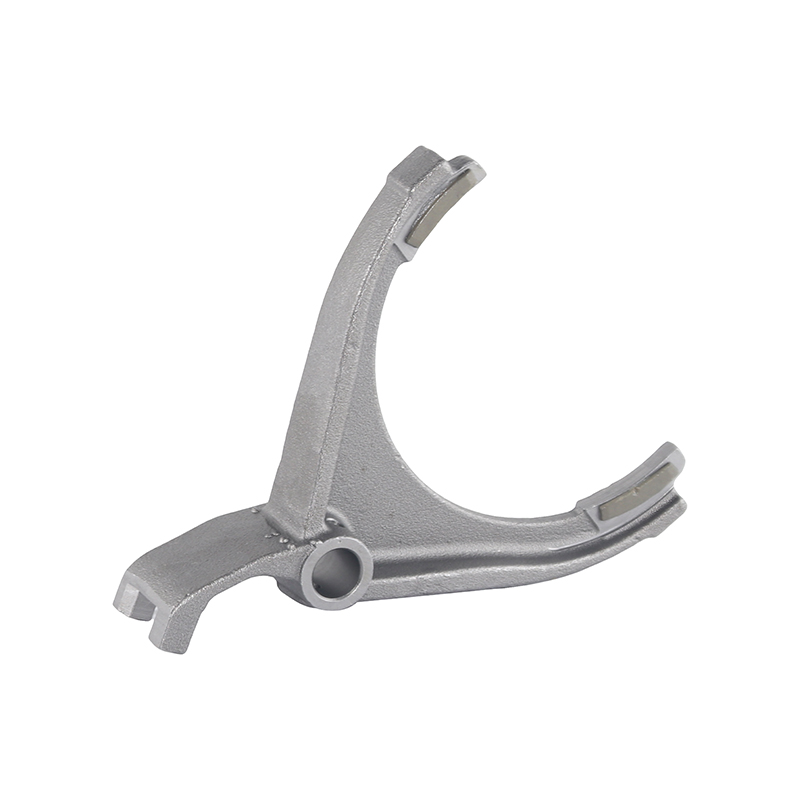

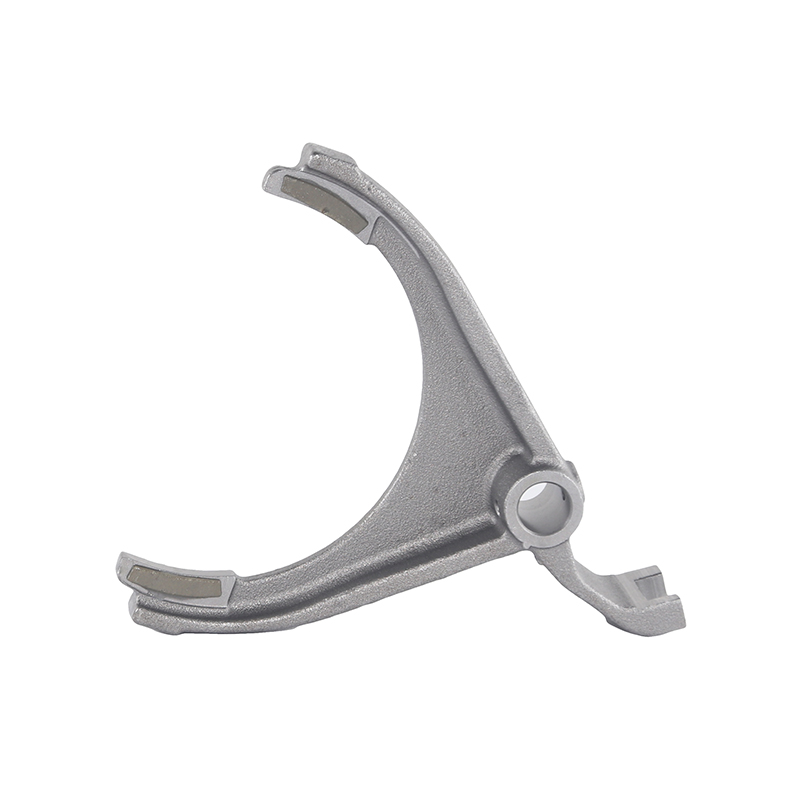

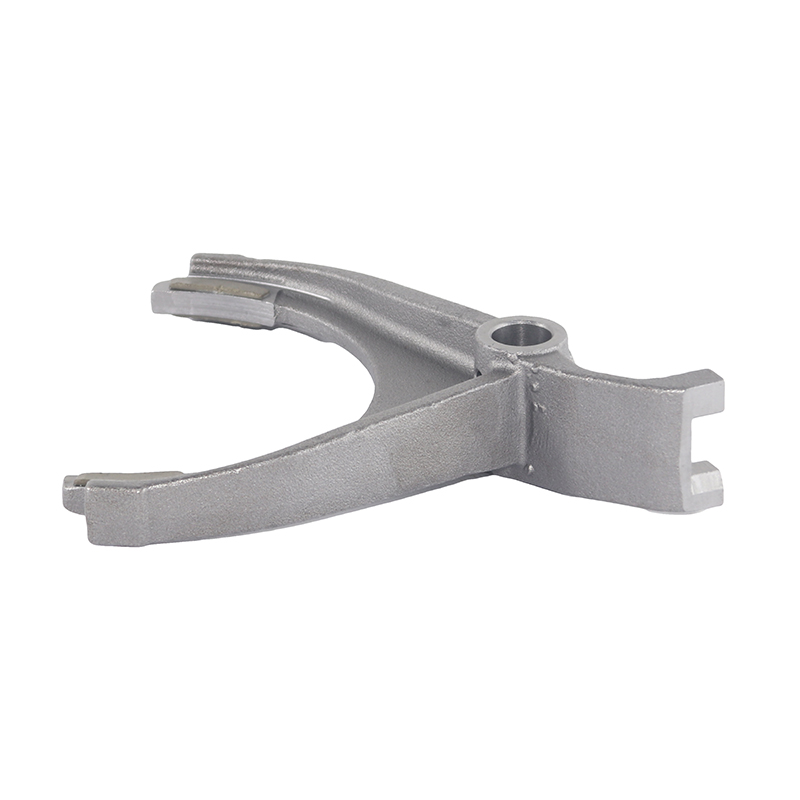

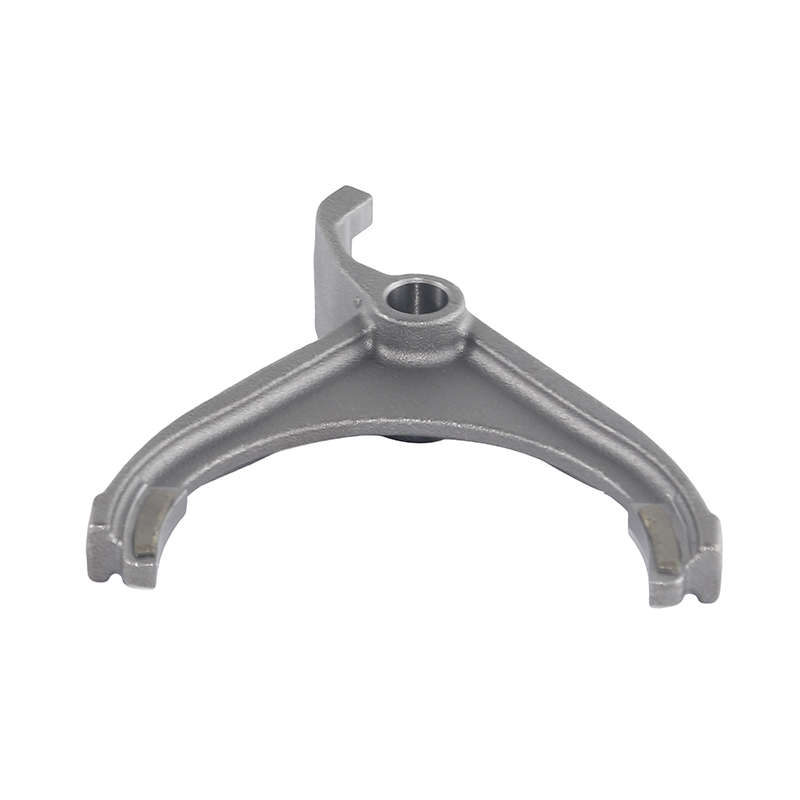

Shifting Fork

1. Manufactured according to the original vehicle dimensions, enabling perfect replacement of original parts.

2. 12-month quality guarantee service from the date of customer receipt.

3. Small-batch orders are acceptable (retail orders excluded).

4. Focusing on Japanese and Korean models, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, etc.

5. Customizable packaging

Material Specifications

• Low-Carbon Alloy Steel: SAE 8620 (20CrMnTi), SAE 4120. Suitable for carburizing; offers a tough core and hard surface.

• Medium-Carbon Structural Steel: SAE 1045 (45#), SAE 4140. Suitable for induction hardening; lower cost, used for light-duty or commercial applications.

• High-Strength Aluminum Alloy: 7075-T6, 6061-T6. Reserved for racing or ultra-lightweight designs (requires hard anodizing or coatings).

• Powder Metallurgy (PM): Iron-based PM. Ideal for high-volume, complex shapes, and low-cost passenger car applications; can be oil-impregnated for self-lubrication.

Heat Treatment & Surface Finish

Carburizing & Hardening

• Application: Alloy steel forks.

• Surface Hardness: 58 – 64 HRC (contact surfaces and fork fingers).

• Core Hardness: 30 – 45 HRC (ensures impact toughness).

• Effective Case Depth (ECD): 0.6 mm – 1.2 mm (depends on module and load).

Induction Hardening:

• Application: Medium-carbon steel forks.

• Hardness: 50 – 58 HRC (limited to contact areas).

• Characteristics: Minimal distortion, high efficiency, but shallower case depth.

Surface Treatments:

• Phosphating: Black or gray phosphate coating to improve initial break-in performance and rust resistance.

In the highly competitive automotive after-sales market, the core competitiveness of our shift lever lies in the combination of professionalization and flexibility: we focus on the segmented track of Japanese and Korean vehicle models, and achieve higher product matching accuracy through in-depth research on the characteristics of the brand's transmission system; at the same time, we break the limitation of large minimum order quantity of traditional auto parts manufacturers, support small-batch orders, and provide customizable packaging and perfect warranty service.

Whether you are a repair shop pursuing installation efficiency, a distributor focusing on market demand, or a modification workshop paying attention to product quality, our shift lever can meet your personalized needs with OEM-level quality, flexible procurement terms and targeted after-sales support. We are committed to becoming the most reliable supplier of shift levers for Japanese and Korean vehicle models in the automotive aftermarket!
