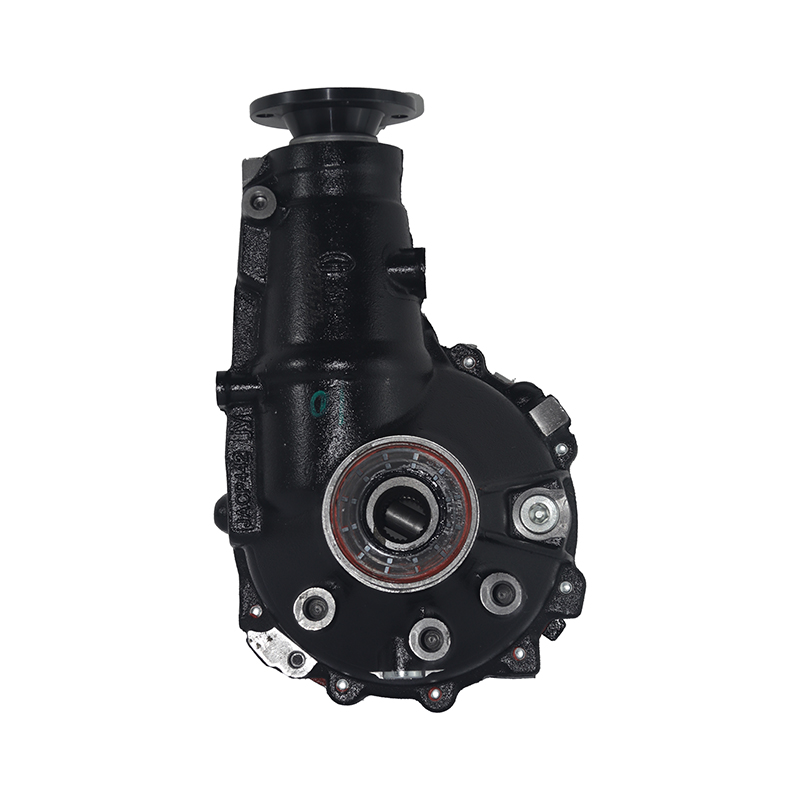

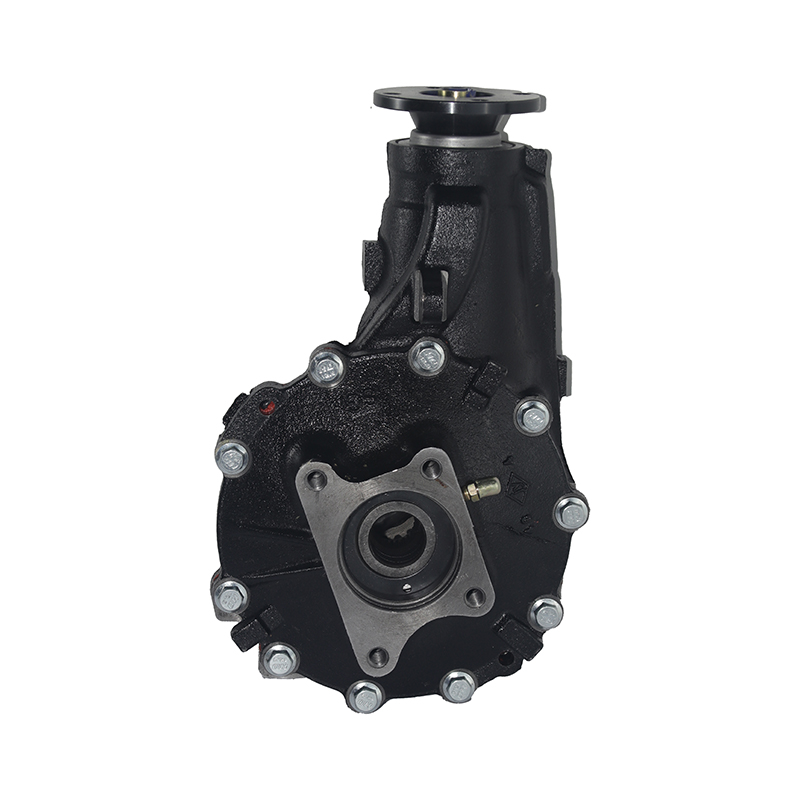

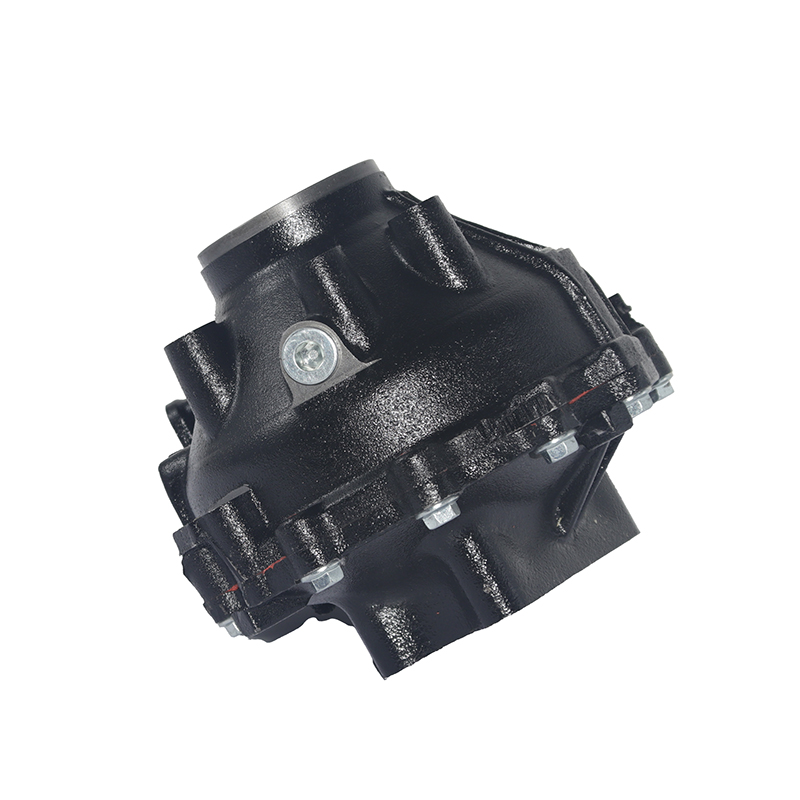

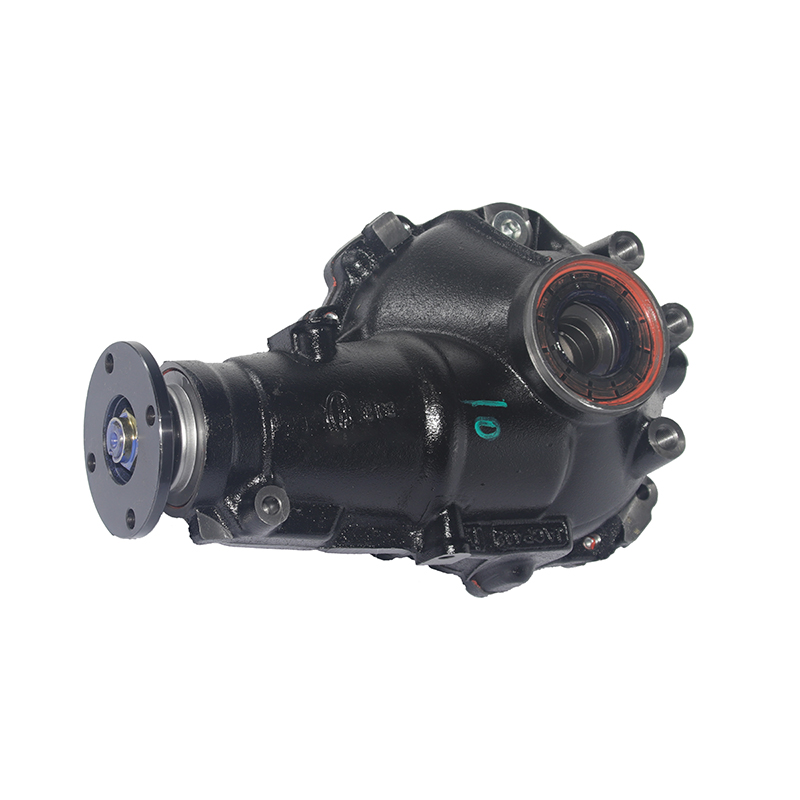

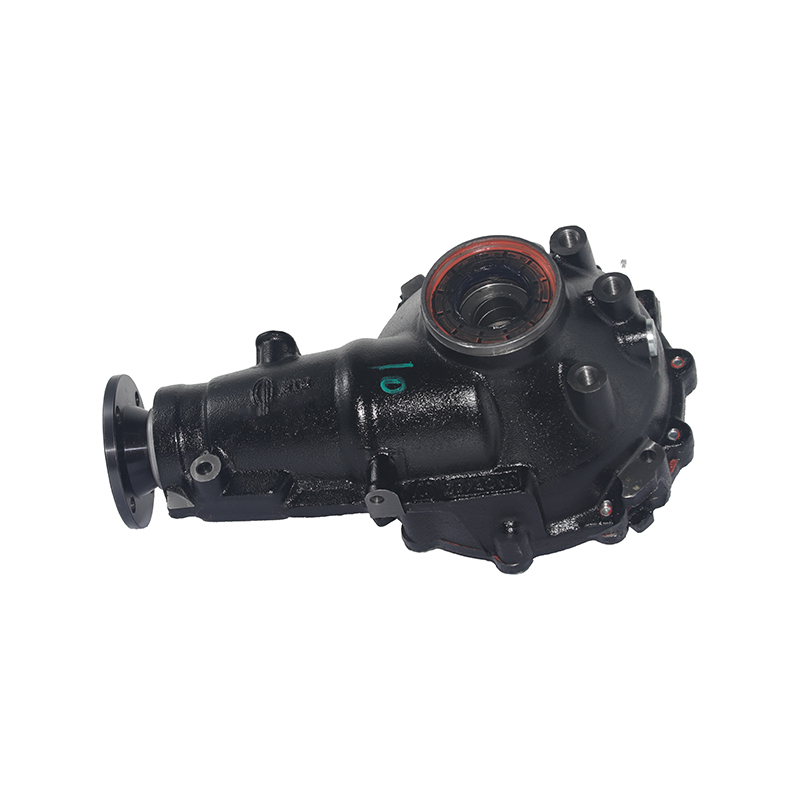

Differential

1. Manufactured according to the original vehicle dimensions, enabling perfect replacement of original parts.

2. 12-month quality guarantee service from the date of customer receipt.

3. Small-batch orders are acceptable (retail orders excluded).

4. Focusing on differentials for Japanese and Korean models, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, etc.

5. Differential are generally packaged in plywood wooden cases. Customer logos can be printed on both the products and the wooden cases.

6. Since plywood wooden cases are relatively prone to damage, the differentials are usually required to be shipped on pallets.

1. Urban Road Driving: When navigating city intersections, roundabouts, or narrow streets, the differential adjusts wheel speeds during frequent turns. It prevents tire scuffing and drivetrain strain, ensuring smooth, energy-efficient commuting for daily use.

2. Off-Road Exploration: In mud, sand, gravel, or mountain trails, 4x4 pickups rely on limited-slip/locking differentials. They distribute torque to gripping wheels, avoiding slip and maintaining traction, enabling safe passage through uneven, low-adhesion terrains.

3. Heavy-Duty Hauling/Towing: When carrying cargo or pulling trailers, the differential handles increased torque loads. It evenly transmits power to drive wheels, ensuring stable acceleration and deceleration, preventing component overheating and safeguarding driving safety.

4. Highway Cruising & Overtaking: At high speeds, the differential maintains consistent wheel rotation for stable straight-line driving. During overtaking (quick acceleration), it balances power distribution, enhancing responsiveness and ensuring smooth speed transitions.

5. Rural/Suburban Terrain: On dirt roads, farm lanes, or hilly paths with frequent turns and slight unevenness, the differential adapts to varying wheel travel distances. It reduces tire wear and improves maneuverability, suiting rural work or suburban leisure drives.

Specifications vary significantly across vehicle types (sedans, SUVs, commercial vehicles). The following are general technical parameter ranges and examples:

1. Mechanical Performance Parameters

Maximum Input Torque:

• Compact Sedans: Approx. 200 – 350 N·m

• Mid-to-Large Sedans/SUVs: Approx. 350 – 600+ N·m

• Heavy-Duty Commercial Vehicles: Can reach 1000 – 3000+ N·m

• Final Drive Ratio: Typically between 3.0 and 5.0 (e.g., 3.73, 4.10), depending on engine characteristics and tire size.

• Gear Material: Usually high-strength alloy steel (e.g., 20CrMnTi, 20CrMo), carburized and quenched. Surface hardness typically reaches HRC 58-62.

• Gear Precision: Micron-level meshing precision to ensure low noise and high efficiency.

2. Key Performance Indicators (For LSD/Performance Differentials)

Locking Factor (Bias Ratio):

• Standard Open: Close to 1.0 (No limited-slip capability).

• Mild LSD: 1.5 – 2.0 (e.g., standard family sedans).

• Heavy LSD/Off-Road: 2.5 – 4.0+ (e.g., Porsche, hardcore off-roaders).

Slip Rate Control:

• Split-Mu Surface Slip Rate: Excellent products can control this within 2.5% (reflecting stability on surfaces where one side is wet/slippery).

• Full-Slip Surface Slip Rate: Excellent products can control this around 1.5% – 2.0% (reflecting stability on ice/snow).

• Response Time: Torque distribution response time for electronic or mechanical LSDs is typically under 0.1 seconds to ensure dynamic handling.

3. Physical Specifications Example (Mid-size Vehicle)

• Weight: Assembly weight typically ranges from 15kg to 40kg (Commercial vehicle rear axle differentials can exceed 40kg).

• Lubricant Capacity: Approx. 1.0 – 2.5 liters; requires specialized GL-5 grade gear oil.

• Bearing Preload: Must be precisely adjusted; axial play is typically within the 0.05 – 0.15 mm range.

Common Failure Symptoms

• Oil Leaks: Caused by aging seals. Must be replaced promptly to prevent gear damage due to lack of lubrication.

• Vibration/Shudder: Often caused by driveshaft imbalance or severe internal gear wear.

• Binding/Sticking: Friction plates in an LSD may seize, making turning difficult and causing "wheel hop" or skipping.

In the highly competitive automotive after-sales market, the core competitiveness of our shift lever lies in the combination of professionalization and flexibility: we focus on the segmented track of Japanese and Korean vehicle models, and achieve higher product matching accuracy through in-depth research on the characteristics of the brand's transmission system; at the same time, we break the limitation of large minimum order quantity of traditional auto parts manufacturers, support small-batch orders, and provide customizable packaging and perfect warranty service.

Whether you are a repair shop pursuing installation efficiency, a distributor focusing on market demand, or a modification workshop paying attention to product quality, our shift lever can meet your personalized needs with OEM-level quality, flexible procurement terms and targeted after-sales support. We are committed to becoming the most reliable supplier of shift levers for Japanese and Korean vehicle models in the automotive aftermarket!
