What Is a Differential in a Car? Complete Beginner’s Guide

A Hot Wheels car with a solid rear axle runs well in a straight line, then fights the track in every corner. A real vehicle faces the same problem. In a turn, the outside drive wheel travels farther than the inside drive wheel, so both wheels cannot rotate at the same speed without slipping. That is why a Car Differential exists. It lets both driven wheels receive engine torque while allowing different wheel speeds.

This matters far beyond basic mechanics. The differential affects cornering behavior, traction on wet or loose surfaces, tire wear, off-road ability, and repair cost. It also determines how a vehicle behaves when one wheel loses grip. This guide explains what a differential is, where it sits in different drivetrains, how a complete gearset works, what the main internal parts do, how common differential types differ, and which warning signs suggest inspection should not be delayed.

Key Takeaways

• Simple Definition: A differential is the drivetrain component that lets two driven wheels rotate at different speeds while still receiving engine torque.

• The Three Core Jobs: A differential assembly changes power direction, provides final gear reduction, and manages wheel-speed difference on the driven axle.

• Why One Wheel Spins on Ice: An open differential can only send as much usable torque as the wheel with the least grip can support, so wheel speed and power are effectively wasted at the slipping side.

• Upgrades Have Trade-offs: Moving from an open differential to an LSD, locker, or torque-vectoring setup can improve traction, but may add noise, maintenance, setup complexity, axle stress, and warranty risk.

• Red-Flag Symptoms: Whining, clunking, gear-oil leaks, strong sulfur smell, cornering shudder, or actuator faults can point to differential parts wearing out and justify immediate inspection.

What Is a Differential in a Car?

A Differential is a gearset that splits power between two driven wheels while allowing those wheels to rotate at different speeds. That difference in wheel speed is necessary in every corner. The outside wheel follows a longer path, so it must turn faster. Without the differential, the tires would scrub, steering would resist, and the driveline would store twisting stress.

Where the Differential Is Located

• FWD: The differential is usually built into the transaxle, alongside the transmission gears.

• RWD: The differential normally sits in the rear axle assembly.

• AWD: Most layouts use front and rear axle differentials, plus a center differential or clutch-type center coupling.

• 4WD: These systems usually use front and rear axle differentials plus a transfer case. Many part-time systems do not have a true center differential.

How Many Differentials a Vehicle Has

Most front-wheel-drive and rear-wheel-drive vehicles use one differential. All-wheel-drive and four-wheel-drive vehicles often use two or three, depending on how front-to-rear torque is managed. A crossover with a clutch-based rear drive unit may not use the same layout as a full-time mechanical AWD system, even if both are marketed as AWD.

Common Beginner Confusion

Non-driven wheels do not need a differential because each wheel already spins independently on its own bearing set. The differential is required only where one power source must drive two wheels on the same axle while still allowing speed difference in turns.

Why the Car Differential Is Necessary

The differential solves three separate problems at once. It changes the direction of power flow, reduces rotational speed through the final-drive ratio, and allows the left and right drive wheels to rotate at different speeds. Removing any one of those functions changes how the entire driveline behaves.

Straight-Line Driving Versus Turning

In straight driving, both drive wheels usually rotate at nearly the same speed. The spider gears mostly revolve with the carrier and see little relative motion. During a turn, the outside wheel must speed up while the inside wheel slows down. The spider gears then rotate on their pin, which allows that left-right speed difference without disconnecting either wheel from engine torque.

What Happens Without a Differential

• Tires scrub and chirp during low-speed turns.

• The vehicle may hop or skip in parking maneuvers.

• Steering effort rises because the tires resist the path they are being asked to follow.

• Axle shafts, bearings, and gears absorb binding loads.

• Repeated driveline wind-up can shorten component life.

The Three Jobs of a Differential

• Directional shift: The pinion turns the ring gear, redirecting power toward the axle shafts.

• Final-drive reduction: The ring-and-pinion ratio multiplies torque and reduces output speed.

• Speed differentiation: The left and right wheels can rotate at different speeds while both stay connected to engine power.

How a Differential Works: Power Flow and Core Math

The easiest way to understand a differential is to follow power from the transmission to the tires. Each part of the assembly changes that power only slightly, but the combined result makes normal turning possible.

Power Flow Through the Differential Assembly

• Driveshaft or transaxle output shaft delivers rotation.

• Pinion gear receives that rotation.

• Pinion gear drives the ring gear.

• Ring gear turns the carrier.

• Spider gears inside the carrier interact with side gears.

• Side gears turn the splined axle shafts.

• Axle shafts turn the driven wheels.

The Differential Case Explained

The differential case, also called the carrier, is the rotating inner structure that holds the spider gears, side gears, and cross-pin. It is not the same part as the outer axle housing. The housing supports bearings and contains lubricant. The case rotates inside that housing. The ring gear bolts to the case, so when the ring gear turns, the whole internal differential gearset turns with it.

The Average-Speed Rule

In a standard open differential, the carrier speed equals the average of the left and right wheel speeds. Written simply:

ωcarrier = (ωleft + ωright) / 2

If the carrier rotates at 100 rpm and the inside wheel slows to 80 rpm in a turn, the outside wheel will rise to 120 rpm. If one wheel loses almost all resistance, that wheel can spin much faster while the opposite wheel barely moves.

Wheel Speed Is Not the Same as Wheel Torque

Different wheel speeds do not automatically mean different delivered torque in an open differential. The available axle torque is balanced across both side gears, but usable drive force is limited by the wheel with less grip. That is why one wheel can spin on ice while the wheel on dry pavement does little work. The system is not choosing to waste power. It is constrained by the low-traction side.

A Simple Cornering Example

Consider a vehicle turning through a tight intersection. The outside rear tire follows a wider arc than the inside rear tire, so it must rotate faster. A locked axle would force both wheels to rotate equally, which would drag one tire across the road. The differential prevents that drag. It does not create extra traction by itself; it only allows the required speed difference while keeping both wheels connected.

Anatomy of a Car Differential: Key Parts and Their Roles

A differential looks simple from outside the axle housing, but it contains several highly loaded parts. Each one affects durability, noise, and service cost.

Main Differential Parts

• Pinion gear: Receives rotation from the driveshaft or transmission output.

• Ring gear: Large gear that the pinion drives.

• Carrier or case: Holds the internal gears and rotates with the ring gear.

• Spider gears: Small gears that allow left-right speed difference.

• Side gears: Splined gears connected to the axle shafts.

• Cross-pin or pinion shaft: Shaft on which the spider gears rotate.

• Carrier bearings: Support the rotating case.

• Pinion bearings: Support the pinion gear under heavy thrust loads.

• Axle shafts: Transfer power from the side gears to the wheels.

• Seals and gaskets: Keep gear oil in and dirt or water out.

• Housing: Structural casing that supports the assembly and holds fluid.

Differential Case Versus Housing

The rotating case carries the internal gears. The outer housing does not rotate. That distinction matters when diagnosing leaks, buying replacement parts, or comparing rebuild kits with complete assemblies. A worn case may require internal replacement, while a cracked housing may push the repair toward full assembly replacement.

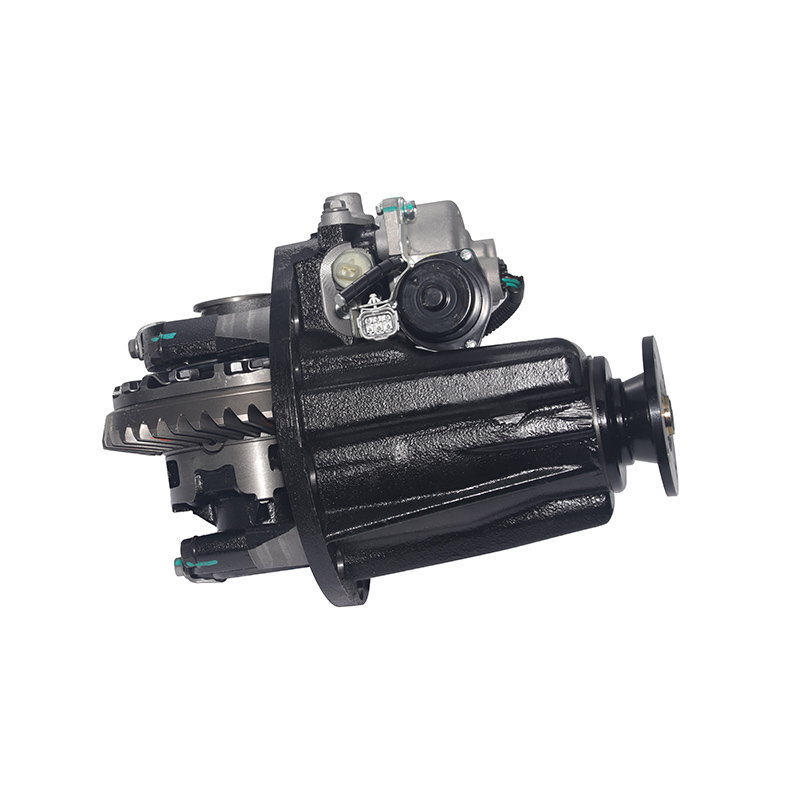

What a Complete Differential Assembly May Include

OEM and aftermarket listings do not always contain the same parts. A full assembly may include:

• Housing or carrier assembly

• Ring and pinion gears

• Spider and side gears

• Bearings and races

• Seals and gaskets

• Axle stubs or flanges

• Locker hardware or sensor provisions on some models

Replacing a single bearing or gear is different from replacing a full assembly. A complete unit often saves setup time, reduces labor uncertainty, and lowers the risk of assembly error when the original housing or case is damaged.

What a Differential Gear Kit Can Mean

The phrase does not have one universal definition. Some sellers use it for a ring-and-pinion set only. Others use it for spider and side gears. Many also sell master install kits that include bearings, shims, seals, a crush sleeve, and marking compound. Kit contents should always be verified before ordering because the same phrase can describe very different packages.

Transaxle Integration in Front-Wheel Drive Vehicles

In a front-wheel-drive layout, the transmission and differential are usually packaged together in a transaxle. That saves space and weight, but it also means some repairs involve transmission removal even when the failure is limited to the differential section. It also means gear oil and internal lubrication requirements can differ from a traditional rear axle.

Types of Car Differential Compared

Open Differential

The open differential is the standard design on many road vehicles. It is simple, predictable, and durable. It handles normal cornering well and works quietly. Its weakness appears when one wheel loses grip. Because usable torque is limited by the low-traction wheel, propulsion can drop sharply even though the other wheel still has traction.

Limited-Slip Differential

A limited-slip differential, or LSD, reduces excessive left-right speed difference so more torque can reach the wheel with better grip. Several common designs exist.

• Mechanical clutch LSD: Uses clutch packs and preload mechanisms. It can improve launches and corner exits, but the clutches wear and fluid choice matters.

• Viscous LSD: Uses silicone fluid in a sealed coupling. Engagement is smooth, though reaction speed can drop as heat rises or the unit ages.

• Torsen or helical LSD: Uses worm or helical gears to bias torque mechanically. It feels smooth and has no clutch packs, but it still needs some resistance at both wheels.

• Active or electronic LSD: Uses sensors and a controlled clutch pack to vary lockup. It appears in premium AWD and performance systems.

Some vehicles simulate limited-slip behavior only with brake intervention. That system can work well in moderate conditions, but it is not the same as a true internal LSD mechanism.

Locking Differential

A locking differential forces both axle shafts to rotate together. That means one wheel cannot spin away all the available drive force when the other wheel still has grip. It is highly effective when a tire is unloaded, hanging in the air, or on mud, sand, or rock.

Selectable lockers are engaged by the driver. Automatic lockers react to internal load conditions. The engagement method may involve a pneumatic, electronic, electromagnetic, or cable-based Differential Actuator. On dry pavement, locked operation can cause hopping, tire scrub, clicking, or understeer, so the system must match the intended use.

Torque-Vectoring Differential

Torque vectoring is designed to improve handling, not just traction. Brake-based systems use the ABS hardware to slow an inside wheel and encourage rotation. Mechanical or clutch-based systems can actively send more torque to the outside wheel in a turn. That can reduce understeer and help the vehicle change direction more eagerly. The trade-off is cost, heat, extra calibration, and added system complexity.

Open Differential and Modern Electronic Aids

Modern stability and traction systems have changed how open differentials feel in everyday driving. The hardware may remain basic, but the control software can improve real-world traction.

How ESC and TCS Help

• Wheel-speed sensors detect slip quickly.

• The control unit can reduce engine torque.

• It can also apply brake pressure to the spinning wheel.

• That added resistance helps route usable torque to the wheel with better grip.

Why Newer Vehicles Feel Better Than Older Ones

An older open differential often left the low-traction wheel spinning with little intervention. A newer vehicle may brake that wheel almost immediately. The result is not the same as a mechanical LSD, but it can mask some limitations during normal road driving and light winter use.

When Brake-Based Aids Reach Their Limit

Brake intervention creates heat and consumes brake capacity. In deep snow, sand, mud, or repeated low-speed off-road climbs, the system may overheat or cut engine torque too aggressively. That is why a true LSD or locker still outperforms brake simulation in severe conditions.

AWD vs. 4WD: Center Differential, Transfer Case, and Binding Risk

Many owners confuse axle differentials with center differentials and transfer cases. They solve different problems.

Why AWD Often Needs a Center Differential

Front and rear axles follow different paths in a turn, so they also need some speed difference. A center differential or controlled center coupling manages that difference. Common designs include open, viscous, helical, and electronically controlled clutch systems.

Traditional 4WD Transfer Cases

Many part-time 4WD systems do not use a true center differential in 4HI or 4LO. Instead, they rigidly couple the front and rear axles. That works well on loose surfaces, where the tires can slip slightly and release driveline stress.

Binding on Dry Pavement

On dry pavement, front and rear axles cannot follow the same path in a turn. If the system locks them together with no center differential action, torsional wind-up builds through the driveline. The result can be steering resistance, tire scrub, popping, and damage to U-joints, axle shafts, the transfer case, or other driveline components.

4WD Auto Mode Is Not the Same as Locked 4HI

Some systems include an automatic mode that uses a clutch pack to allow controlled front-rear slip on pavement. That is different from a locked part-time mode intended only for low-traction surfaces. A center differential lock also differs from an axle locker. One controls front-to-rear speed difference; the other controls left-to-right speed difference on one axle.

EV and Hybrid Exception

Some electric and hybrid AWD systems use separate front and rear motors. Those layouts may not rely on a traditional mechanical center differential at all. Torque distribution is managed electronically at the motor level, though axle differentials can still exist depending on the platform.

Scenario-Based Selection: Choosing the Right Differential

The best differential is not universal. It depends on road surface, power level, tire grip, expected maintenance, and noise tolerance.

Decision Factors

• Climate and seasonal road conditions

• Vehicle power and tire grip

• Tolerance for noise, vibration, and low-speed harshness

• Maintenance budget and fluid requirements

• Use case, such as commuting, towing, track driving, or trail work

Matching Differential Choice to Drivetrain Layout

Front-wheel-drive performance builds often benefit from a helical or clutch-type LSD because those designs improve traction without the road manners of a full locker. Rear-wheel-drive builds may choose either an LSD or a locker depending on whether the vehicle spends more time on pavement or off-road. AWD systems require a whole-system view because front, rear, and center behavior all interact.

Upgrade Costs, Installation Risks, and Total Cost of Ownership

The part price is only one portion of the bill. A differential upgrade often becomes expensive because setup quality matters as much as the hardware itself.

Costs That Are Often Missed

• Gear setup labor

• Bearings, races, seals, and shims

• Fresh gear oil and additives

• Axle shaft upgrades for high-torque use

• Air lines, compressors, or wiring for selectable lockers

• Programming or recalibration for active systems

Why Setup Quality Matters

Pinion depth, bearing preload, gear pattern, and backlash must be set correctly. Small errors can create immediate whine, excess heat, poor lubrication, and rapid wear. A cheap part with poor setup often fails sooner than a better part installed correctly.

When a Complete Assembly Makes More Sense Than a Gear Swap

• The housing is cracked or bent.

• The case is damaged.

• Metal contamination has spread through the unit.

• Repeated bearing failure suggests wider internal damage.

• Downtime matters more than rebuilding each internal part.

Warranty and Reliability Considerations

Aftermarket upgrades can affect factory warranty coverage, especially when they increase shock load on axle shafts, bearings, or electronic control systems. Even on older vehicles, reliability depends on choosing a differential that matches tire grip, engine torque, and intended use. An aggressive locker in a daily-driven road car may create more compromise than benefit.

Differential Fluid, Service Intervals, and Preventive Maintenance

Differential oil does more than reduce friction. It carries heat away from the gear mesh, protects bearings, and cushions heavily loaded contact areas. Once fluid breaks down or leaks out, wear accelerates quickly.

Typical Service Triggers

• Manufacturer mileage or time interval

• Heavy towing or repeated high-load work

• Water crossings or mud contamination

• Track driving or repeated heat cycles

• Visible leaks or a strong sulfur smell

Fluid Choice by Differential Type

Common Maintenance Mistakes

• Ignoring small leaks at axle seals or the pinion seal

• Using fluid that does not match the required spec

• Delaying service after water contamination

• Assuming every limited-slip unit needs the same additive package

• Forgetting that some transaxles and rear axles have different service procedures

What Wrong or Old Fluid Can Feel Like

Low-speed shudder, chatter in tight turns, whining under load, burnt smell, or dark metallic fluid all suggest the lubricant is no longer protecting the gears properly. Those symptoms do not prove catastrophic failure by themselves, but they justify inspection and fluid verification before more serious damage develops.

Diagnostics: Signs of Differential Wear and Failure

Symptoms often appear gradually. The earlier they are identified, the better the chance of limiting repair cost.

Noise-Based Clues

• Whine on acceleration: Often linked to ring-and-pinion wear, gear pattern error, or pinion-bearing problems.

• Whine on deceleration: Can point to preload loss or a different contact pattern issue.

• Grinding or crunching: Possible broken teeth or severe internal damage.

• Clunk on takeoff: May suggest excess backlash, worn mounts, damaged spider gears, or loose internal parts.

Feel-Based Clues

• Shudder in turns: Possible clutch-pack wear, wrong fluid, or damaged internal gears.

• Hop or skip at low speed: Common with lockers on dry pavement or contaminated LSD fluid.

• Steering resistance in 4WD on pavement: Strong sign of driveline binding.

• Vibration under load: Can involve bearings, gear damage, or related driveline components.

Leak, Smell, and Heat Clues

• Oil around the housing, cover, pinion area, or axle ends indicates a seal or gasket problem.

• A sulfur smell often points to leaking or overheated gear oil.

• Burnt, blackened fluid with metal debris suggests wear that should not be ignored.

• Excessive heat after a short drive can indicate poor lubrication or misadjusted internals.

Symptom-to-Component Mapping

Repair Versus Replace

A rebuild is often reasonable when the housing is sound and damage is limited to bearings, seals, or serviceable internal gears. Replacement of the full unit makes more sense when the case or housing is cracked, ring-and-pinion damage is extensive, or contamination has spread through the assembly. If severe noise, active leakage, or binding is present, limiting vehicle use is the safer choice until inspection is completed.

Conclusion

The differential is a core traction and durability component, not just a set of gears hidden in the axle. It allows normal cornering, shapes how power reaches the road, and strongly affects both repair cost and vehicle behavior. Open differentials remain effective for ordinary road use, LSDs improve traction with fewer compromises than lockers, and locking or torque-vectoring systems serve more specialized goals.

• Check the housing, axle seals, and pinion area for leaks during routine underbody inspection.

• Confirm the correct fluid specification before any service, especially on LSD or active systems.

• Investigate whine, clunk, sulfur smell, or turn-related shudder before wear spreads through the driveline.

• Compare rebuild cost with a complete assembly when the case, housing, or gearset shows major damage.

FAQ

Q: What is a differential in a car, in simple terms?

A: It is the gearset that lets two driven wheels rotate at different speeds while both still receive engine torque. That function is necessary in every turn because the outside wheel travels farther than the inside wheel.

Q: Where is the differential located in FWD, RWD, AWD, and 4WD vehicles?

A: In FWD vehicles, it is usually inside the transaxle. In RWD vehicles, it is usually in the rear axle housing. AWD and 4WD vehicles generally use front and rear differentials, plus either a center differential, center coupling, or transfer case depending on design.

Q: How many differentials does a vehicle usually have?

A: Most FWD and RWD vehicles have one. AWD and 4WD vehicles usually have two or three, depending on whether they use a true center differential or another front-to-rear torque management system.

Q: What is the difference between an open differential, an LSD, and a locker?

A: An open differential allows free wheel-speed difference but is limited by the wheel with less grip. An LSD resists excessive speed difference to improve traction. A locker mechanically ties both axle shafts together for maximum traction on loose or uneven surfaces.

Q: What is included in a differential assembly?

A: It may include the carrier or housing, ring and pinion gears, spider and side gears, bearings, seals, and sometimes axle stubs or actuator-related hardware. Contents vary by manufacturer and listing.

Q: How often should differential fluid be changed?

A: The correct interval depends on the manufacturer and the use case. Heavy towing, water exposure, track driving, and off-road work usually require shorter service intervals than normal highway driving. Fluid should also be checked when leaks or noise appear.
