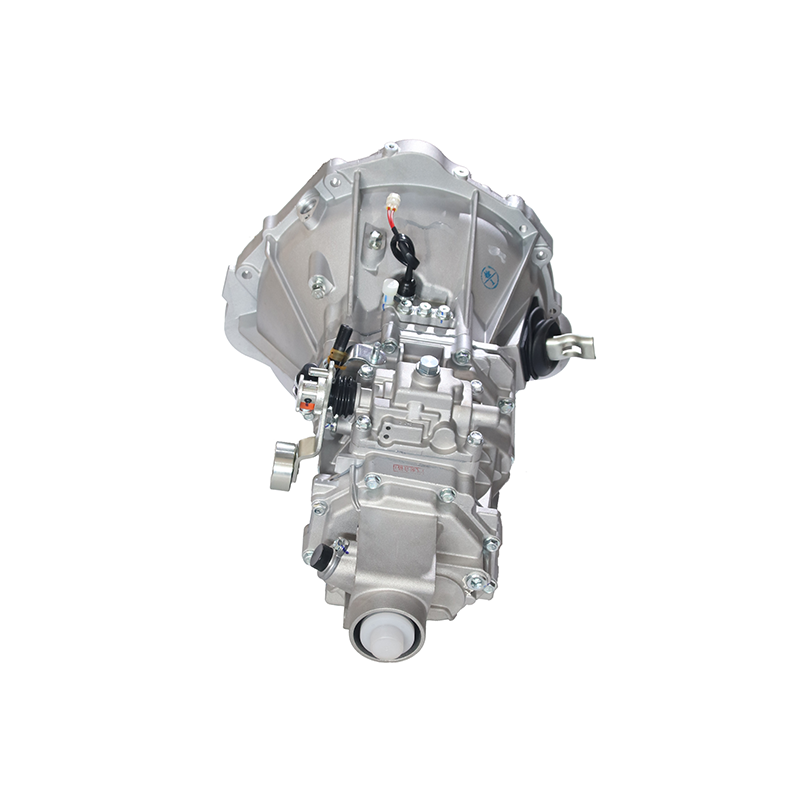

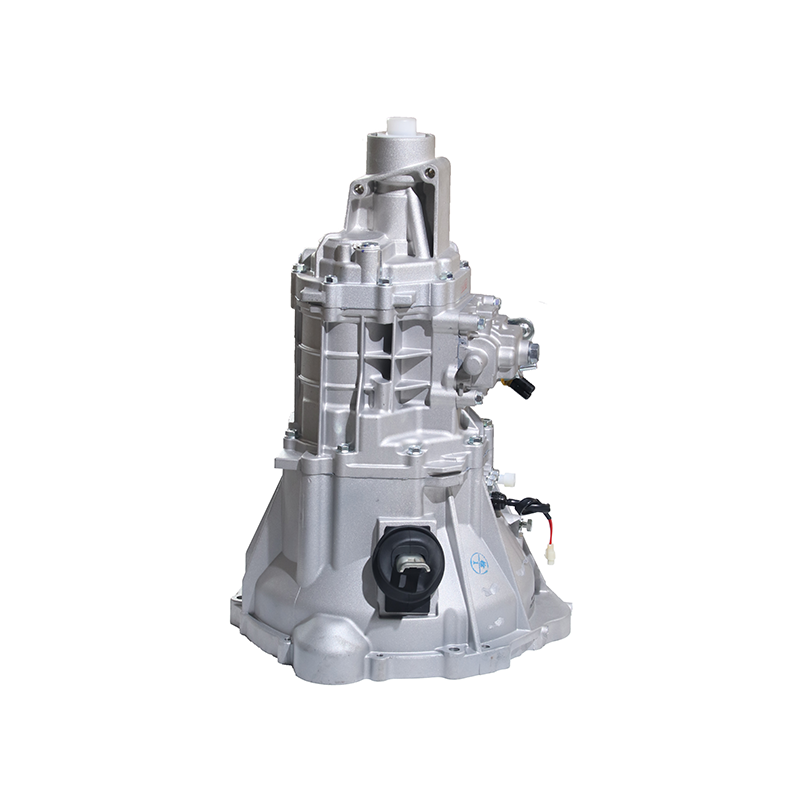

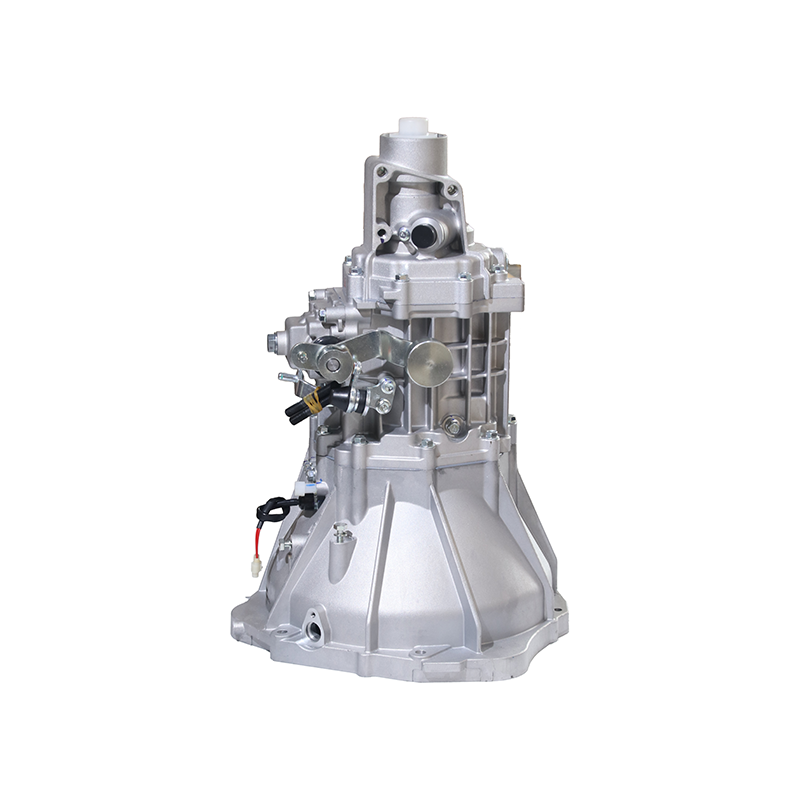

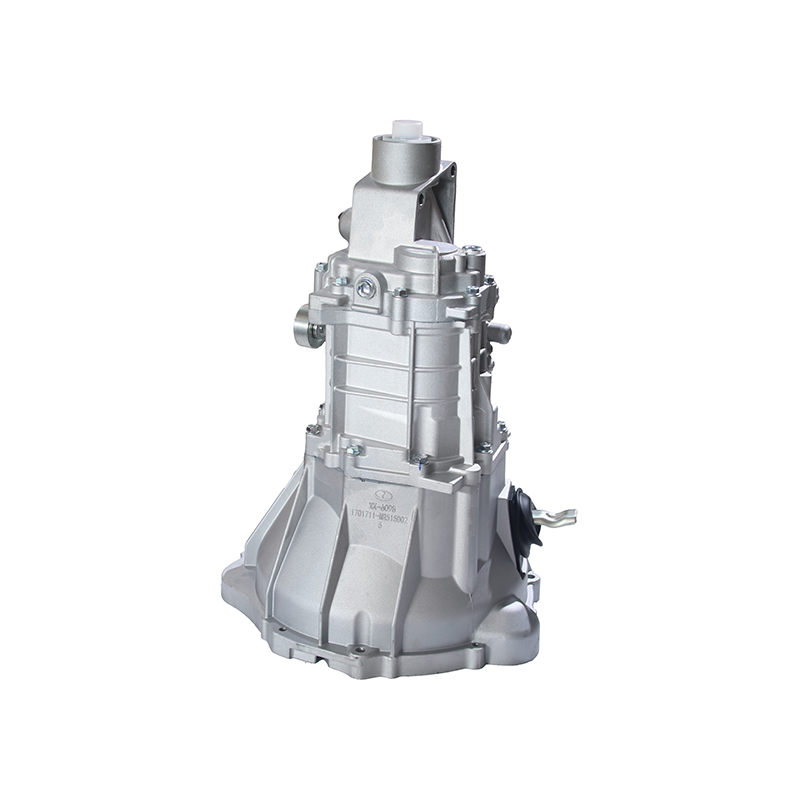

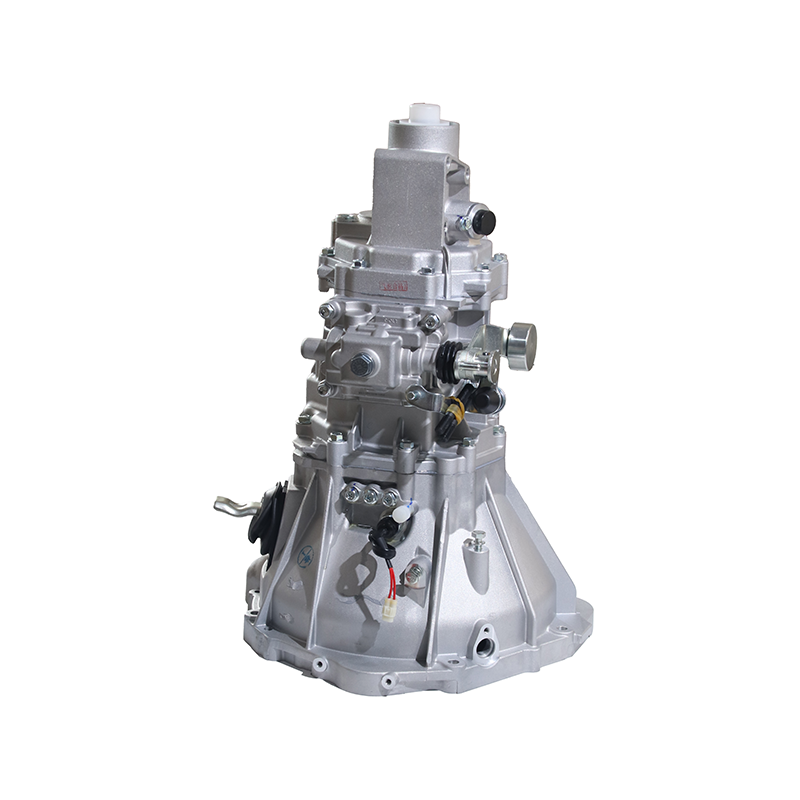

Transmission gearbox

• Multiple Quality Grades: Our Transmission Gearbox is available in three quality options—refurbished, remanufactured, and brand new—catering to different budget and performance requirements, while ensuring consistent reliability across all grades.

• 12-Month Quality Guarantee: We provide a 12-month quality warranty from the date of customer receipt, covering manufacturing defects for all Transmission Gearbox grades, giving you peace of mind for your purchase.

• Flexible Order Options: Small-batch orders are warmly accepted (retail orders excluded), ideal for distributors, automotive repair shops, fleet operators, and specialized vehicle businesses.

  Secure & Customizable Packaging: The Transmission Gearbox is packaged in sturdy wooden crates to ensure safe transportation and prevent damage during transit. The packaging is laser-compatible, supporting custom branding or labeling as needed.

1. Commercial Vehicles & Light Trucks

Our Transmission Gearbox is widely used in commercial vehicles and light trucks, where high reliability, low-cost maintenance, and precise control under specific working conditions are essential. Manual Transmission Gearboxes remain the preferred choice in this sector for several key reasons:

• Cost Control: Manual Transmission Gearboxes feature a simple structure, lower manufacturing costs, and more affordable repair and maintenance, making them ideal for price-sensitive operational fleets and commercial businesses.

• Durability & Controllability: During heavy-load starts, low-speed climbing, or rough terrain navigation, drivers can manually select gears to better control torque output, avoiding frequent shifting or overheating issues commonly associated with automatic transmission gearboxes.

• Regional Habits: In developing countries and parts of Europe, manual Transmission Gearboxes remain prevalent in light commercial vehicles (vans) and pickup trucks, aligning with local driving preferences and operational needs.

Typical Models:

• Ford Ranger / Toyota Hilux: Base models or "work truck" versions in markets like Southeast Asia, Australia, and South America often come equipped with our manual Transmission Gearbox.

• Light Vans/Trucks: Base versions of models such as the Ford Transit or Mercedes-Benz Sprinter rely on our reliable manual Transmission Gearbox for daily commercial operations.

2. Hardcore Off-Road Vehicles

Our Transmission Gearbox is specially engineered for hardcore off-road vehicles, where precision control and durability are critical in extreme environments. Key advantages for off-road use include:

• Precision Control: In extreme off-road scenarios (e.g., rock crawling, vehicle recovery), drivers require precise control over wheel speed and torque. Our manual Transmission Gearbox allows for direct driver intervention, preventing the transmission logic from misjudging off-road conditions and ensuring optimal traction and control.

1. Product Specifications

1.1 Performance Parameters

• Max Input Torque:

Range: Typically from 150 Nm (for compact cars) to 600+ Nm (for high-performance vehicles and light commercial vehicles).

Safety Factor: Designed to withstand instantaneous shock loads of 1.5x – 2.0x the rated torque without permanent deformation, ensuring durability under extreme conditions.

• Gear Count:

Mainstream Passenger Cars: 5-speed or 6-speed Transmission Gearbox.

High-Performance/Commercial Vehicles: 7-speed or more (less common, typically designed for specific heavy-duty or supercar applications).

Reverse Gear: 1 (typically a non-synchronized spur gear or helical gear).

• Ratio Spread:

1st Gear Ratio: 3.5 – 4.5 (provides ample starting torque for heavy loads or steep climbs).

Top Gear Ratio: 0.70 – 0.85 (Overdrive ratio, optimized for fuel-efficient highway cruising).

Total Ratio Spread: 4.5 – 6.0.

• Shift Effort:

Static Shift Force: < 40 – 60 N (varies by gear and operating temperature).

Dynamic Shift Force: Must be smooth under rated RPM with no binding or resistance.

• Efficiency:

Mechanical Efficiency: 96% – 98% (higher than automatic transmission gearboxes, due to the absence of torque converter slip and high-pressure oil pump losses).

• NVH Characteristics:

Gear Whine Noise: &lt; 75 dB(A) @ rated speed and load, ensuring quiet operation.

Shift Shock Noise: Must meet the overall vehicle NVH (Noise, Vibration, Harshness) targets for a comfortable driving experience.

1.2 Structure & Materials

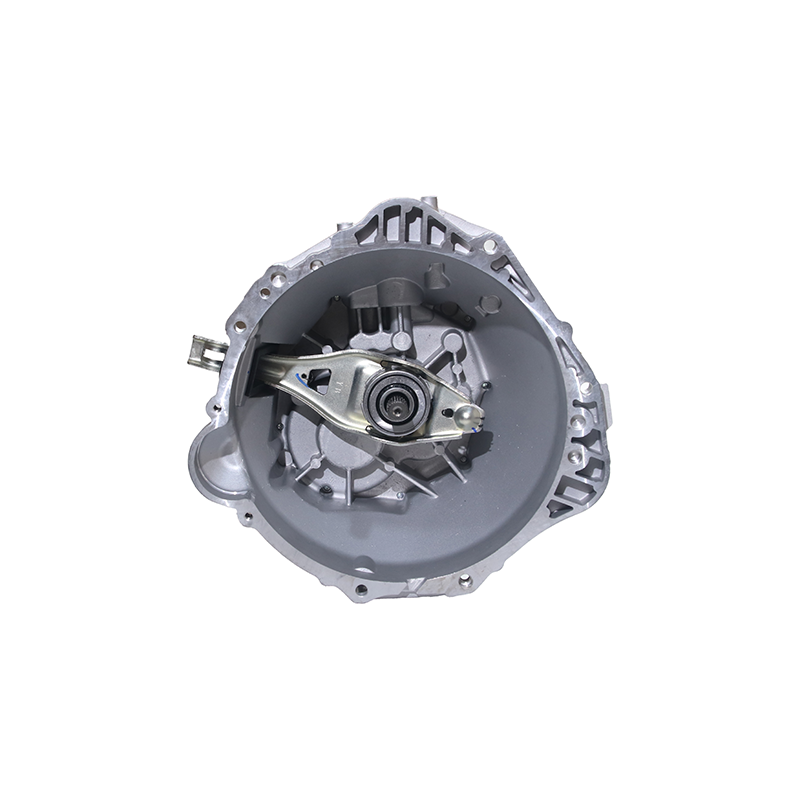

• Housing:

Material: Primarily Die-cast Aluminum Alloy (e.g., A380, ADC12); some heavy-duty Transmission Gearbox models use Cast Iron for enhanced strength.

Features: High rigidity to resist separation forces generated by gear meshing; optimized fin design for efficient heat dissipation, preventing overheating during prolonged use.

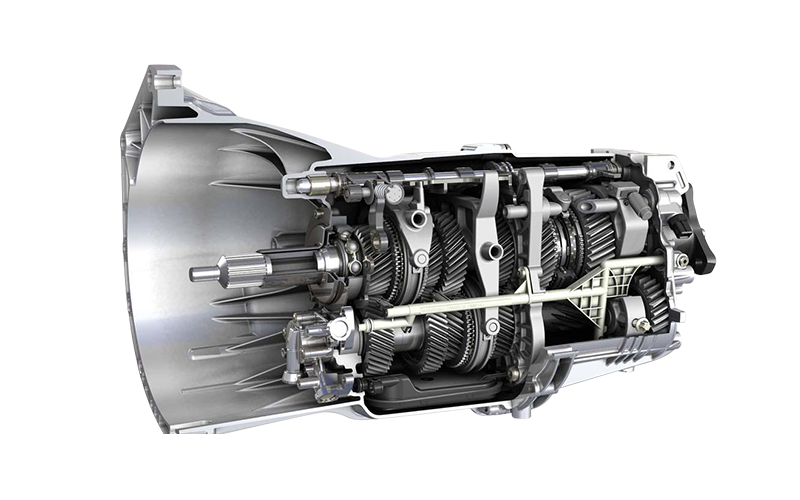

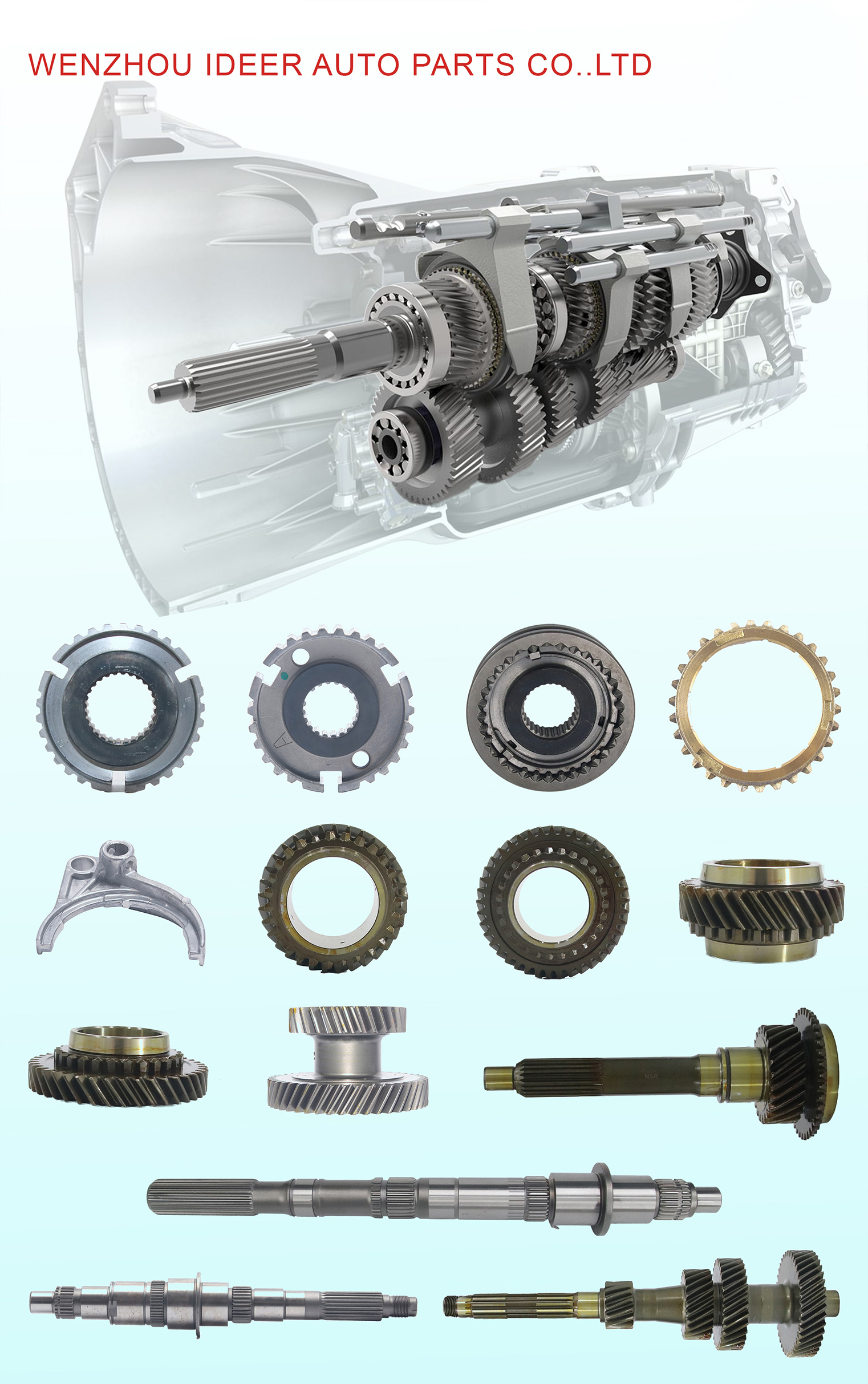

• Gear Set:

Material: Carburized alloy steel (e.g., 20MnCr5, 18CrNiMo7-6), ensuring high strength and wear resistance.

Process: Hardened tooth surface grinding or honing; precision grade ISO 6-7 for smooth meshing and low noise.

Type: Constant Mesh Helical Gears, delivering quiet operation and reliable power transfer.

• Synchronizers:

Type: Single-cone, Double-cone, or Triple-cone (used for 1st/2nd gears or high-performance Transmission Gearbox applications).

Friction Material: Brass/Bronze, Sintered Metal, or Carbon-fiber composites (for high-performance models, offering enhanced durability).

Lock-up Angle: Precisely designed to prevent forced engagement before synchronization, protecting gear teeth from damage.

• Bearings:

Types: Deep groove ball bearings, Tapered roller bearings, Needle roller bearings, selected based on load requirements.

Life: Design life typically matches the vehicle’s service life (>300,000 km or 5,000 hours), ensuring long-term reliability.

• Shift Mechanism:

Type: Cable-operated or Rod-operated, depending on vehicle design.

Selection/Engagement Precision: Equipped with an interlock system to prevent accidental gear engagement, ensuring safe and precise shifting.

1.3 Lubrication & Sealing

• Oil Capacity: 1.5 – 3.0 Liters (varies by Transmission Gearbox model and size).

• Oil Specifications:

API GL-4 (Most common, specifically formulated to protect synchronizers and reduce wear).

API GL-5 (Only for specific Transmission Gearbox designs; caution is required due to sulfur content that may be corrosive to synchronizers).

Viscosity: Typically 75W-80 or 75W-90 (Fully Synthetic), ensuring optimal lubrication in a wide range of temperatures.

• Sealing:

Input/Output Shaft Seals: Fluoroelastomer (FKM/Viton) seals, designed to withstand high temperatures and resist oil corrosion, preventing leaks.

Breather Valve: Prevents internal pressure buildup (which can cause leaks) while keeping out water, dust, and other contaminants.

2. Additional Notes

• Quality Grade Details:

Refurbished Transmission Gearbox: Restored to functional condition, with worn components replaced, suitable for budget-conscious applications.

Remanufactured Transmission Gearbox: Fully disassembled, inspected, and rebuilt with new or upgraded components, meeting OE performance standards.

Brand New Transmission Gearbox: Built from scratch with new components, delivering the highest level of performance and durability.

• Installation Guidelines:

Always follow the vehicle manufacturer’s installation instructions for the Transmission Gearbox, including torque specifications and alignment requirements, to ensure optimal performance and longevity.

• Lubrication Maintenance:

Regularly check and replace the transmission oil according to the recommended service interval, using only the specified oil grade to protect internal components and prevent premature failure.

• Packaging Notes:

The wooden crate packaging is designed for heavy-duty transportation; for international shipping, additional protective measures can be arranged upon request.

• Warranty Limitations:

The 12-month warranty does not cover damage caused by improper installation, misuse, lack of maintenance, or unauthorized modifications to the Transmission Gearbox.

When selecting a Transmission Gearbox for commercial vehicles, light trucks, or hardcore off-road vehicles, our product stands out as the trusted choice—backed by quality, flexibility, and reliability. Here’s why you should choose us:

• Multiple Quality Options: We offer refurbished, remanufactured, and brand new Transmission Gearbox grades, allowing you to choose the perfect balance of performance and budget for your specific needs.

• Proven Durability: Engineered with high-grade materials (carburized alloy steel, die-cast aluminum) and precision manufacturing processes, our Transmission Gearbox is built to withstand heavy loads, extreme off-road conditions, and prolonged commercial use—delivering long service life.

• Tailored for Key Applications: Our Transmission Gearbox is specifically optimized for commercial vehicles, light trucks, and hardcore off-road vehicles, ensuring compatibility with popular models like Ford Ranger, Toyota Hilux, Ford Transit, and Mercedes-Benz Sprinter.

• Flexible Order & Packaging: We accept small-batch orders (excluding retail) and provide secure wooden crate packaging that is laser-compatible for custom branding, catering to the needs of distributors, repair shops, and fleet operators.

• 12-Month Quality Guarantee: Our 12-month warranty covers all quality grades, providing peace of mind and ensuring your investment is protected against manufacturing defects.

• High Efficiency & Performance: With a mechanical efficiency of 96% – 98%, our Transmission Gearbox optimizes fuel economy and engine performance, reducing operational costs for commercial fleets.

• Expert Support: Our team of automotive experts provides responsive technical support, helping you select the right Transmission Gearbox grade and model for your application, and assisting with installation and maintenance guidance.
