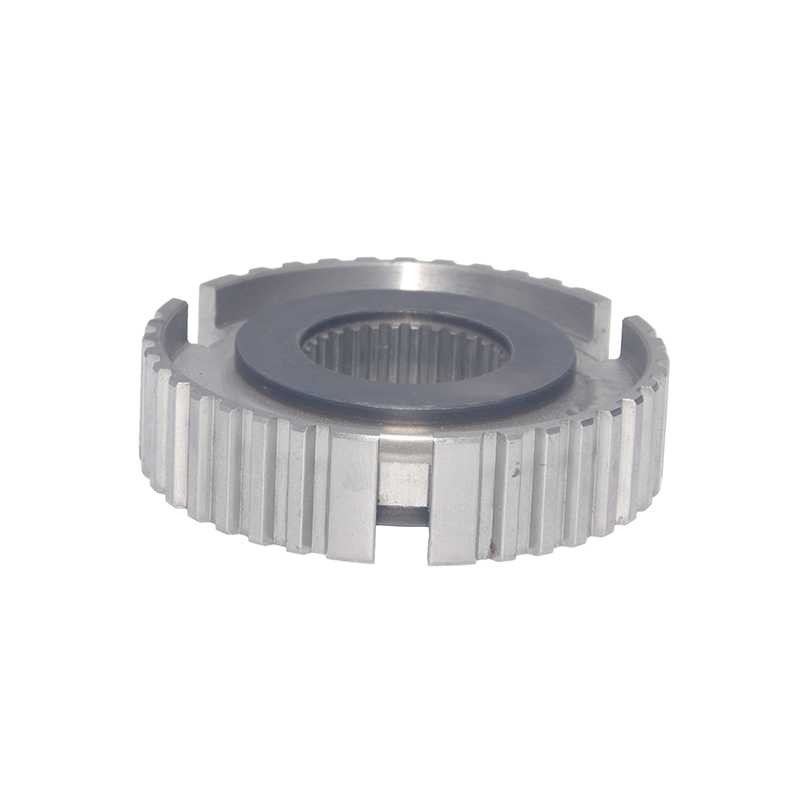

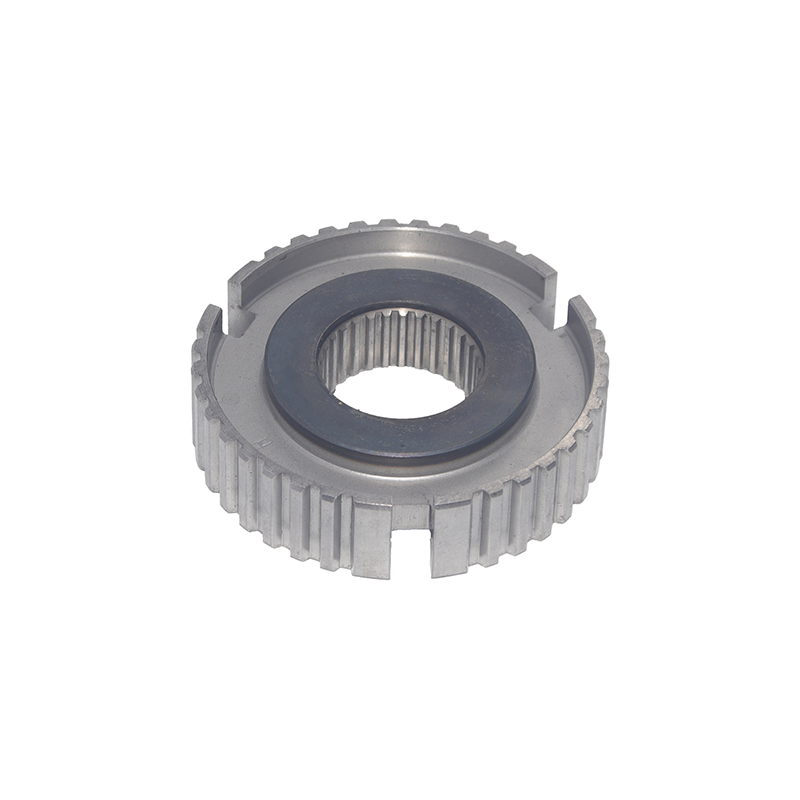

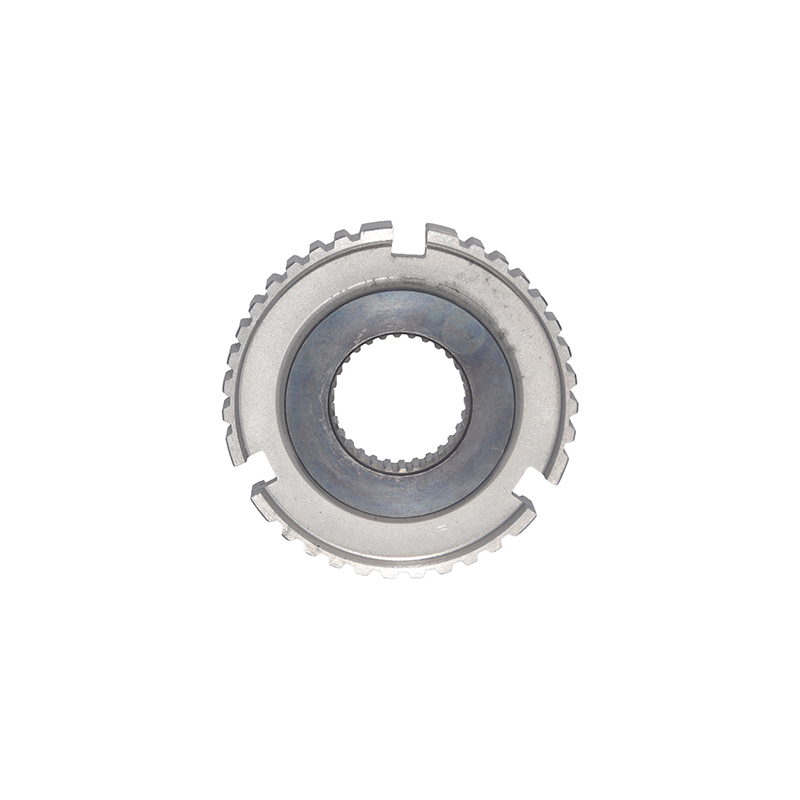

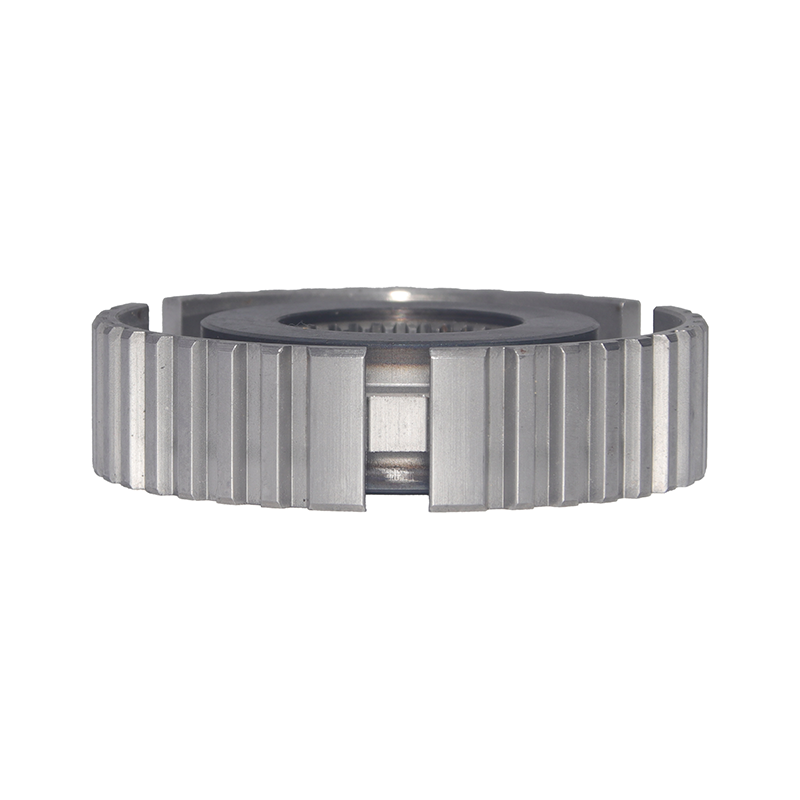

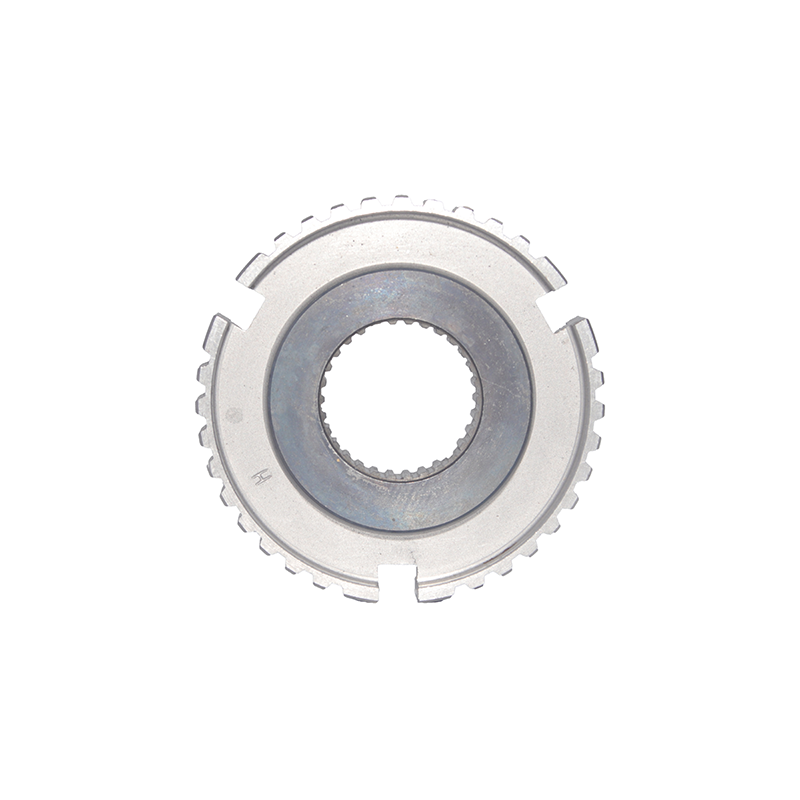

No.1 Hub Transmission Clutch

• OE-Spec Precision Manufacturing: Produced strictly according to original vehicle dimensions and specifications, ensuring a perfect fit and seamless replacement of original transmission clutch hub parts—no modifications required.

• 12-Month Quality Guarantee: Backed by a 12-month quality warranty from the date of customer receipt, providing peace of mind and protection against manufacturing defects.

• Flexible Order Options: Accepts small-batch orders (retail orders excluded), catering to the needs of repair shops, distributors, and automotive businesses of all sizes.

• Specialized for Japanese & Korean Models: Focused on transmission clutch hubs for popular Japanese and Korean vehicles, including Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, and more—ensuring broad compatibility and market relevance.

• Customizable Packaging: Offers customizable packaging solutions to meet brand requirements, enhancing product presentation and marketability for distributors and retailers.

Our No.1 Transmission Clutch Hub is designed for integration into the transmission systems of Japanese and Korean passenger cars, light commercial vehicles, and utility vehicles. Its application spans across various transmission types, working in conjunction with key transmission components to enable reliable power transfer and gear operation. Below are the key application scenarios tied to the transmission’s core mechanisms, where our clutch hub plays a vital role:

I. Constant Mesh Gear Sets (Helical Gears)

• Application: All forward gears (1st gear to top gear) in manual transmissions. Our transmission clutch hub works with helical gear sets to ensure smooth power transmission during forward motion.

• Working Principle: In manual transmissions, all forward gear pairs remain in constant mesh while the vehicle is in motion—meaning the gears on the shafts are always rotating. However, power is only transmitted to the output shaft when the driver engages the specific gear, with the clutch hub facilitating this engagement and power transfer.

II. Shifting Engagement Mechanism (Dog Teeth / Synchronizer Sleeves)

• Application: Used to lock freewheeling gears to the output shaft, enabling power transmission during gear shifts. Our clutch hub integrates with dog teeth and synchronizer sleeves to ensure precise, reliable engagement.

• Working Principle: While main gears are helical and constantly meshing, power transmission is achieved via the synchronizer. The synchronizer (paired with our clutch hub) uses friction cones to match gear speed with shaft speed, then the sleeve slides forward to engage dog teeth on the gear—locking the gear to the shaft and initiating power transfer.

III. Reverse Gear (Spur Gears)

• Application: Reverse gear operation in most traditional manual transmissions. Our clutch hub supports the engagement of spur gear idlers, which enable reverse motion.

• Working Principle: Reverse gear is achieved by inserting an idler spur gear between two constant mesh gears. Our clutch hub ensures the smooth engagement and disengagement of this idler gear, facilitating safe and reliable reverse motion.

• Standard Material

High-quality case-hardening alloy steels, the industry standard for transmission clutch hubs, ensuring optimal strength, toughness, and wear resistance.

• Common Material Grades

SAE/AISI: 8620, 9310, 4320, 4140

DIN/EN: 18CrNiMo7-6 (1.6587), 20MnCr5 (1.7147)

JIS: SCM420, SNCM220

• Key Material Properties

High core toughness to withstand shock loads and a hard surface to resist wear, pitting, and mechanical fatigue—critical for long-term transmission performance.

• Heat Treatment Process

Process: Carburizing or Carbonitriding followed by quenching and tempering, ensuring uniform hardness and structural integrity.

Surface Hardness: Typically 58 – 64 HRC (Rockwell C) to maximize wear resistance and durability.

Core Hardness: Typically 30 – 45 HRC to maintain ductility and prevent brittle fracture under impact loads.

Case Depth: 0.6 – 1.2 mm (effective case depth), adjusted based on gear module and application load requirements.

• Additional Notes

Modern high-end manual transmissions may use helical gears with synchronizers for reverse to eliminate noise, but the spur gear idler solution (supported by our clutch hub) remains common in commercial vehicles and economy cars. Our transmission clutch hub is compatible with both traditional and modern transmission designs for Japanese and Korean models.

When it comes to replacement transmission clutch hubs for Japanese and Korean vehicles, we stand out as a trusted partner for automotive businesses, repair shops, and distributors—here’s why:

• OE-Grade Reliability: Our clutch hubs are manufactured to match OE dimensions and quality standards, ensuring a perfect fit, seamless replacement, and consistent performance that mirrors original parts. This eliminates the risk of misalignment, premature wear, or transmission failure.

• Specialized Expertise: We focus exclusively on Japanese and Korean vehicle models, giving us deep insights into the unique transmission requirements of Toyota, Mazda, Isuzu, Mitsubishi, Hyundai, Kia, and other popular brands. This specialization ensures our products are tailored to the specific needs of these vehicles, delivering superior compatibility and performance.

• Durable Construction: Crafted from high-grade case-hardening alloys and treated with precision heat processes, our clutch hubs are built to withstand extreme stress, heavy loads, and daily wear—ensuring long service life and reducing replacement frequency for end-users.

• Flexible & Customer-Centric Service: We accept small-batch orders (excluding retail) to support businesses of all sizes, and offer customizable packaging to align with your brand. Our 12-month quality guarantee provides added assurance, and our team is dedicated to delivering responsive support for all order and product-related needs.

• Cost-Effective Solution: Our products balance premium quality with competitive pricing, offering excellent value for money. By choosing our transmission clutch hub, you get a reliable, long-lasting part that reduces downtime and repair costs for your customers.
