How Does a Car Differential Work? Functions and Working Principles

A car differential works by transmitting engine or motor torque to two drive wheels while allowing those wheels to rotate at different speeds. That speed difference is essential in a turn because the outside wheel travels a longer path than the inside wheel. Without a differential, the axle would bind, tires would scrub, heat would rise, and parts would wear quickly. In most vehicles, the differential also contains the final drive reduction, so it affects launch feel, towing behavior, efficiency, and noise.

This guide explains how a Differential works, why one car differential design may suit a platform better than another, and what engineers and procurement teams should verify when selecting an automotive differential. It also outlines the sourcing controls that matter when evaluating a differential supplier china or a differential manufacturer china for production programs.

Key Takeaways

• A differential solves a non-negotiable physics problem: Left and right drive wheels must rotate at different speeds during cornering.

• The best differential is application-specific: Open, limited-slip, locking, center, and torque-vectoring designs each optimize a different mix of cost, traction, control, and serviceability.

• Real performance depends on more than gear geometry: Bearing preload, backlash, lubrication, heat treatment, sealing, and housing stiffness directly affect durability and NVH.

• Vehicle architecture changes the requirement: FWD transaxles, RWD axles, AWD systems, and EV platforms place different demands on the automotive differential.

• Supplier quality drives lifecycle cost: For volume programs, PPAP discipline, IATF 16949 compliance, heat-treatment control, traceability, and end-of-line testing matter as much as quoted unit price.

The Core Function: Why Every Vehicle Requires a Differential

The differential exists because cornering creates different wheel path lengths on the same axle. The outer tire follows a larger radius, so it must rotate faster. If both axle shafts were locked together on dry pavement, one tire would need to slip to relieve the mismatch. That slip wastes energy and raises stress throughout the driveline.

In rear-wheel-drive layouts, the unit also redirects torque by roughly 90 degrees from the driveshaft to the axle shafts. In front-wheel-drive transaxles, the differential is packaged with the transmission and final drive, but the mechanical purpose stays the same: deliver torque while allowing controlled speed difference.

The functional benefit can be shown with a simple cornering example:

• The vehicle enters a turn.

• The outer wheel travels a longer arc than the inner wheel.

• The ring gear turns the differential case.

• The spider gears allow relative motion between the side gears.

• The outer wheel speeds up while the inner wheel slows slightly.

• Torque continues to flow to both axle shafts.

Without this mechanism, the vehicle experiences several predictable problems:

• Tire scrub and rapid tread wear

• Axle wind-up and driveline bind

• Higher bearing and gear temperatures

• Reduced steering precision in low-speed turns

• Increased noise, vibration, and harshness

• Elevated warranty risk under fleet or towing duty

For engineers, the differential is not a minor add-on. It influences traction complaints, axle noise, efficiency, launch performance, and long-term durability. For buyers, it affects total cost of ownership because poor design or poor process control usually appears later as leaks, whine, premature wear, or inconsistent field performance.

Where the Differential Sits in the Vehicle

Front, Rear, and Center Differential Layouts

Vehicle architecture determines how many differentials are needed and where they sit. A basic front-wheel-drive passenger car usually has one front differential inside the transaxle. A basic rear-wheel-drive truck usually has one rear differential inside the drive axle housing. Full-time all-wheel-drive systems may use three: front, rear, and center.

The center differential is important because the front and rear axles also travel different paths in a turn. Without that center speed differentiation, the whole driveline would bind on high-grip pavement. Part-time 4WD systems often replace the center differential with a transfer case that locks front and rear outputs together. That arrangement is suitable on loose surfaces, but not on dry pavement, because slip is needed to release the speed mismatch.

Differential vs. Transaxle

A transaxle combines the gearbox, final drive, and differential in one housing. That approach shortens the power path, saves packaging space, and lowers mass for FWD vehicles. It also simplifies assembly and can reduce cost at high volume.

A standalone rear axle differential is more common in RWD applications. The transmission is separate, a prop shaft carries torque rearward, and the axle assembly contains the final drive and differential. This layout often supports higher towing loads, stronger axle shafts, and easier ratio changes in truck programs. The trade-off is extra packaging length and additional rotating components.

ICE, Hybrid, and EV Packaging Differences

Internal-combustion, hybrid, and electric platforms place different demands on the differential. ICE systems often tolerate some background gear noise because combustion and exhaust sounds mask it. EVs do not. A small tooth error, bearing issue, or housing resonance that passes in an ICE platform may be obvious in an EV cabin.

Single-motor EVs usually retain a conventional differential integrated with a reduction gearset. Dual-motor systems can reduce or eliminate the need for a traditional left-right differential by controlling torque independently through software. Even then, the system still needs to manage wheel speed differences, only the method changes from pure gearing to control logic.

Internal Mechanics: How an Automotive Differential Works

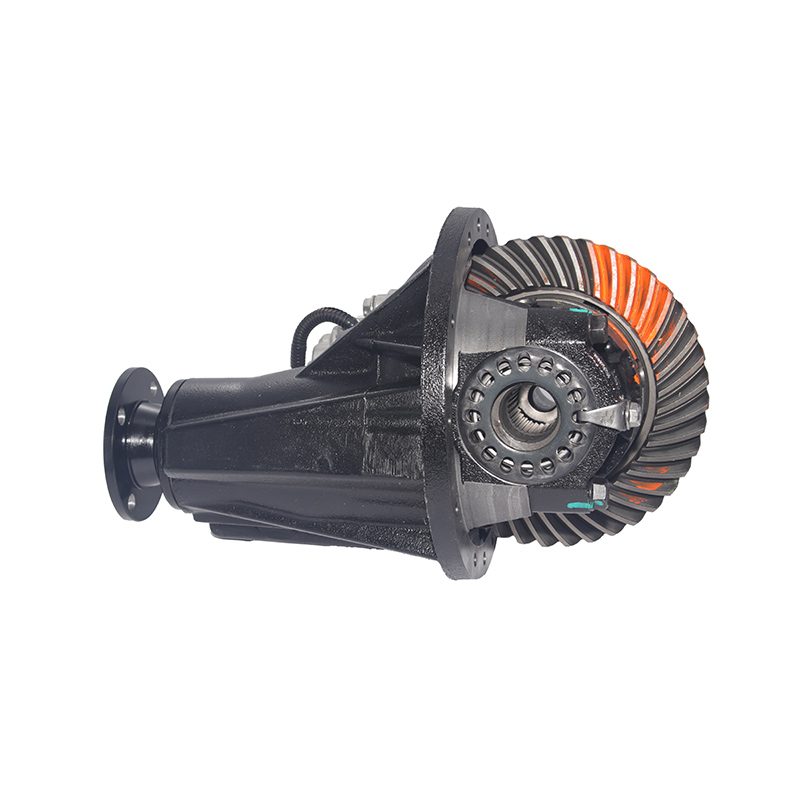

Pinion Gear, Ring Gear, and Spider Gears Explained

In a typical bevel-gear differential, torque enters through the pinion gear. The pinion drives the larger ring gear, which is bolted to the differential case or carrier. Inside that case are the spider gears, mounted on a cross-pin, and two side gears that connect to the axle shafts.

Each component has a specific role:

• Pinion gear: Transfers rotation from the driveshaft or transmission output into the final drive.

• Ring gear: Provides the main gear reduction and turns the differential case.

• Carrier: Holds the internal gears and rotates with the ring gear.

• Spider gears: Allow relative speed difference between left and right wheels.

• Side gears: Engage the axle shafts and transmit torque to each wheel.

• Bearings and shims: Control preload, alignment, and backlash.

Precision matters. Pinion depth, ring gear runout, tooth finish, and backlash directly influence contact pattern, efficiency, and noise. A good design can still fail if assembly control is poor.

Power Flow: From Driveshaft to Axles

The power path is straightforward, but the behavior changes with driving conditions.

• Driveshaft or gearbox output rotates the pinion gear.

• The pinion gear turns the ring gear.

• The ring gear rotates the carrier.

• The carrier moves the spider gears.

• The spider gears act on the side gears.

• The side gears drive the left and right axle shafts.

During straight-line motion, the spider gears do not spin relative to the carrier. They simply orbit with it, so both side gears rotate together. During a turn, the spider gears begin rotating on the cross-pin. That internal motion lets one axle shaft turn faster than the other while torque continues to pass through the gearset.

Straight-Line Driving vs. Cornering vs. Low-Traction Conditions

The same assembly behaves differently depending on grip and wheel speed demand.

The low-traction case causes the most confusion. An open differential does not direct extra torque to the wheel with better grip. It allows equal torque to both sides, but the maximum usable torque is capped by the side with the least resistance. If one tire is on ice, it may spin with very little torque, and the opposite tire only gets that same small amount.

Gear Ratio and Final Drive Fundamentals

The final drive ratio is the ring gear tooth count divided by the pinion tooth count. That ratio shapes how the vehicle launches, climbs grades, tows, and cruises.

Ratio selection should be matched to engine torque curve, motor speed capability, transmission steps, tire rolling radius, gross vehicle weight, and expected duty cycle. An unsuitable ratio can make a vehicle feel weak at launch or inefficient at cruise even when the rest of the driveline is well designed.

How Torque Is Actually Shared: Common Misconceptions

The phrase “50/50 torque split” is often used too loosely. In an open differential, both sides see equal torque, but not equal traction outcome. The side with lower grip determines how much torque can be used before slip starts.

Different wheel speeds in a turn are not a fault. They are the intended result. If wheel speeds remain identical on a tight, dry corner in a driven axle, either the tires are scrubbing or a locking function is active.

Locking the axle improves traction because it forces both shafts to rotate together. That helps in mud, rocks, loose soil, and severe cross-axle situations. The cost is reduced differentiation, higher driveline stress, and poor maneuverability on high-grip surfaces.

Brake-based traction control should also be separated from a true limited-slip unit. Brake intervention can simulate torque transfer by slowing the spinning wheel, but it adds heat to the brakes and may reduce sustained performance. A mechanical or electronically actuated limited-slip device manages torque within the differential itself.

Evaluating Differential Types: Mechanisms, Trade-offs, and Applications

Open Differentials

The open differential remains the volume standard because it is inexpensive, durable, efficient, and easy to package. It works well when traction demands are modest and brake-based traction control is available. For urban passenger cars and many light commercial vehicles, that is often enough.

Limited-Slip Differentials

LSDs reduce excessive wheel-speed difference under load. Clutch-type designs can be tuned for aggressive lock-up, which helps launches and corner exit traction. Helical units are smoother and typically need less service. Viscous types are simple but can fade when heat builds. eLSD systems add control flexibility, but they depend on software quality, sensor inputs, and actuator durability.

Locking Differentials

A locking unit forces both axle shafts to rotate together when engaged. That produces the strongest traction on loose or uneven surfaces. It is valuable in work trucks, off-road vehicles, agricultural equipment, and severe-service programs. The penalty is obvious on dry pavement: steering becomes less compliant, tire wear rises, and axle stress increases.

Center Differentials and Torque Vectoring Systems

Center differentials manage front-rear speed difference in full-time AWD. Torque-vectoring systems go further by actively adjusting left-right or front-rear torque to improve yaw behavior. These systems can improve handling and stability, but they require a strong controls strategy, validated thermal margins, and tight manufacturing variation control.

Application Mapping: Which Differential Fits Which Vehicle?

Passenger Cars and Urban Mobility Platforms

Priority usually goes to low cost, low noise, high reliability, and efficient packaging. Open differentials remain common because they meet those goals with minimal complexity.

Performance Cars and Enthusiast Platforms

These programs value repeatable corner-exit traction and predictable handling balance. Helical LSDs and eLSD systems are common because they improve control without the harshness of a full locker.

SUVs, Pickups, and Light Commercial Vehicles

These platforms often face towing, mixed surfaces, curb impacts, and longer duty cycles. A robust open unit may suit a fleet van, while an LSD or locking rear differential may be justified for pickups, work trucks, and off-road trims.

Heavy-Duty, Agricultural, and Severe-Service Equipment

Housing stiffness, bearing capacity, oil volume, and shock resistance become more important than low mass. Conservative thermal margin and serviceability are often more valuable than peak efficiency.

EV and Hybrid Platforms

These applications demand tight NVH control, excellent efficiency, and tolerance for rapid torque rise. Regenerative braking interaction also matters because torque reversal and control transitions can expose gear rattle, backlash variation, or bearing issues that would be less noticeable in traditional drivetrains.

Engineering Success Criteria: Matching Specs to Vehicle Platforms

Load Capacity and Torque Ratings

Input torque alone is not enough. Engineering teams should account for shock loads, traction events, tire growth, gross vehicle weight, and aggressive control strategies. Instant motor torque in EVs can create short-duration peaks that exceed steady-state values by a wide margin.

Bearing, Backlash, and Contact Pattern Control

Many field failures begin as setup errors, not material failures. Poor bearing preload can overheat components. Incorrect backlash can create whine on coast or drive. A poor contact pattern concentrates stress in a small tooth area and accelerates pitting.

Thermal Management and Lubrication Requirements

Lubricant selection should fit duty cycle, ambient range, seal material, and clutch requirements. Heavy towing, repeated low-speed slip, and long highway operation all raise oil temperature. Some programs need larger oil volume, finned covers, or pumped lubrication.

NVH Standards

Tooth microgeometry, grinding quality, lapping control, and housing stiffness strongly affect noise. EV programs usually require tighter limits because there is little masking noise. End-of-line NVH testing is often worth the cost in premium or sensitive applications.

Sealing and Environmental Durability

Road salt, water crossings, dust, and tropical humidity all change risk. Seal lip design, vent strategy, coating choice, and housing finish should be matched to the real environment, not only a lab standard.

Software and Controls Integration

For eLSD and torque-vectoring programs, hardware selection is only part of the task. The unit must interact correctly with ABS, ESC, traction control, and regenerative braking. Fail-safe strategy is essential. If the actuator or sensor signal is lost, the driveline still needs predictable behavior.

Failure Modes, Maintenance, and Diagnostic Pain Points

Common Causes of Differential Failure

• Low lubricant level or wrong oil specification

• Overheating from sustained load or repeated slip

• Water or debris contamination

• Incorrect preload, backlash, or pinion depth

• Poor heat treatment or material inconsistency

• Shock loading after sudden traction recovery

• Seal failure and long-term lubricant loss

Early Warning Signs in the Field

Whine on acceleration often points to drive-side contact issues. Whine on deceleration may suggest coast-side pattern problems. Clunk on load reversal can indicate excessive clearance. Oil leaks, metal particles in drained lubricant, overheating after towing, and tire scrub in low-speed turns should be investigated quickly.

Serviceability and Maintenance Planning

Maintenance intervals vary by design and duty. Clutch LSDs may need friction-modified oil and closer service intervals than open units. Fleet programs should also consider rebuild kit availability, bearing interchangeability, seal replacement time, and access for routine inspections.

A practical diagnostic sequence is:

• Check oil level, oil condition, and visible leaks.

• Listen for drive, coast, and turning noise differences.

• Inspect for metal debris in lubricant.

• Measure backlash and bearing preload if disassembled.

• Review duty history, towing use, and traction events.

Total Cost of Ownership and Manufacturing ROI

Low piece price does not guarantee low program cost. An under-specced differential may create higher warranty expense, downtime, and customer dissatisfaction. The correct comparison includes:

• Quoted unit price

• Tooling and launch cost

• Validation and testing cost

• Expected maintenance interval

• Scrap and rework risk

• Warranty exposure

• Dealer or fleet service time

Small efficiency gains can also justify better machining or bearing choices. In high-volume ICE fleets, drivetrain losses affect fuel cost every day. In EV programs, even a small reduction in parasitic loss can support range targets or allow recalibration elsewhere.

Sourcing Strategy: Evaluating a Differential Supplier in China

Quality Systems and Process Discipline

Qualification should begin with documented quality systems. IATF 16949 compliance, PPAP capability, traceability, control plans, PFMEA, MSA, SPC, and disciplined change control are basic screening items for serial production.

Material, Heat Treatment, and Gear Manufacturing Control

Raw material consistency, forging or casting quality, and heat-treatment repeatability drive long-term durability. Engineering teams should request hardness depth, core hardness, microstructure data, and process records, not only finished-part dimensional reports. Gear cutting, grinding, and lapping capability should be reviewed together with measurement systems and contact pattern standards.

Validation and Reliability Proof

Bench endurance, overload torque testing, leak testing, thermal cycling, corrosion testing, and run-at-rate evidence help distinguish sample quality from production capability. End-of-line inspection should cover critical dimensions and, when required, NVH performance.

Commercial and Program Management Readiness

Lead time, MOQ flexibility, engineering response speed, tooling ownership, revision control, export packaging, and after-sales support are often as important as machining capability. A technically strong supplier can still create launch risk if program control is weak.

A practical sourcing audit should verify the following in order:

• Certification status and customer program history

• Traceability from raw material to finished gear set

• Heat-treatment control and metallurgical records

• Machining capability and process capability indices

• End-of-line testing, including leak and NVH checks where needed

• Capacity plan for SOP, ramp-up, and service parts

• Corrective action discipline for nonconforming lots

Procurement Decision Matrix: How to Shortlist the Right Differential

A disciplined shortlist removes low-cost options that cannot meet durability, heat, or NVH targets. That step prevents expensive requalification later.

Conclusion

• Define the required torque, ratio, duty cycle, NVH target, and packaging envelope before requesting quotes.

• Match the differential type to the vehicle use case rather than choosing the most complex design available.

• Require PPAP, heat-treatment data, endurance results, and traceability evidence from shortlisted suppliers.

• Validate prototypes on both bench and vehicle tests before final nomination.

FAQ

Q: What is the main function of a differential in a car?

A: It allows the left and right drive wheels to rotate at different speeds while still transmitting torque. That function prevents driveline bind and tire scrub during cornering.

Q: Why does the outside wheel need to rotate faster in a turn?

A: The outside wheel follows a longer path than the inside wheel. To cover that longer distance in the same time, it must rotate faster.

Q: Why can an open differential struggle on ice or mud?

A: An open differential can only transmit as much usable torque as the low-grip wheel can support. If one wheel slips easily, the opposite wheel receives that same limited torque.

Q: What is the difference between a differential and a transaxle?

A: A differential is the gear assembly that splits torque and allows wheel-speed difference. A transaxle combines the transmission, final drive, and differential in one housing.

Q: Which differential type is best for traction?

A: A locking differential delivers the highest traction on loose or uneven surfaces. For mixed road use, a limited-slip differential often provides a better balance of traction, smoothness, and durability.

Q: What should procurement teams verify when sourcing a differential?

A: They should verify IATF 16949 compliance, PPAP discipline, traceability, heat-treatment control, machining capability, endurance testing, leak performance, and launch support for serial production.
